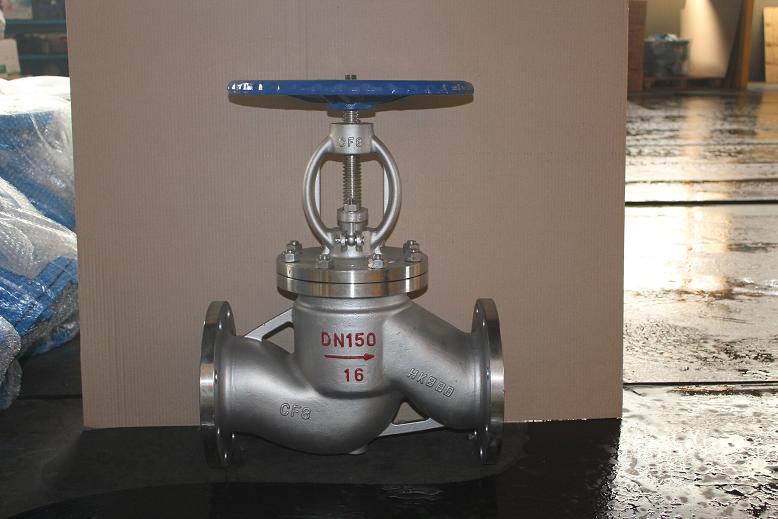

Stainless steel flanged globe valve

Stainless steel flanged globe valve

Stainless steel flanged globe valve
CategoriesGlobe valve
AlbumView larger image
BrandJinbin Valve
ModelJ41H-16C
Standard or NonstandardStandard
StructurePN16 globe valve
PressurePN16/25/40/64
Powercustomized
Materialcarbon steel
Temperature of MediaHigh Temperature
Mediaas your requirement
Port Sizeagainst requirement
PN16 globe valvePN16 globe valve flanged globe valve
FOB portXINGANG PORT
Terms of PaymentL/C, D/A, D/P, T/T
Update Time2018-12-11
Detail Information

Stainless steel flange globe valve


Size: DN:15-250mm

PN:1.6/2.5/4.0Mpa

Suitable medium: anti acid and anti soda3.Suitable Tem.:-10-250 celsius

Size: 2”-32” or DN50-DN1000

Pressure:150LB-2500LB, PN16-PN250 or 10K-40K

Material: WCB, WCC, LCB, LCC, WC6, C5, C12, CF8, CF8M, CF3, CF3M, CF8C, CN7M, etc.

Design & Manufacture Std: API 608, ASME B16.34, API 6D, BS.

Face to Face Std: ASME B16.10(JIS B2003), API 6D, DIN3202, ASME B16.25

End connection Std: ASME B16.5, ASME B16.47, JIS B2214, DIN 2543-2550, ASME B16.34

Test standard: ISO5208, API598(JIS B2003), API 6D, BS 6775

Structure Type: Short pattern, regular Pattern, Venturi Panttern, Full bure Pattern

Operated way: Handwheel, Gear, Pneumatic, Electric Actuator


Working Pressure

10 bar / 16 bar/150lb

Testing Pressure

Shell: 1.5 times rated pressure,

Seat: 1.1 times rated pressure.

Working Temperature

-10°C to 120°C (EPDM)

-10°C to 150°C (PTFE)

Suitable Media

Water, Oil, and gas.



Parts

Materials

Body

cast steel

Disc

Stainless steel, ductile iron

Seat

EPDM / NBR / VITON / PTFE

Stem

Stainless steel,2Cr13

Bushing

PTFE

“O” ring

PTFE

Pin

Stainless steel

Key

Stainless steel
