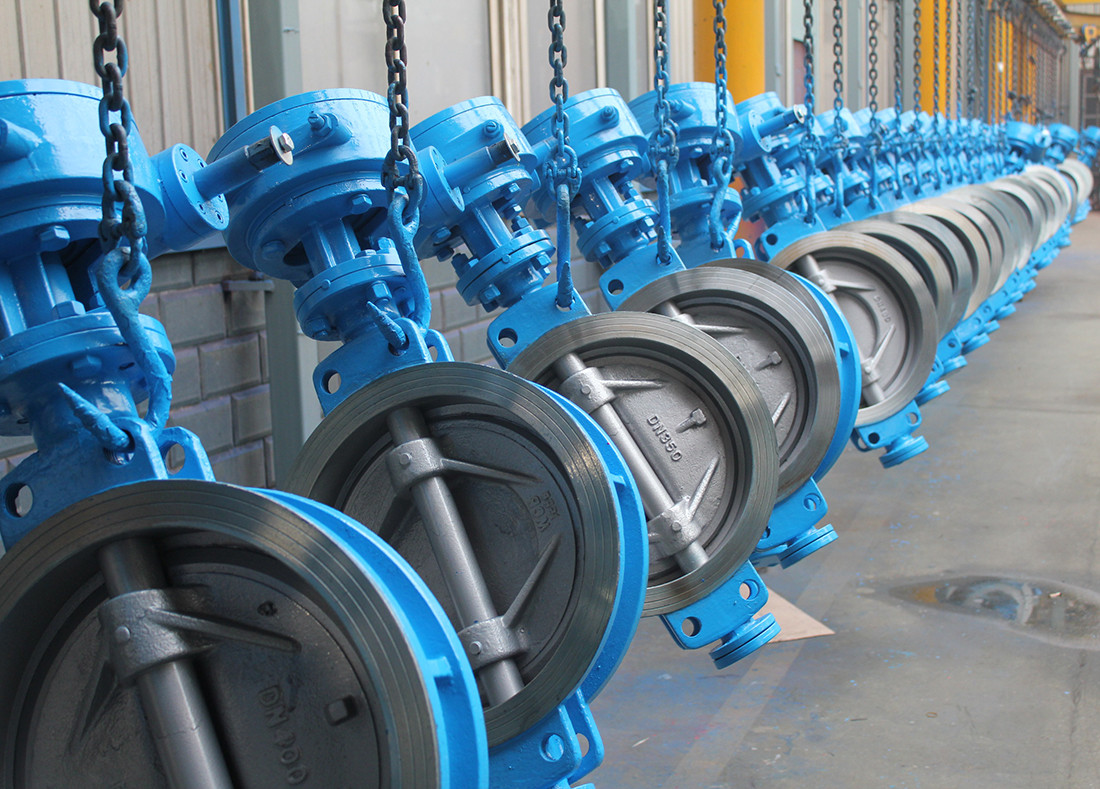

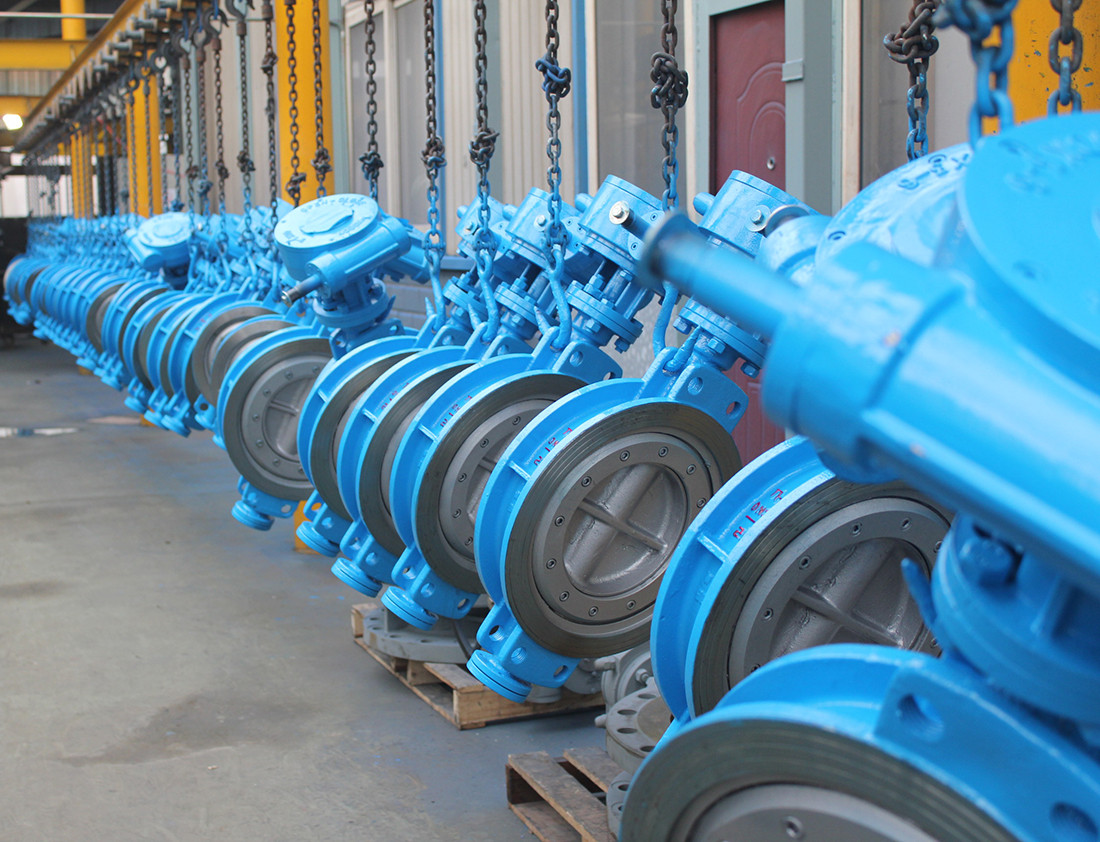

Triple offset wafer butterfly valve

Triple offset wafer butterfly valve

Triple offset wafer butterfly valve
Triple offset wafer butterfly valveTriple offset wafer butterfly valveTriple offset wafer butterfly valve
CategoriesWafer butterfly valve
AlbumView larger image
BrandJinbin Valve
ModelD371H-16C
StructureEccentric
ColorBlue
Unit PriceUS $ 30 / piece
FOB portXingang, China
Terms of PaymentL/C, D/A, D/P, T/T
Update Time2018-12-14
Detail Information

Triple offset wafer butterfly valve

Size: 2”-80” / 50mm – 2000 mm

Design standard: API 609, BS EN593.

Face-to-Face dimension: API 609, ISO 5752, BS EN558.

Flange Drilling: ANSI B 16.1, BS EN 1092-2, DIN 2501 PN 10.

Test: API 598.

Triple offset wafer butterfly valve

Working Pressure

PN10 / PN16 / PN25

Testing Pressure

Shell: 1.5 times rated pressure,

Seat: 1.1 times rated pressure.

Working Temperature

-10°C to 250°C

Suitable Media

Water, Oil and gas.

Triple offset wafer butterfly valve

Parts

Materials

Body

Carbon steel / Stainless steel

Disc

Carbon steel / Stainless steel

Seat

Stainless steel

Stem

Stainless steel

Bushing

PTFE

“O” ring

PTFE

Technical data:

Triple offset wafer butterfly valve

Triple offset wafer butterfly valve

The product is used for throttling or shutting off the flow of corrosive or non corrosive gased, liquids and semi liquid. It can be installed in any selected position in pipelines in the industries of petroleum processing, chemicals, food, medicine, textile, paper making, hydroelectricity engineering, building, water supply and sewage, metallurgy, energy engineering as well as light industry.
