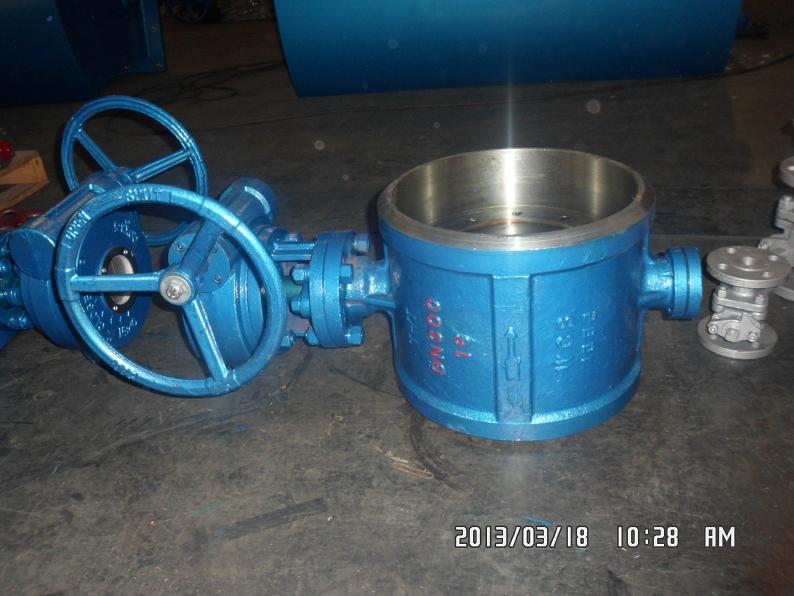

metal seat weld ended butterfly valve

metal seat weld ended butterfly valve

metal seat weld ended butterfly valve
CategoriesWelded butterfly valve
AlbumView larger image
BrandJinbin Valve
ModelD363H-16C
connectionweld
structureeccentric
operationworm gear
body materialstainless steel
seat materialmetal
nominal diameterDN80-2000
nominal pressurePN10/16/25/40
standardBS, GB, ANSI
certificateCE, ISO9001
colorcustomized
FOB portXingang, Tianjin, China (Mainland)
Terms of PaymentL/C, D/A, D/P, T/T
Update Time2018-12-12
Detail Information

metal seat weld ended butterfly valve


Size: DN80-2000

Design standard: API 609, BS EN 593.

Face-to-Face dimension: API 609, BS EN558.

Flange Drilling: ANSI B 16.1, BS EN 1092-2 PN 10 / PN 16.

Test: API 598.

Manual wafer butterfly valve(Lever type)

Working Pressure

10 bar / 16 bar/150lb

Testing Pressure

Shell: 1.5 times rated pressure,

Seat: 1.1 times rated pressure.

Working Temperature

-10°C to 120°C (EPDM)

-10°C to 150°C (PTFE)

Suitable Media

Water, Oil and gas.


Manual wafer butterfly valve(Lever type)

Parts

Materials

Body

stainless steel

Disc

Stainless steel,ductile iron

Seat

stainless steel

Stem

Stainless steel , 2Cr13

Bushing

PTFE

“O” ring

PTFE

Pin

Stainless steel

Key

Stainless steel

Manual wafer butterfly valve(Lever type)

The butterfly valve is mainly used in the pipe in drainage, fire, air conditioner, gas, petroleum, chemicals, water treatment and so on.
