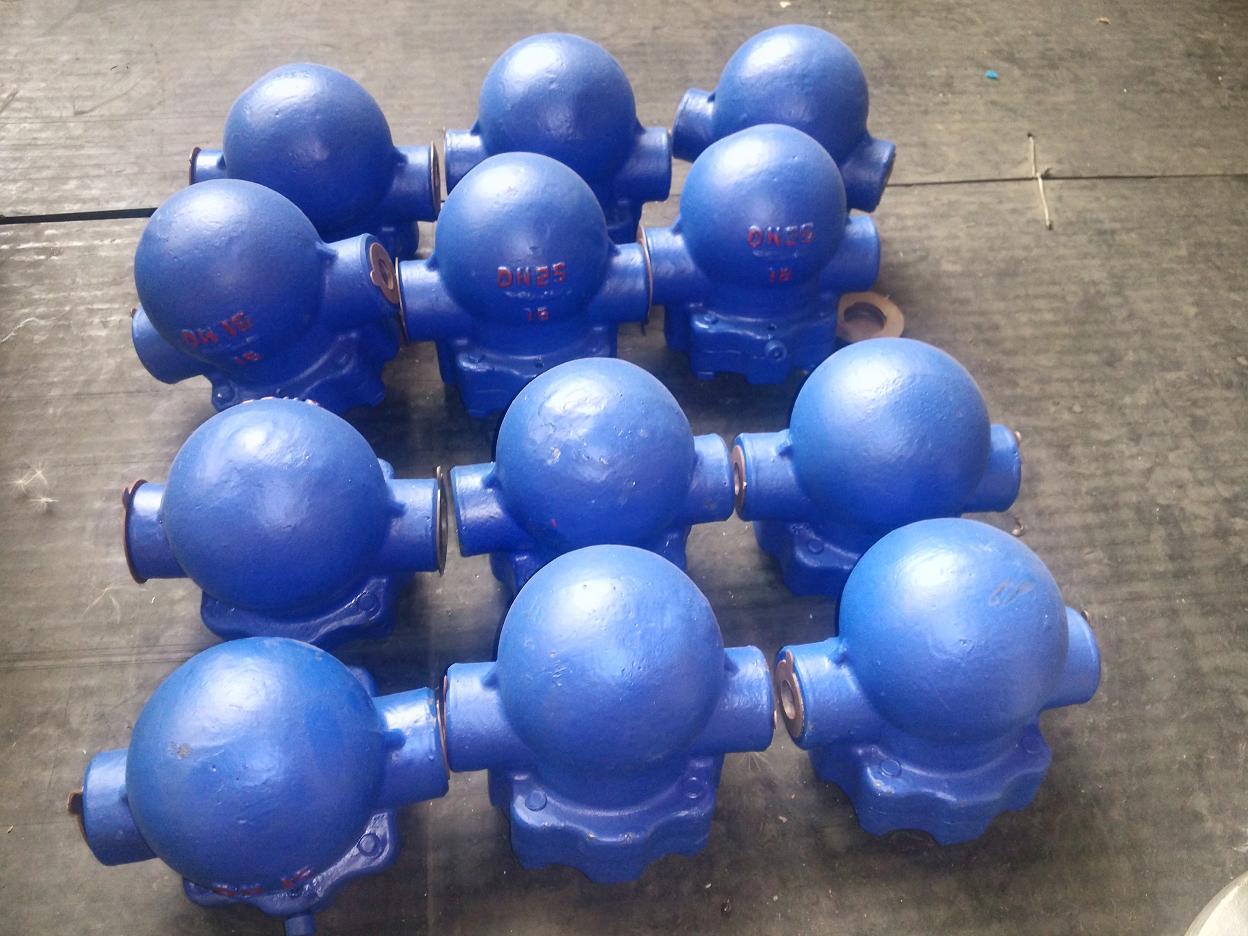

Low pressure carbon steel automatic control steam trap

Low pressure carbon steel automatic control steam trap

Low pressure carbon steel automatic control steam trap
Categoriessteam trap
AlbumView larger image
BrandJinbin Valve
Modelsteam trap
Product nameLow pressure carbon steel automatic control steam
CertificateISO9001:2008 CE
Nominal pressurePN16
ColorCustermer's requirement
StandardISO
Typeball float
Mediumwater
Body materialcarbon steel
ConnectionFlanges Universal Standard
body materialcast iron, carbon steel
FOB portTanggu, Tianjin
Terms of PaymentT/T
Update Time2019-03-22
Detail Information

Low pressure carbon steel automatic control steam trap

Steel flange lift type check valve

The trap is to discharge the condensate, air, and carbon dioxide gas in the steam system as soon as possible, and at the same time automatically prevent the leakage of steam.



Face-to-Face dimension conforms to ISO 5752 / BS EN558

Steel flange lift type check valve

Working Pressure

PN16

Testing Pressure

Shell: 1.5 times rated pressure,

Seat: 1.1 times rated pressure.

Working Temperature

0°C to 80°C

Suitable Media

Water


Steel flange lift type check valve

Part

Material

Body

Carbon steel  / cast iron

Seat

Carbon steel / Stainless Steel

Spring

Stainless Steel

Shaft

Stainless Steel

Seat Ring

Stainless steel
