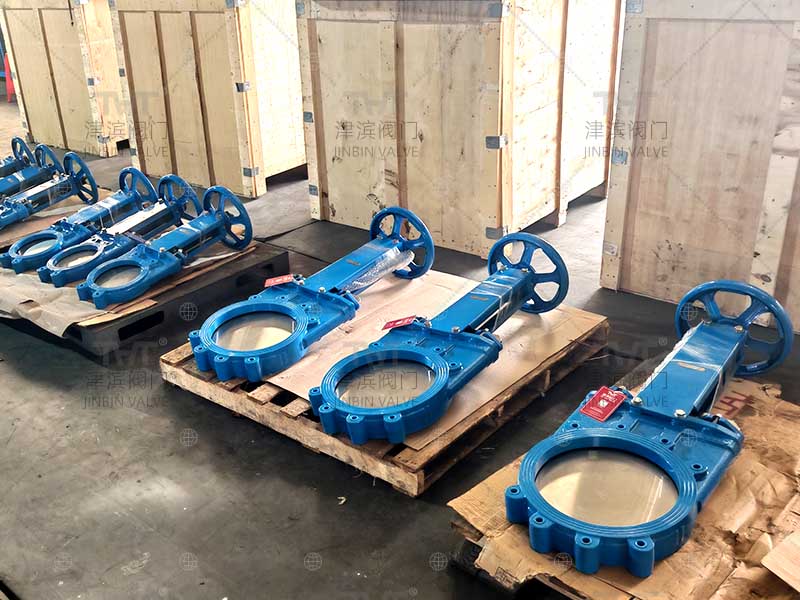

Recently, a batch of manual and electric knife gate valves has successfully completed full opening and closing debugging in the workshop and will be delivered to overseas engineering projects shortly. The available specifications cover DN150, DN200 and DN300. Designed with nominal pressure PN10, the valves sustain working temperatures up to 80°C and are specially engineered for water medium in pipeline systems.

The knife gate valve features compact structure and full straight flow passage without dead zones. Its body is manufactured from high-grade ductile iron through precision casting, delivering outstanding structural rigidity and impact resistance under conventional pipeline pressure. The stainless steel gate plate offers superior wear and corrosion resistance, ensuring low operating torque during frequent switch cycles. The optimised elastic seat design delivers reliable tight shut-off to avoid medium leakage, whether under full or partial working pressure.

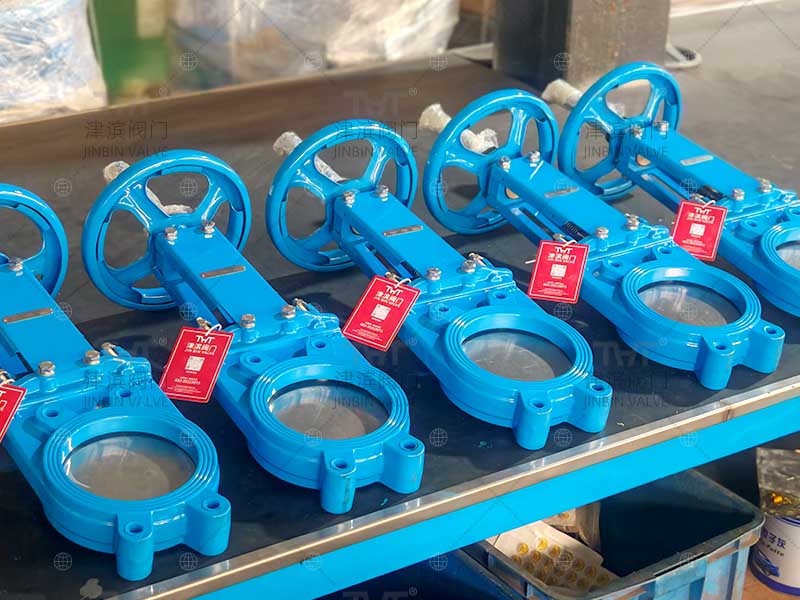

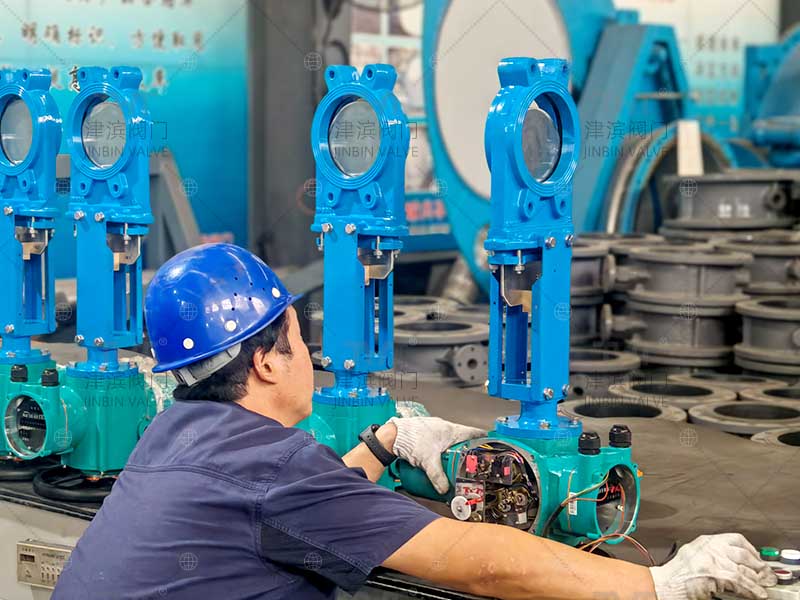

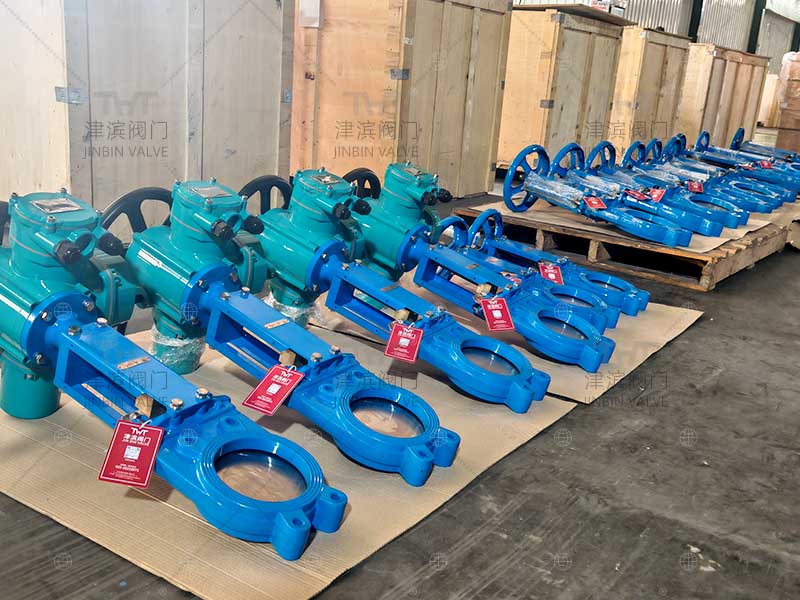

Two actuation configurations are offered to satisfy diversified site demands. The manual version is equipped with an enlarged spoked handwheel, enabling effortless on-site manual operation for small-scale pipelines and regular inspection stations. The electric variant can be fitted with explosion-proof electric actuators to realise remote automatic opening and closing control.

Quality control runs through the whole manufacturing workflow. Every individual valve undergoes strict repeated opening-closing cycle tests before leaving the factory. Our technicians fully inspect operation flexibility, sealing integrity and component coordination, effectively eliminating common faults such as plate jamming, internal leakage and actuation failure during long-term continuous service.

Compared with conventional wedge gate valves, knife gate valves feature ultra-slim body thickness, which greatly reduces required installation space and shortens construction periods for new and renovated piping systems. Simple internal structure lowers routine maintenance difficulty; operators can complete on-site inspection and wearing part replacement without dismantling the whole valve from pipelines, significantly cutting long-term operation costs for asset owners.

This series of knife gate valves adopts standard wafer lug connection, compatible with internationally mainstream pipe flange standards, convenient for global project installation. They are widely adopted for on-off control in municipal water supply and drainage networks, urban wastewater treatment plants, industrial circulating water systems, park water circulation facilities and infrastructure hydraulic engineering.

We provide flexible customisation services to worldwide partners. Apart from standard DN150, DN200 and DN300 sizes, we can adjust body materials, sealing materials and actuator types according to specific working conditions. We keep stable production capacity, strict testing standards and complete after-sales support for global engineering contractors, water treatment system integrators and pipeline distributors. Our goal is to supply stable, cost-effective fluid control solutions that match various water treatment and municipal infrastructure projects across the globe.
