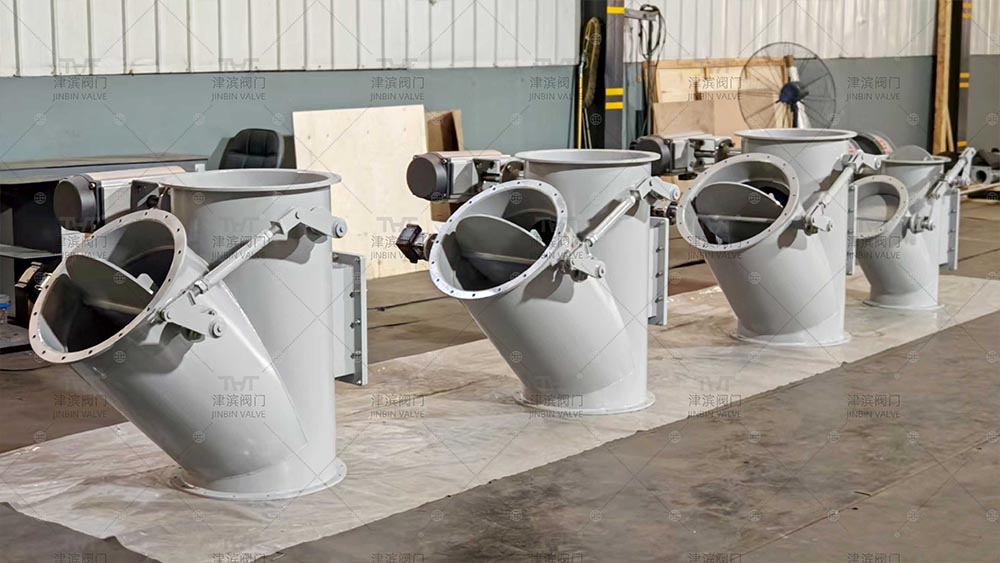

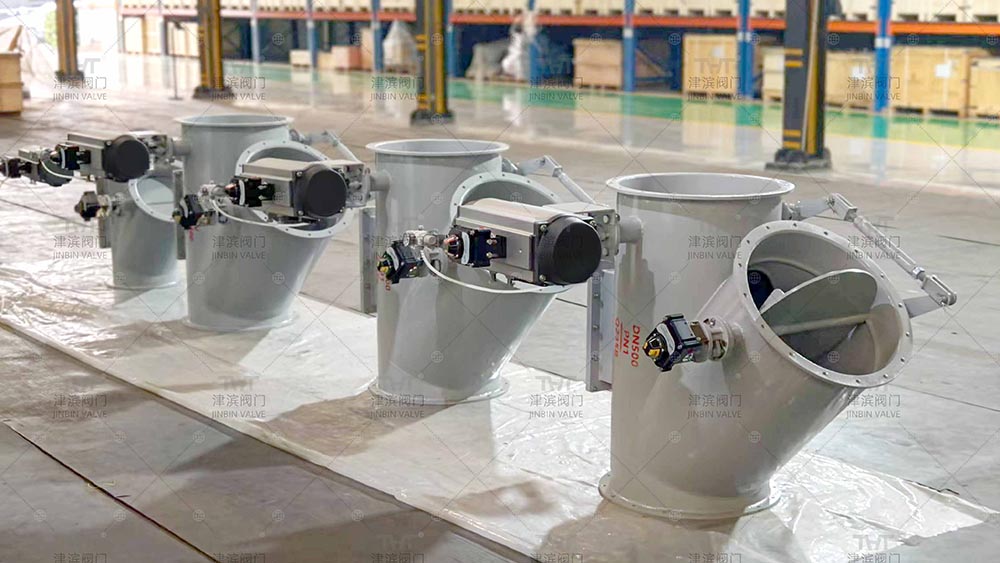

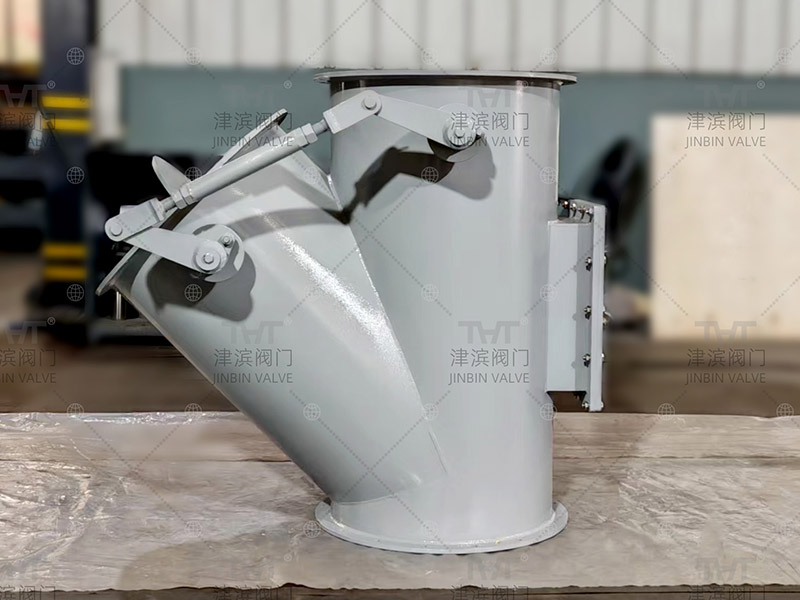

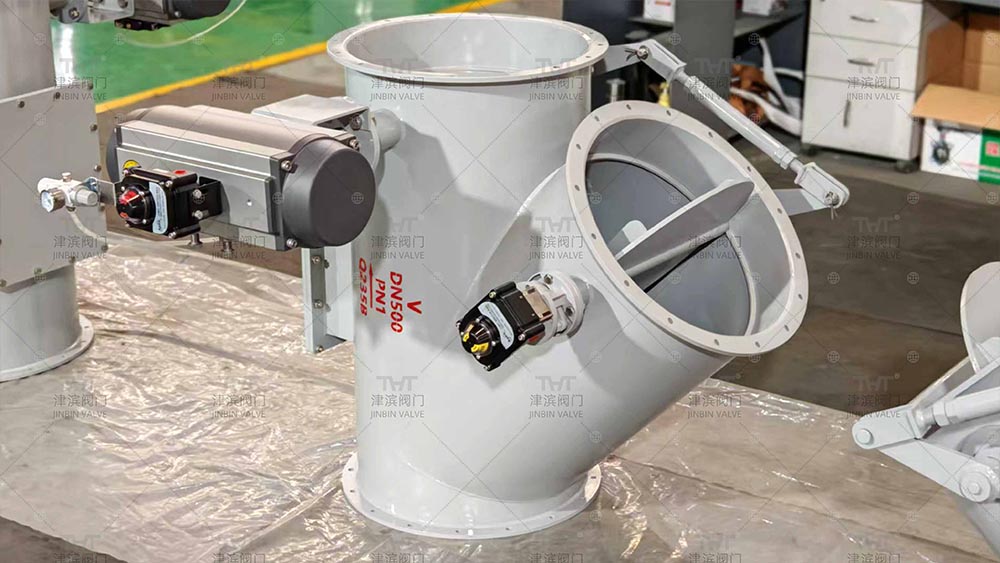

Recently, a production task was completed in the Jinbin workshop: a three way diverter damper valve. This 3 way damper valve is made of carbon steel and equipped with pneumatic actuators. They have undergone multiple quality inspections and switch tests by the workers of Jinbin and are about to be packaged and dispatched.

A three-way directional control pneumatic damper valve is a control component that switches the medium path through the movement of the valve core. Its core structure consists of three interfaces (usually marked as A, B, and C) and a movable valve core, which can be driven manually, pneumatically, or electrically. During operation, the valve core changes its mating position with the valve body by translation or rotation: when the valve core is in the initial position, it may cause port A and Port B to be connected and port C to be closed. When switching to another position, it becomes that port A and Port C are connected while port B is closed. Some models can also achieve port B and Port C being connected while port A is closed, thus quickly completing the flow direction switching, convergence or diversion of the medium (liquid, gas or steam).

This type of valve has significant advantages: Firstly, it has a compact structure. A single valve can replace the combined function of multiple two-way valves, greatly simplifying pipeline design and saving installation space. Second, it features a fast switching response. The diverter damper valve core’s movement directly changes the path without the need for complex interlocking control, thereby enhancing the system’s regulation efficiency.

Thirdly, it has reliable sealing performance. The precise fit between the valve core and the valve body can effectively reduce medium leakage and adapt to harsh working conditions such as high pressure and high temperature. Fourth, it has a wide range of applications. Whether it is water, oil, gas or corrosive media, stable control can be achieved by choosing the corresponding materials (such as cast iron, stainless steel).

The pneumatic damper valve （gas damper valves） is most suitable for scenarios where flexible switching of medium flow direction is required: for example, in HVAC systems, it is used to switch between cold and hot medium water to regulate indoor temperature. In industrial processes, the control of medium diversion or convergence in chemical and petroleum pipelines; In hydraulic and pneumatic systems, the transmission path of oil or compressed air is changed to drive the actuating elements. In addition, it is widely applied in scenarios such as solar thermal collection systems, water treatment circulation pipelines, and ship power systems due to the frequent switching of medium paths, which can significantly enhance the integration and operational efficiency of the system.
