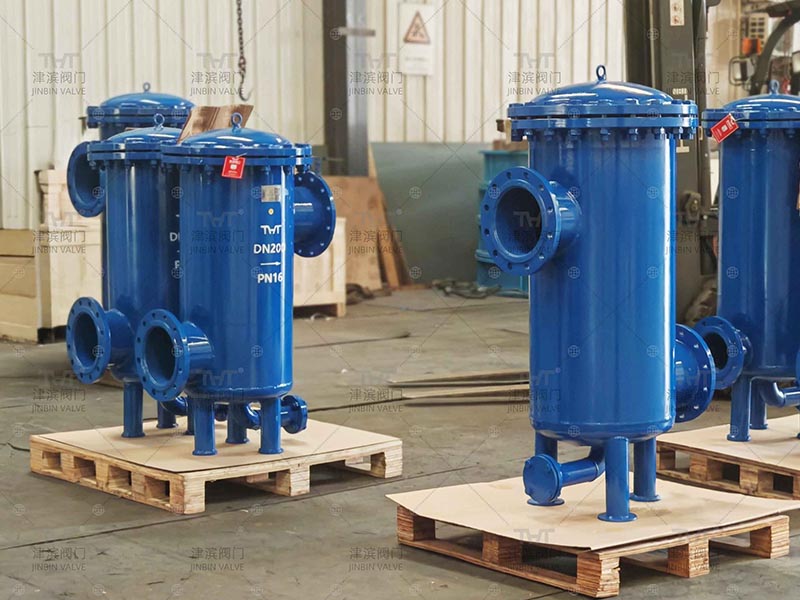

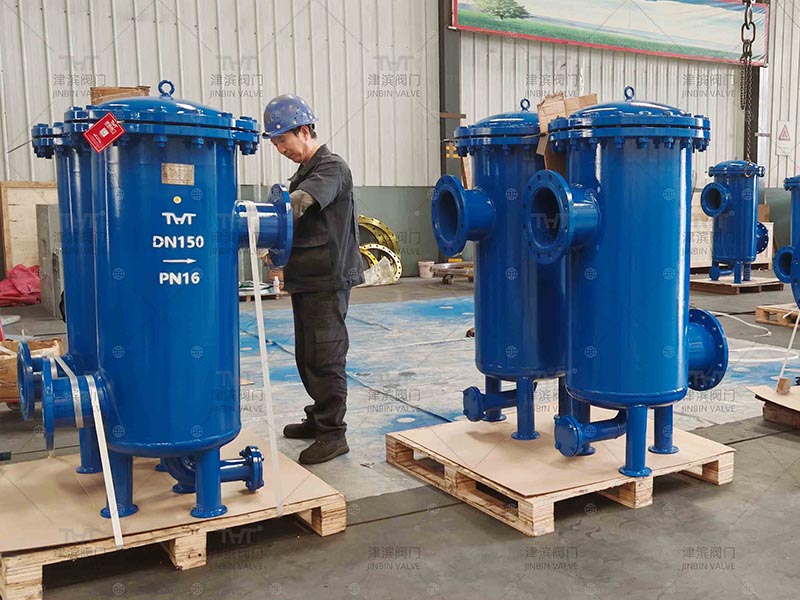

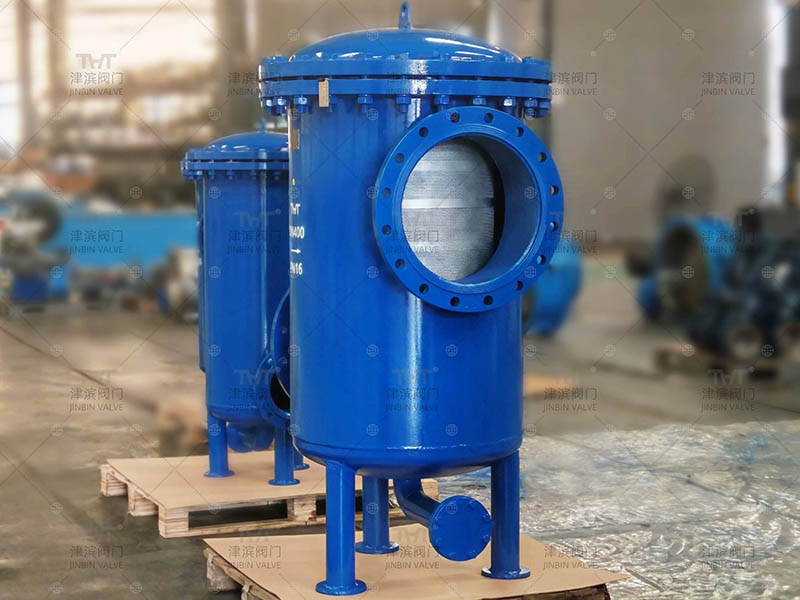

This morning, in the Jinbin workshop, a batch of basket-type dirt separators completed their final packaging and have begun transportation. The dimensions of the dirt separator are DN150, DN200, DN250 and DN400. It is made of carbon steel, equipped with high and low flanges, low inlet and high outlet, and stainless steel 304 filter screen. The applicable medium is water, the working temperature is ≤150℃, and the nominal pressure is ≤1.6Mpa.

The following introduces the features and applications of this basket-type dirt separator.

The basket-type dirt separator has three major features. Firstly, it is highly efficient in filtration. It uses stainless steel filter screens with a pore size of 1-10mm, which have a filtration area over 30% larger than that of traditional filter screens. It is impact-resistant, corrosion-resistant and less prone to clogging.

Second, it has strong structural adaptability, with high and low position inlets and outlets suitable for multiple installation Spaces. The streamlined flow channel resistance is ≤0.02MPa, which does not affect the system flow rate. Thirdly, it is easy to maintain. It comes with a built-in sewage outlet for easy impurity removal. Some models are equipped with bypass pipes, so disassembly and cleaning do not require the machine to stop.

This type of dirt separator is applied in multiple fields: HVAC systems, water chillers, heat exchangers; Industrial circulating water systems (such as chemical and power industries) protect circulating pumps and valves; Terminal equipment for urban secondary water supply protection Prevent radiator blockage in the heat supply network. Its “high efficiency + low maintenance” advantage can extend the system’s lifespan by more than 30%.

Jinbin Valves customizes a series of valves including large-diameter valves, such as gate valve, stainless steel penstock gate, double eccentric butterfly valve, large-diameter air damper, water check valve. If you have any related needs, please leave a message below or send it to the homepage whatsapp. You will receive a reply within 24 hours. We look forward to cooperating with you.
