100% Original Factory Butterfly Valve Rubber Seat - Teflon lined wafer butterfly valve – Jinbin Valve Detail:

PTFE lined wafer type butterfly valve,2 pc body butterfly valve for the corrosive fluid

Teflon lined wafer butterfly valve

Size: 2”-20”/ 50mm –500 mm

Design standard: API 609, BS EN 593.

Face-to-Face dimension: API 609, DIN 3202 k1, ISO 5752, BS 5155, MSS SP-67.

Flange Drilling: ANSI B 16.1, BS4504, DIN PN 10 / PN 16.

Test: API 598.

Epoxy fusion coating.

Different lever operator.

Teflon lined wafer butterfly valve

Working Pressure

10 bar / 16 bar

Testing Pressure

Shell: 1.5 times rated pressure,

Seat: 1.1 times rated pressure.

Working Temperature

-10°C to 80°C (NBR)

-10°C to 120°C (EPDM)

Suitable Media

Water, Oil and gas.

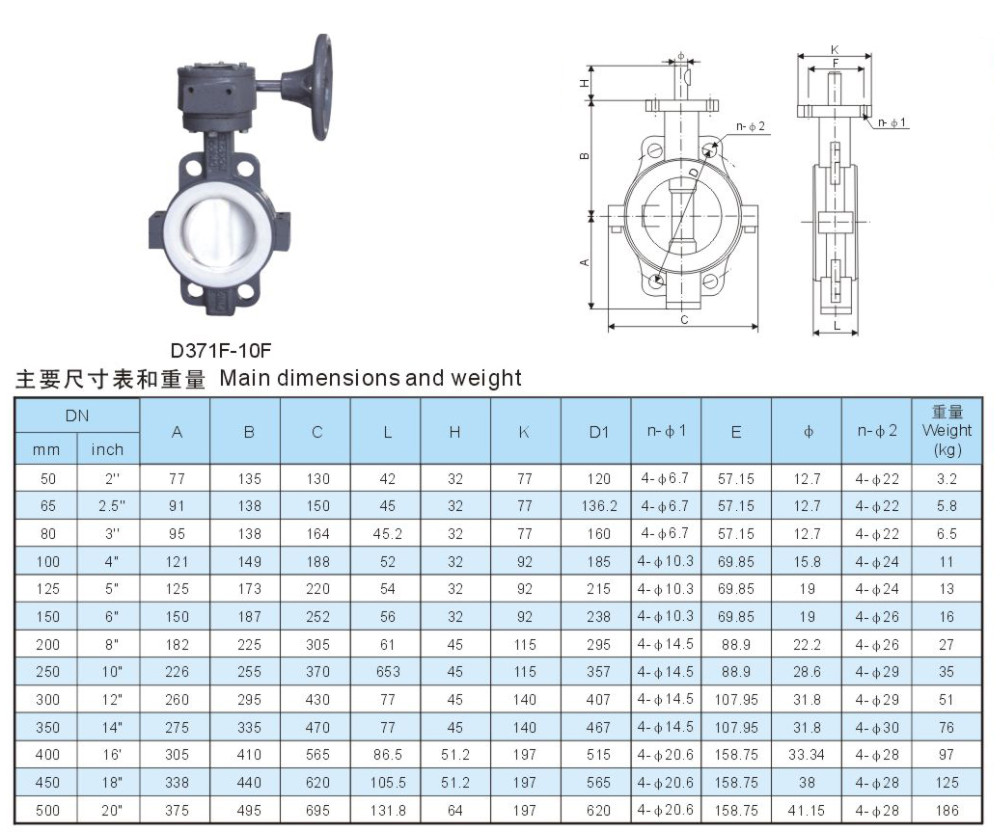

Technical data:

Teflon lined valve technical data.jpg

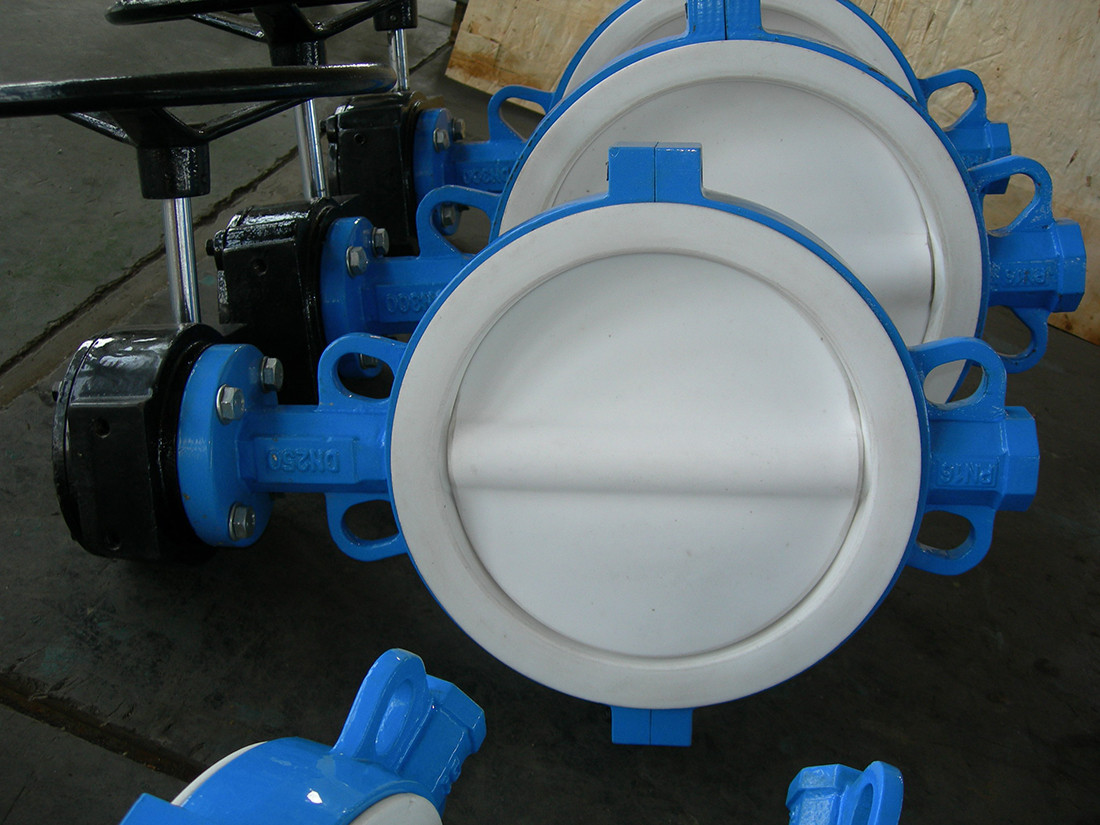

Product picture display:Teflon lined wafer butterfly valveTeflon lined wafer butterfly valve

Product detail pictures:

100% Original Factory Butterfly Valve Rubber Seat - Teflon lined wafer butterfly valve – Jinbin Valve detail pictures
