Bidirectional sealing triple eccentric butterfly valve

Short Description:

Bidirectional sealing triple eccentric butterfly valve Size: DN 100 – DN2600 Design standard: API 609, BS EN 593, ASME B16.34 Face-to-Face dimension: API 609, ISO 5752, ASME B16.10, BS EN 558, BS 5155. Flange Drilling: ANSI B 16.5, BS EN 1092, DIN 2501 PN 10/16, BS 10 Table E. Test: API 598, EN1266-1 Working Pressure PN10 / PN16/PN25 Testing Pressure Shell: 1.5 times rated pressure, Seat: 1.1 times rated pressure. Working Temperature -10°C to 350°C Suitable Media...


  • FOB Price: US $10 - 9,999 / Piece
  • Min.Order Quantity: 1 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Product Detail

    Product Tags

    Bidirectional sealing triple eccentric butterfly valve

    Motorized Butterfly valve

    Size: DN 100 – DN2600

    Design standard: API 609, BS EN 593, ASME B16.34

    Face-to-Face dimension: API 609, ISO 5752, ASME B16.10, BS EN 558, BS 5155.

    Flange Drilling: ANSI B 16.5, BS EN 1092, DIN 2501 PN 10/16, BS 10 Table E.

    Test: API 598, EN1266-1

    Motorized Butterfly valve

    Working Pressure

    PN10 / PN16/PN25

    Testing Pressure

    Shell: 1.5 times rated pressure,

    Seat: 1.1 times rated pressure.

    Working Temperature

    -10°C to 350°C

    Suitable Media

    Water, Oil, steam and gas.

    Motorized Butterfly valve

    Parts

    Materials

    Body

     carbon steel, stainless steel

    Disc

    carbon steel/ Stainless steel

    Seal ring

    Graphite+stainless steel

    Stem

    20Cr13

    Packing

    Flexible graphite

    seat ring

    A105+13Cr

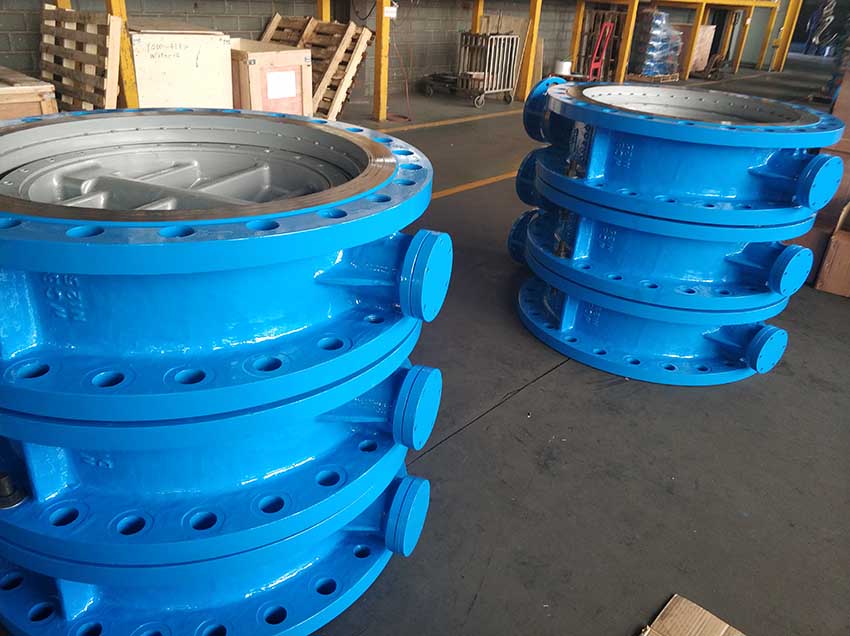

    1

    The product is used for throttling or shutting off the flow of corrosive or non corrosive gased, liquids and semi liquid. It can be installed in any selected position in pipelines in the industries of petroleum processing, chemicals, food, medicine, textile, paper making, hydroelectricity engineering, building, water supply and sewage, metallurgy, energy engineering as well as light industry.

    Motorized Butterfly valve

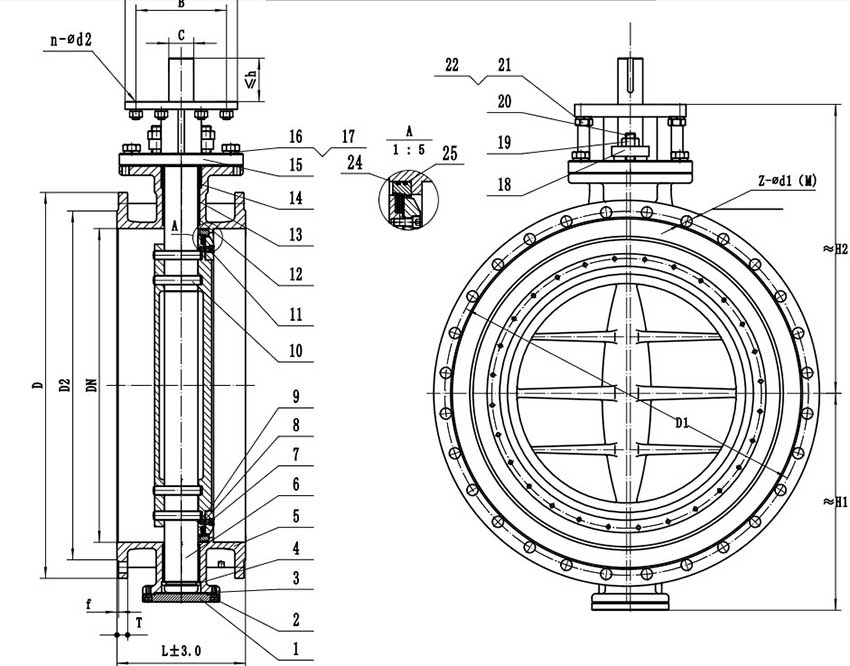

     2

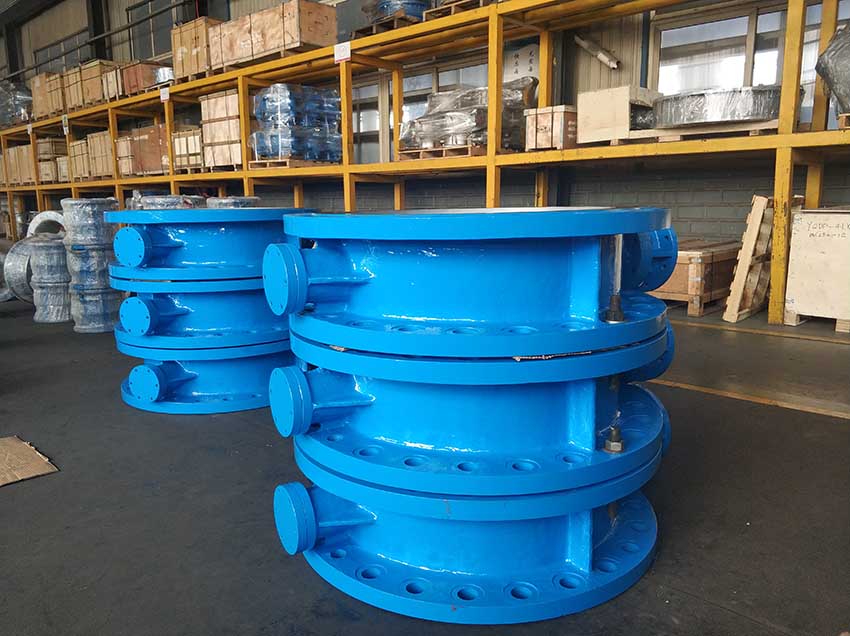

    3
