Short Description:

rubber sealing grooved end signal butterfly valve Size: DN50-200 Design standard: API 609, BS EN 593. Face-to-Face dimension: API 609, BS EN558. Flange Drilling: ANSI B 16.1, BS EN 1092-2 PN 10 / PN 16. Test: API 598. Working Pressure 10 bar / 16 bar/150lb Testing Pressure Shell: 1.5 times rated pressure, Seat: 1.1 times rated pressure. Working Temperature -10°C to 120°C (EPDM) -10°C to 150°C (PTFE) Suitable Media Water, Oil and gas. Parts Materials B...


WhatsApp

Product Detail

Product Tags

Related Video

Feedback (2)

In an effort to finest meet up with client's requirements, all of our operations are strictly performed in line with our motto "High High quality, Competitive Rate, Fast Service" for U Shape Butterfly Valve , Slurry Knife Gate Valve , Stainless Steel Mini Ball Valve , In addition, we would properly guide the customers about the application techniques to adopt our products and the way to select appropriate materials.
2017 Latest DesignTypes Of Pneumatic Valves - rubber sealing grooved end signal butterfly valve – Jinbin Valve Detail:

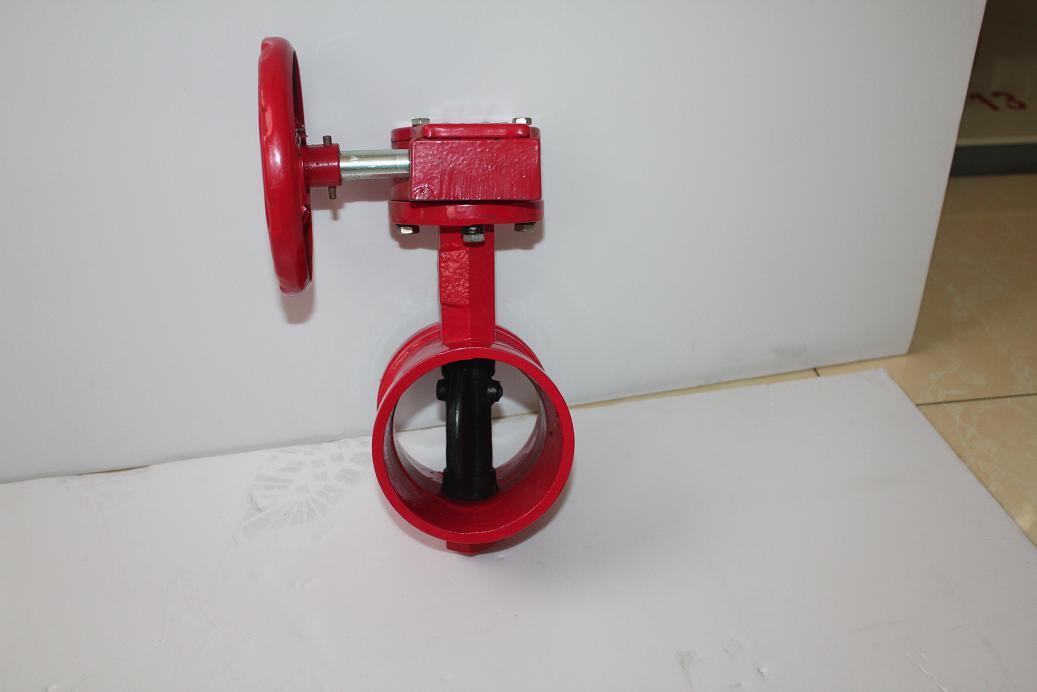

rubber sealing grooved end signal butterfly valve


Size: DN50-200

Design standard: API 609, BS EN 593.

Face-to-Face dimension: API 609, BS EN558.

Flange Drilling: ANSI B 16.1, BS EN 1092-2 PN 10 / PN 16.

Test: API 598.

Manual wafer butterfly valve(Lever type)

Working Pressure

10 bar / 16 bar/150lb

Testing Pressure

Shell: 1.5 times rated pressure,

Seat: 1.1 times rated pressure.

Working Temperature

-10°C to 120°C (EPDM)

-10°C to 150°C (PTFE)

Suitable Media

Water, Oil and gas.

Manual wafer butterfly valve(Lever type)

Parts

Materials

Body

cast iron

Disc

Stainless steel

Seat

EPDM / NBR / VITON / PTFE

Stem

Stainless steel

Bushing

PTFE

“O” ring

PTFE

Pin

Stainless steel

Key

Stainless steel

Manual wafer butterfly valve(Lever type)

The butterfly valve is mainly used in the pipe in drainage, fire, air conditioner, gas, petroleum, chemicals, water treatment and so on.

Product detail pictures:

2017 Latest DesignTypes Of Pneumatic Valves - rubber sealing grooved end signal butterfly valve – Jinbin Valve detail pictures
