2017 New Style Electric Water Valve - Fire grooved rising stem gated valve – Jinbin Valve Detail:

Fire rising stem resilient seated gate valve


Size: DN50-400

Design standard: API 609, BS EN 593.

Face-to-Face dimension: API 609, BS EN558.

Pressure: PN 16/PN 10

Test: API 598.

Manual wafer butterfly valve(Lever type)

Working Pressure

10 bar/ 16 bar/

Testing Pressure

Shell: 1.5 times rated pressure,

Seat: 1.1 times rated pressure.

Working Temperature

-10°C to 120°C (EPDM)

-10°C to 150°C (PTFE)

Suitable Media

Water

Manual wafer butterfly valve(Lever type)

Parts

Materials

Body

cast iron/cast steel

Gate

Ductile+EPDM/NRB

Seat

EPDM / NBR / VITON / PTFE

Stem

Stainless steel

Bushing

PTFE

“O” ring

PTFE

Gland

Ductile iron/cat steel

Stand

Ductile iron/cat steel

Manual wafer butterfly valve(Lever type)

Fire rising stem resilient seated gate valves in addition to the advantages of resilient seated outside, and be compared to visualize the valve open degree of valve opening in order to distinguish in the distant outer, adopt corresponding measures timely, open and close quickly and reliably, so application in the fire system.

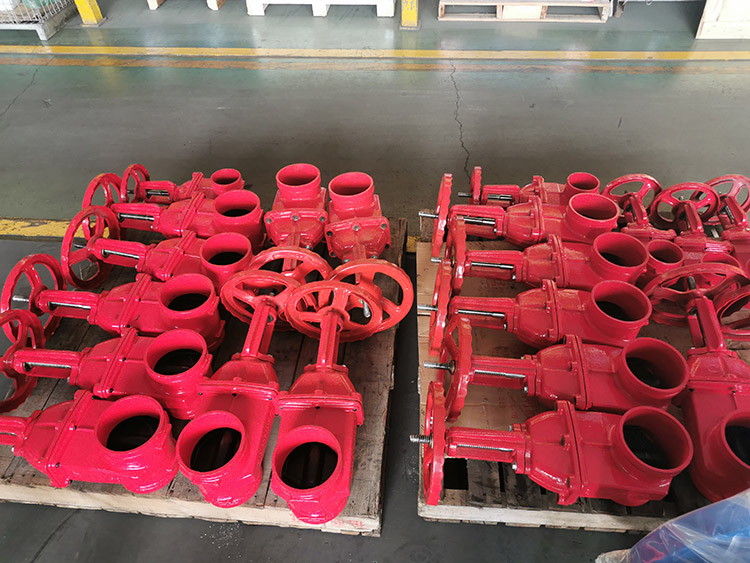

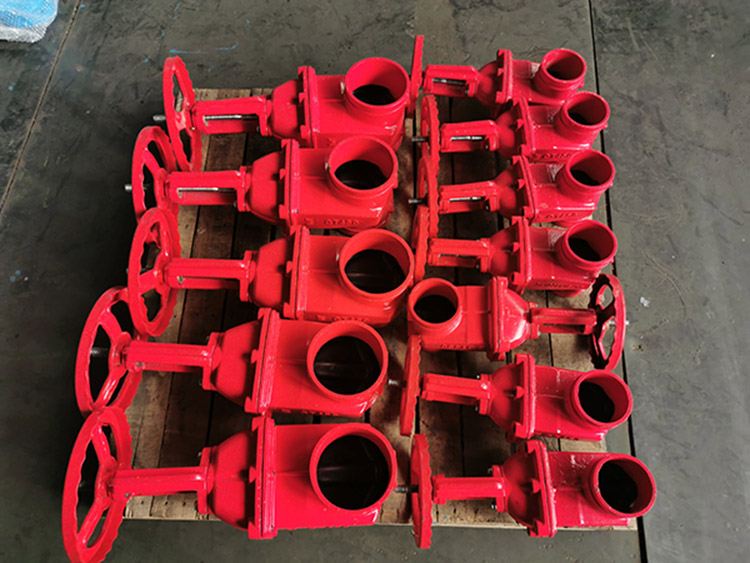

Grooved gate valve (1) Grooved gate valve (10)
