Short Description:

Adjustable pressure reducing valve 200X pressure reducing valves automatically reduce and regulate a higher inlet pressure to a steady lower downstream pressure, regardless of chaning flow rate and varying inlet pressure. This valve is an accurate, pilot-operated regulator capable of holding down steam pressure to a re-determined limit. When downstream pressure exceeds the pressure setting of the control pilot, the main valve and pilot valve close drip-tight. Size: DN50 – DN600 Flange dril...


Email WhatsApp

Product Detail

Product Tags

Related Video

Feedback (2)

We insist on offering premium quality creation with very good company concept, honest product sales along with the finest and fast assistance. it will bring you not only the premium quality item and huge profit, but the most significant is to occupy the endless market for 304 Ball Valve , U Shape Butterfly Valve , Wafer Knife Gate Valve , We're keeping chasing WIN-WIN situation with our consumers. We warmly welcome clientele from all around the environment coming above for a visit and establishing long lasting connection.
Bottom price Wafer Pneumatic Butterfly Valve - Pressure regulating valve – Jinbin Valve Detail:

Adjustable pressure reducing valve

Pressure regulating valve

200X pressure reducing valves automatically Pressure regulating valve

reduce and regulate a higher inlet pressure to a steady lower downstream pressure, regardless of chaning flow rate and varying inlet pressure.

This valve is an accurate, pilot-operated regulator capable of holding down steam pressure to a re-determined limit. When downstream pressure exceeds the pressure setting of the control pilot, the main valve and pilot valve close drip-tight.

Size: DN50 – DN600

Flange drilling is suitable for BS EN1092-2 PN10/16.

Epoxy fusion coating.

Pressure regulating valve

Working Pressure

10 bar

16 bar

Testing Pressure

Shell: 15 bars; Seat: 11 bar.

Shell: 24bars; Seat: 17.6 bar.

Working Temperature

10°C to 120°C

Suitable Media

Water, oil & gas.

Shell and seal tests for each valve is done and recorded before package to make sure the product quality. The test media is water in room conditions.

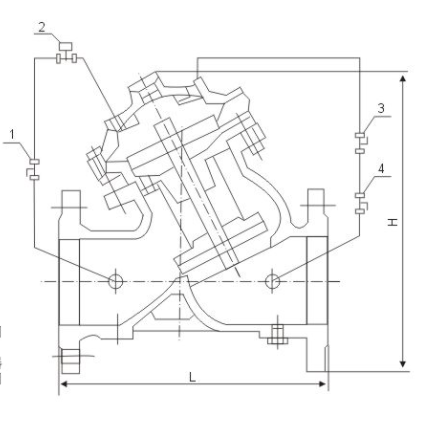

Pressure regulating valve

Pressure regulating valve

No.

Part

Material

1

Body

Ductile iron/Carbon steel

2

Bonnet

Ductile iron/Carbon steel

3

Seat

Brass

4

Wedge coating

EPDM / NBR

5

Disc

Ductile iron+NBR

6

Stem

(2 Cr13) /20 Cr13

7

Plug Nut

Brass

8

Pipe

Brass

9

Ball/Needle/Pilot

Brass

If need the drawing details, please feel free to contact.

Pressure regulating valve

1. Work stable and reliable and big flow pass.

2.  Disc open quickly and close slowly without water hammer.

3. High precision reducing regulator with large range.

4. Sealing performance and long service life.

Installation Requirements:

1. Recommend to install exhuast valve in pipe system to make sure the steady working.

2. Pressure of inlet should not less than 0.2Mpa. If it does, the performance will be worse. (Pressure tolerance of outlet will increase.)

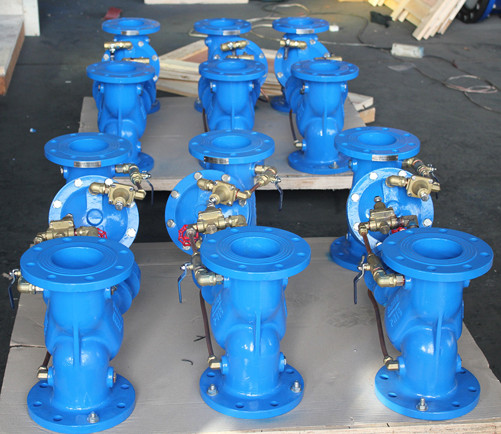

Product detail pictures:

Bottom price Wafer Pneumatic Butterfly Valve - Pressure regulating valve – Jinbin Valve detail pictures

Bottom price Wafer Pneumatic Butterfly Valve - Pressure regulating valve – Jinbin Valve detail pictures
