Cheap price Gate Valve A351 Cf8m - Electric eccentric butterfly valve – Jinbin Valve

Cheap price Gate Valve A351 Cf8m - Electric eccentric butterfly valve – Jinbin Valve Featured Image
  • Cheap price Gate Valve A351 Cf8m - Electric eccentric butterfly valve – Jinbin Valve

Short Description:

Electricdouble offset seat butterfly valve Size: 2”-80” / 40mm – 2000 mm Design standard: API 609, BS EN 593. Face-to-Face dimension: API 609, BS 5155, ISO 5752. Flange Drilling: ANSI B 16.1, BS4504, DIN PN 10 / PN 16, JIS 5K, 10K, 16K. Test: API 598. Working Pressure PN10 / PN16 Testing Pressure Shell: 1.5 times rated pressure, Seat: 1.1 times rated pressure. Working Temperature -10°C to 80°C (NBR) -10°C to 120°C (EPDM) Suitable Media Water, Oil and gas. ...


Email WhatsApp

Product Detail

Product Tags

Related Video

Feedback (2)

Every single member from our higher effectiveness product sales staff values customers' requires and organization communication for Ansi150 Flange Knife Gate Valve , All Sizes Valve , Pressure Sluice Gate Valve , We sincerely welcome you come to visit us. Hope we have good cooperation in the future.
Cheap price Gate Valve A351 Cf8m - Electric eccentric butterfly valve – Jinbin Valve Detail:

Electricdouble offset seat butterfly valve

Electric eccentric butterfly valve

Size: 2”-80” / 40mm – 2000 mm

Design standard: API 609, BS EN 593.

Face-to-Face dimension: API 609, BS 5155, ISO 5752.

Flange Drilling: ANSI B 16.1, BS4504, DIN PN 10 / PN 16, JIS 5K, 10K, 16K.

Test: API 598.

Electric eccentric butterfly valve

Working Pressure

PN10 / PN16

Testing Pressure

Shell: 1.5 times rated pressure,

Seat: 1.1 times rated pressure.

Working Temperature

-10°C to 80°C (NBR)

-10°C to 120°C (EPDM)

Suitable Media

Water, Oil and gas.

Electric eccentric butterfly valve

Parts

Materials

Body

Cast iron, ductile iron, carbon steel, stainless steel

Disc

Nickel ductile iron / Al bronze / Stainless steel

Seat

EPDM / NBR / VITON / PTFE

Stem

Stainless steel / Carbon steel

Bushing

PTFE

“O” ring

PTFE

Worm gearbox

Cast iron / Ductile iron

Electric eccentric butterfly valve

The product is used for throttling or shutting off the flow of corrosive or non corrosive gased, liquids and semi liquid. It can be installed in any selected position in pipelines in the industries of petroleum processing, chemicals, food, medicine, textile, paper making, hydroelectricity engineering, building, water supply and sewage, metallurgy, energy engineering as well as light industry.

Electric eccentric butterfly valve

Electric eccentric butterfly valve

Product detail pictures:

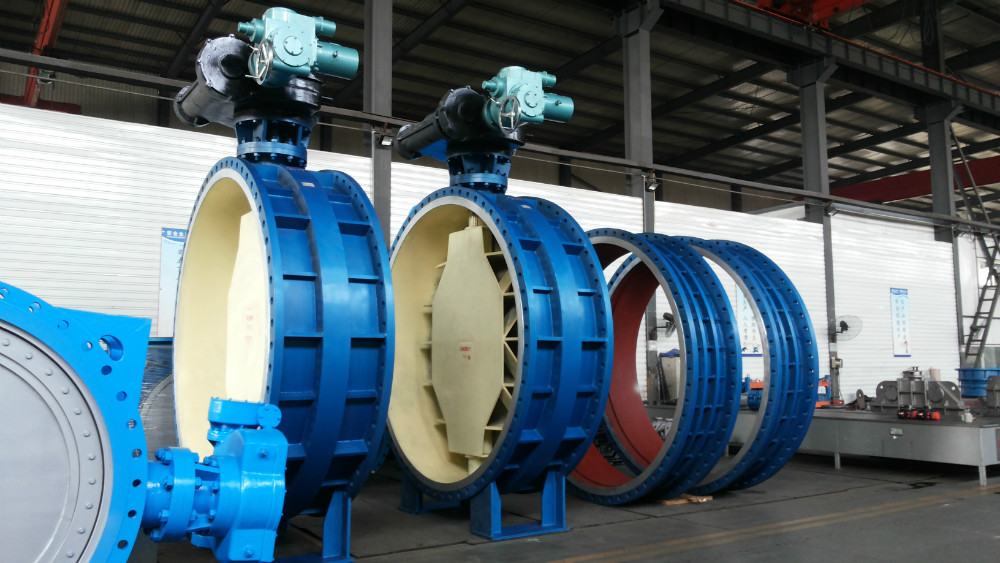

Cheap price Gate Valve A351 Cf8m - Electric eccentric butterfly valve – Jinbin Valve detail pictures
