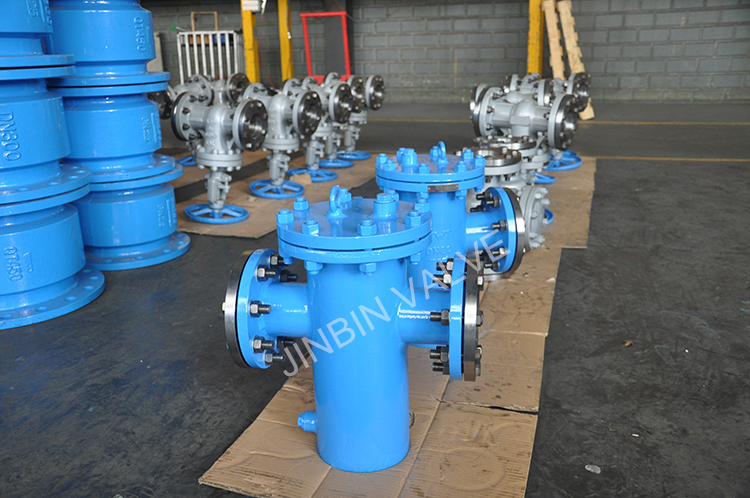

Carbon steel PN16 basket strainer

Basket strainer is installed on oil or other liquid pipeline, which can remove solid particles in fluid, make machinery and equipment (including compressor, pump, etc.) and instruments work normally, and achieve stable process. Its filtration area is about 3-5 times of the cross-sectional area of the import and export (large cylinder can also be used, small diameter, higher magnification), far more than the filtration area of Y-type and T-type filters.

Basket filter is mainly composed of connecting pipe, cylinder, filter basket, flange, flange cover and fastener. When the liquid enters the filter basket through the cylinder, the solid impurity particles are blocked in the filter basket, and the clean fluid is discharged through the filter basket and the outlet of the filter. When cleaning is needed, loosen the plug at the bottom of the main pipe, drain the fluid, remove the flange cover, lift out the filter element for cleaning, and then install it again after cleaning. Therefore, it is very convenient to use and maintain.
