DN200 Stainless steel eccentric flanged butterfly valve factory
Butterfly valve is mainly consisted of body, stem, disc, seat and driver(lever, gearbox, pneumatic and electric Actuator) and so on. On off and controlling flow of valve are made by turning stem and disc together.
Size | DN200 |
working pressure | 1.0Mpa |
shell test | 1.5Mpa |
seal test | 1.1Mpa |
END standard | EN1092 |
Face to face | EN558-1 |
Temperature | -15-+150℃ |
Medium | water/sewage/sea water/gas etc |
part | material |
body | CF8 |
disc | CF8 |
shaft | CF8 |
Seat seal | PTFE |
Bolts&Nuts | CF8 |
Specification and data sheet
Size | 4″-120″ |
Pressure | PN10/PN16/PN25 |
Design standard | BS EN593/MSS SP67/API609/BS5155 |
End standard | ANSI B16.1/ANSI B16.5/DIN2501/EN1092 |
Face to face | ISO5272/EN558/MSS SP67/API609 |
Test standard | API598/ ISO5208 |
Operation | Handwheel/Worm gear/Electric/Penufactic/Hydraulic |
Temperature | -15-+150℃ |
Media | Water/sewage/sea water/gas/etc |
pressure test shell | 1.5 |
pressure test sealing | 1.1 |
Suitable material
Body | Ductile iron/WCB/CF8/CF8M |
Disc | Ductile iron/WCB/CF8/CF8M |
Bonnet | Ductile iron/WCB/CF8/CF8M |
Seat | EPDM/NBR/VITON/PTFE |
Shaft | SS420/CF8/CF8M |
Packing | Flexible graphite |
O ring | Rubber |

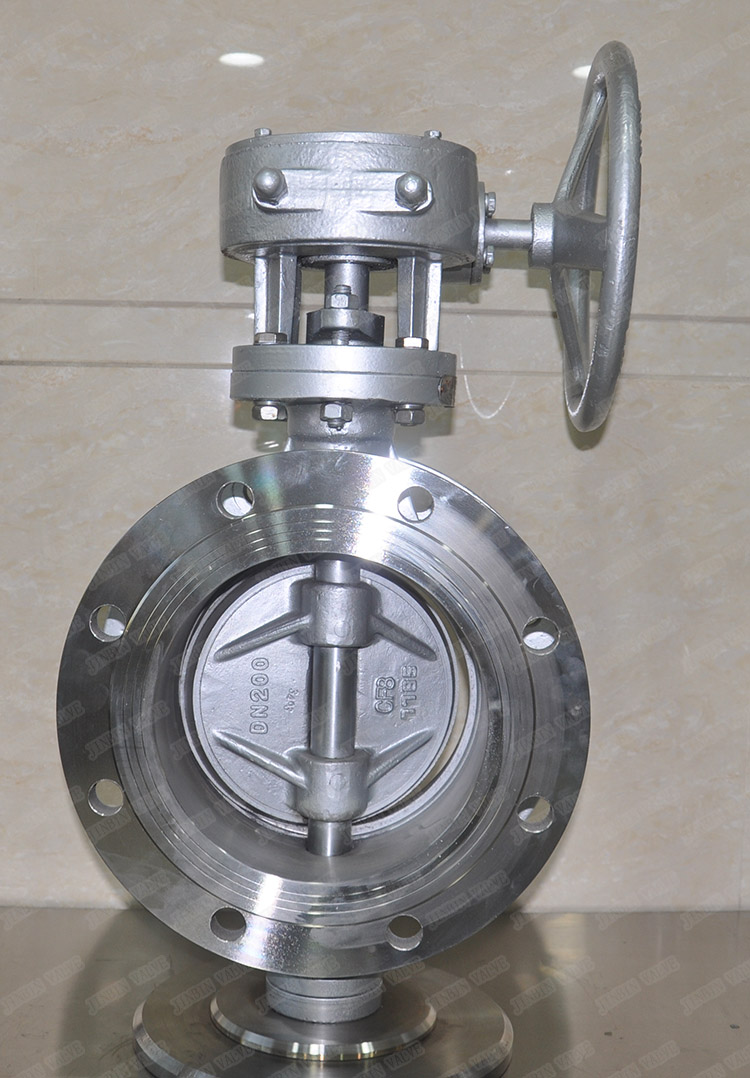

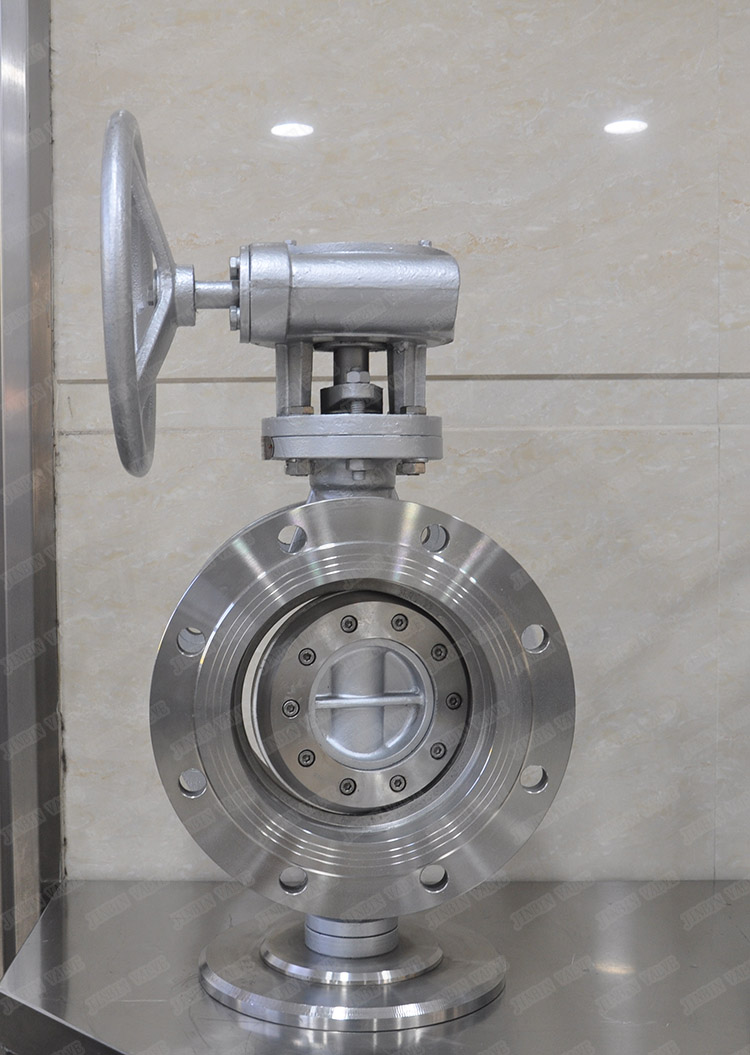

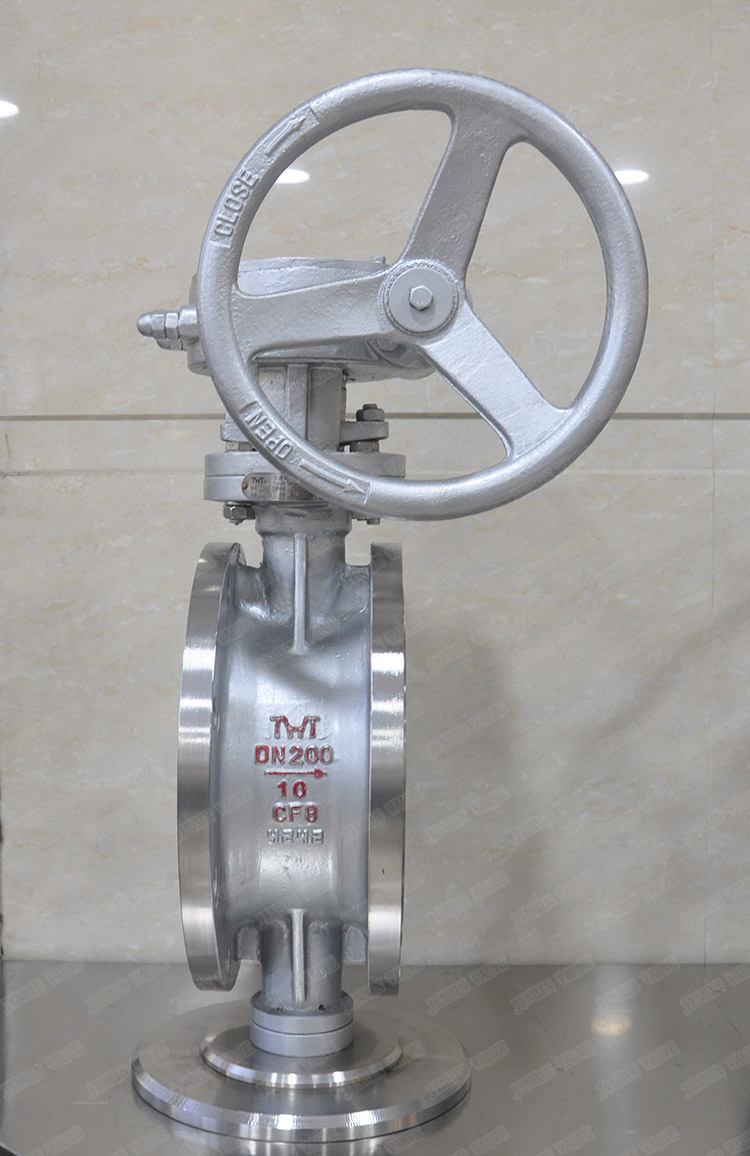

Product detail pictures:
