China China New ProductStainless Steel Flange Gate Valve - flanged knife gate valve pneumatic actuator – Jinbin Valve Manufacturer and Supplier

China New ProductStainless Steel Flange Gate Valve - flanged knife gate valve pneumatic actuator – Jinbin Valve

Short Description:

flanged knife gate valve pneumatic actuator Design Features Design & Manufacture: API 602 Size Range :2″ to 42″ N. B. Pressure Classes :ANSI 150, PN6, PN10, PN16 End Connections : Flanged & WAFER Materials (Standard) Standard Constructions Steel:Cast Carbon Steel A216 Gr WCB Body and Bonnet. F316 Stem & Gate, Resilient or Metal Seating Stem packing PTFE / graphite composite. Iron:Cast Iron A126 GR. B Body and Bonnet. F304 Stem & Gate, Resilient or Metal Seatin...

Send email to us Download as PDF

Product Detail

Product Tags

Feedback (2)

Persisting in "High high quality, Prompt Delivery, Aggressive Price", we've established long-term cooperation with clients from the two overseas and domestically and get new and old clients' superior comments for Stainless Steel Flanged Strainer , Api Standard Basket Strainer , 16 Inch Butterfly Valve , We intention at Ongoing system innovation, management innovation, elite innovation and market place innovation, give full play into the overall advantages, and frequently strengthen services excellent.

China New ProductStainless Steel Flange Gate Valve - flanged knife gate valve pneumatic actuator – Jinbin Valve Detail:

flanged knife gate valve pneumatic actuator

Design Features Design & Manufacture: API 602 Size Range :2″ to 42″ N. B. Pressure Classes :ANSI 150, PN6, PN10, PN16 End Connections : Flanged & WAFER Materials (Standard) Standard Constructions Steel:Cast Carbon Steel A216 Gr WCB Body and Bonnet. F316 Stem & Gate, Resilient or Metal Seating Stem packing PTFE / graphite composite. Iron:Cast Iron A126 GR. B Body and Bonnet. F304 Stem & Gate, Resilient or Metal Seating Stem packing PTFE / graphite composite. Manufacturing to NACE MR-01-75 on request. Available also in low temperature steels, low alloy steels, stainless steels, duplex type stainless steels and other exotic materials. Various trim materials available to suit service conditions. OperationManual, Electric, Hydrau-Pneumatic Actuator Standards ComplianceMSS SP-81Face to Face Dimension: MSS SP-81 Pre-temperature Rating: ANSI B16.34 Flanged Dimension: ANSI B16.5, DIN2533 Inspect & Test: API 598 Quality Assurance Accredited with ISO 9001 and API Q1 & CE Quality Assurance Programmes

Design Features
Design & Manufacture: API 602
Size Range :2″ to 42″ N. B.
Pressure Classes :ANSI 150, PN6, PN10, PN16
End Connections : Flanged & WAFER
Materials (Standard)
Standard Constructions Steel:Cast Carbon Steel A216 Gr WCB Body and Bonnet. F316 Stem & Gate, Resilient or Metal Seating Stem packing PTFE / graphite composite. Iron:Cast Iron A126 GR. B Body and Bonnet. F304 Stem & Gate, Resilient or Metal Seating Stem packing PTFE / graphite composite.
Manufacturing to NACE MR-01-75 on request. Available also in low temperature steels, low alloy steels, stainless steels, duplex type stainless steels and other exotic materials. Various trim materials available to suit service conditions.
OperationManual, Electric, Hydrau-Pneumatic Actuator
Standards ComplianceMSS SP-81Face to Face Dimension: MSS SP-81 Pre-temperature Rating: ANSI B16.34 Flanged Dimension: ANSI B16.5, DIN2533 Inspect & Test: API 598
Quality Assurance Accredited with ISO 9001 and API Q1 & CE Quality Assurance Programmes

flanged knife gate valve pneumatic actuator

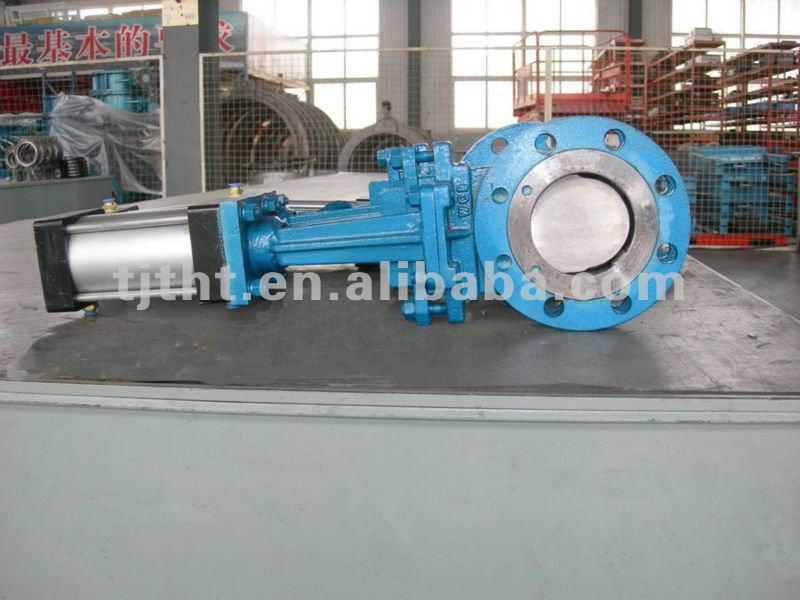

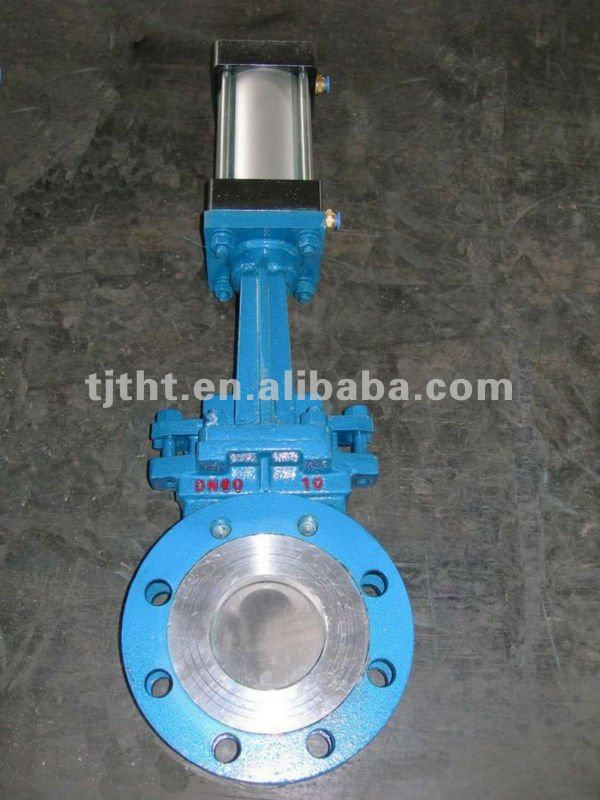

Product detail pictures:
