China China OEM 100mm Gate Valve Price - Worm actuated valve-eccentric flanged butterfly type – Jinbin Valve Manufacturer and Supplier

China OEM 100mm Gate Valve Price - Worm actuated valve-eccentric flanged butterfly type – Jinbin Valve

Short Description:

Worm actuated valve-eccentric flanged butterfly type Size: 2”-80” / 40mm – 2000 mm Design standard: API 609, BS EN 593. Face-to-Face dimension: API 609, BS 5155, ISO 5752. Flange Drilling: ANSI B 16.1, BS4504, DIN PN 10 / PN 16, JIS 5K, 10K, 16K. Test: API 598. Working Pressure PN10 / PN16 Testing Pressure Shell: 1.5 times rated pressure, Seat: 1.1 times rated pressure. Working Temperature -10°C to 80°C (NBR) -10°C to 120°C (EPDM) Suitable Media Water, Oil and gas. ...

Send email to us Email WhatsApp

Product Detail

Product Tags

Feedback (2)

We retain bettering and perfecting our goods and service. At the same time, we perform actively to do research and enhancement for Api Standard Basket Strainer , Swing Goggle Valve , Butterfly Valve Actuators , We, with great passion and faithfulness, are willing to provide you with perfect services and striding forward with you to create a bright future.

China OEM 100mm Gate Valve Price - Worm actuated valve-eccentric flanged butterfly type – Jinbin Valve Detail:

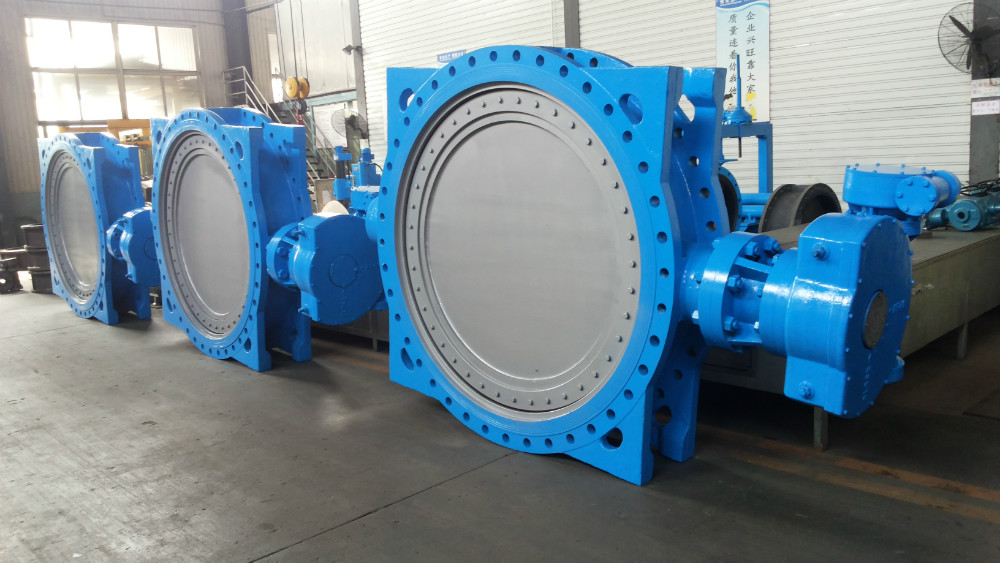

Worm actuated valve-eccentric flanged butterfly type

Worm actuated valve-eccentric flanged butterfly type

Size: 2”-80” / 40mm – 2000 mm

Design standard: API 609, BS EN 593.

Face-to-Face dimension: API 609, BS 5155, ISO 5752.

Flange Drilling: ANSI B 16.1, BS4504, DIN PN 10 / PN 16, JIS 5K, 10K, 16K.

Test: API 598.

Worm actuated valve-eccentric flanged butterfly type

Working Pressure	PN10 / PN16
Testing Pressure	Shell: 1.5 times rated pressure, Seat: 1.1 times rated pressure.
Working Temperature	-10°C to 80°C (NBR) -10°C to 120°C (EPDM)
Suitable Media	Water, Oil and gas.

Worm actuated valve-eccentric flanged butterfly type

Parts	Materials
Body	ductile iron, carbon steel, stainless steel
Disc	Nickel ductile iron / Al bronze / Stainless steel
Sealing	EPDM / NBR / VITON / PTFE
Stem	Stainless steel

Worm actuated valve-eccentric flanged butterfly type

The product is used for throttling or shutting off the flow of corrosive or non corrosive gased, liquids and semi liquid. It can be installed in any selected position in pipelines in the industries of petroleum processing, chemicals, food, medicine, textile, paper making, hydroelectricity engineering, building, water supply and sewage, metallurgy, energy engineering as well as light industry.

Worm actuated valve-eccentric flanged butterfly type

Tianjin Tanggu Jinbin Valve Co., Ltd. was founded in 2004, with registered capital of 113 million yuan, 156 employees, 28 sales agents of China,covering an area of 20,000 square meters in total, and 15,100 square meters for factories and offices.It is a valve manufacturer engaged in professional R&D, production and sales,a joint-stock enterprise integrating science, industry and trade.

The company now has 3.5m vertical lathe, 2000mm * 4000mm boring and milling machine and other large processing equipment, multi-functional valve performance testing device and a series of perfect testing equipment
