Short Description:

 Microresistance slow closing dual plate Check Valve For BS 4504 BS EN1092-2 PN10 / PN16/ PN25 flange mounting. Face-to-Face dimension conforms to ISO 5752 / BS EN558. Epoxy fusion coating. Working Pressure PN10 / PN16 / PN25 Testing Pressure Shell: 1.5 times rated pressure, Seat: 1.1 times rated pressure. Working Temperature -10°C to 80°C (NBR) -10°C to 120°C (EPDM) Suitable Media Water, sewage etc. Part Material Body Ductile Iron/Carbon steel D...


Email WhatsApp

Product Detail

Product Tags

Related Video

Feedback (2)

"Quality very first, Honesty as base, Sincere assistance and mutual profit" is our idea, in an effort to create consistently and pursue the excellence for Wafer Type Butterfly Check Valve , Cast Iron Strainer , Big Butterfly Valve , "Making the Products of Large Quality" is definitely the everlasting purpose of our enterprise. We make unremitting endeavours to know the target of "We Will Always Hold in Pace along with the Time".
Competitive Price for Actuated Butterfly Valves - Microresistance slow closing dual plate Check Valve – Jinbin Valve Detail:

 Microresistance slow closing dual plate Check Valve

Slow closing dual plate Check Valve

For BS 4504 BS EN1092-2 PN10 / PN16/ PN25 flange mounting.

Face-to-Face dimension conforms to ISO 5752 / BS EN558.

Epoxy fusion coating.

Slow closing dual plate Check Valve

Working Pressure

PN10 / PN16 / PN25

Testing Pressure

Shell: 1.5 times rated pressure,

Seat: 1.1 times rated pressure.

Working Temperature

-10°C to 80°C (NBR)

-10°C to 120°C (EPDM)

Suitable Media

Water, sewage etc.

Slow closing dual plate Check Valve

Part

Material

Body

Ductile Iron/Carbon steel

Disc

Ductile Iron / Stainless Steel

Spring

Stainless Steel

Shaft

Stainless Steel

Seat Ring

NBR / EPDM

Cylinder/Piston

Stainless steel

Slow closing dual plate Check Valve

Slow closing dual plate Check Valve

Slow closing dual plate Check Valve

This check valve is used for preventing the back-going of medium in pipelines and equipments, and the pressure of medium will bring the result of opening and closing automatically.When the medium is back-going, valve disc will automaticaly closed to avoid accidents.

Slow closing dual plate Check Valve

Slow closing dual plate Check ValveSlow closing dual plate Check Valve

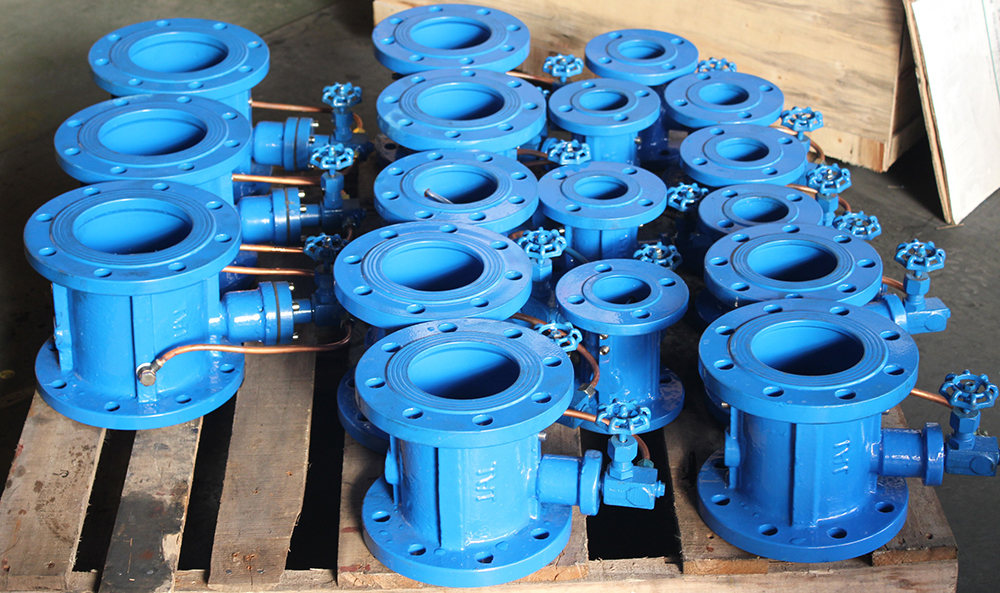

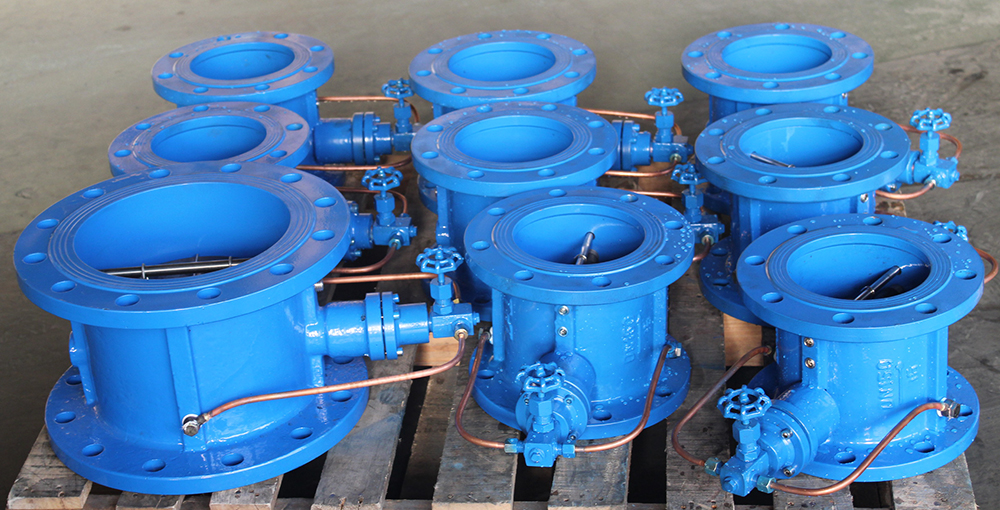

Product detail pictures:

Competitive Price for Actuated Butterfly Valves - Microresistance slow closing dual plate Check Valve – Jinbin Valve detail pictures
