Double Layer Electric Actuator Drive Tipping Valve for Discharging

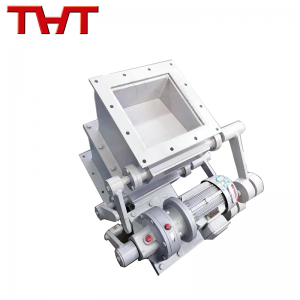

Double Layer Electric Actuator Drive Tipping Valve for Discharging Featured Image

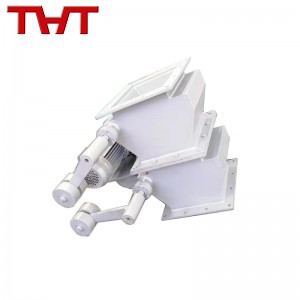

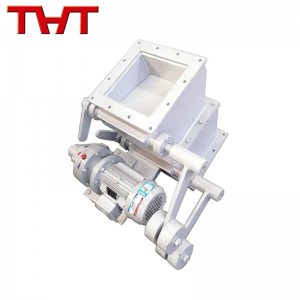

  • Double Layer Electric Actuator Drive Tipping Valve for Discharging
  • Double Layer Electric Actuator Drive Tipping Valve for Discharging
  • Double Layer Electric Actuator Drive Tipping Valve for Discharging

Short Description:

 Double Layer Electric Actuator Drive Tipping Valve For Discharging   Nominal pressure: 0.15MPa Applicable temperature: ≤250 ℃ Drive method: electric Valve features: electrically actuator, the upper and lower flaps open in turn, with the function of discharging and locking the wind. Size： according to customer's requirements.    Part       Body/Flaper   Stem     Nut   Sealing       Hamer  Material  Carbon steel(Q235B)  2Gr13   steel 45#     Metal   Carbon steel(Q235B)   ...


  • FOB Price: US $10 - 9,999 / Piece
  • Min.Order Quantity: 1 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Main Material: Q235B / Stainless steel
  • Operator: Electric actuator
  • Suitable medium: Solid particles, dust materials
  • Discharge capacity: 18M3/h
  • Brand: THT
  • Orignal : China
    • Download as PDF

    Product Detail

    Product Tags

     Double Layer Electric Actuator Drive Tipping Valve For Discharging

     Electric Blind valve Slide damper closed type

    Nominal pressure: 0.15MPa

    Applicable temperature: ≤250 ℃

    Drive method: electric
Valve features: electrically actuator, the upper and lower flaps open in turn, with the function of discharging and locking the wind.

Size： according to customer's requirements.
    Electric Blind valve Slide damper closed type
       Part       Body/Flaper   Stem     Nut   Sealing       Hamer
     Material  Carbon steel(Q235B)  2Gr13   steel 45#     Metal   Carbon steel(Q235B)



    Electric Blind valve Slide damper closed type

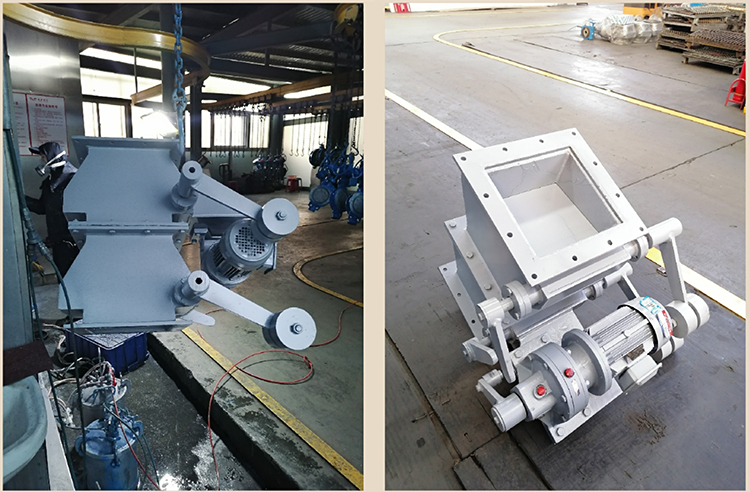

155

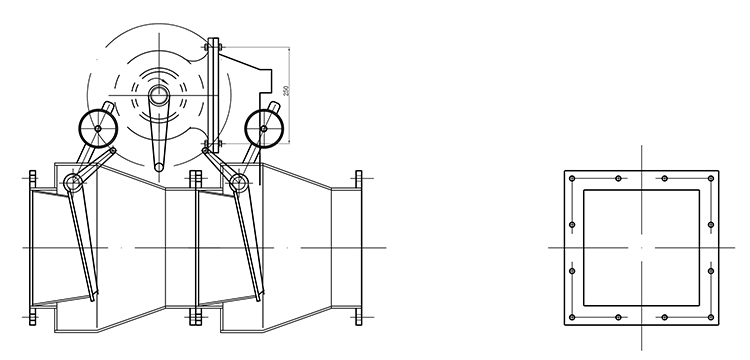

Drawing 1

    Drawing of double layers discharge valve

    Electric Blind valve Slide damper closed type

    It plays the role of wind-locking and discharging on the pipelines that transport powder and granular
materials.
