Short Description:

Handle soft back butterfly valve Size: 2”-12”/ 50mm –300 mm Design standard: API 609, BS EN 593. Face-to-Face dimension: API 609, DIN 3202 k1, ISO 5752, BS 5155, MSS SP-67. Flange Drilling: ANSI B 16.1, BS4504, DIN PN 10 / PN 16. Test: API 598. Epoxy fusion coating. Different lever operator. Working Pressure 10 bar / 16 bar Testing Pressure Shell: 1.5 times rated pressure, Seat: 1.1 times rated pressure. Working Temperature -10°C to 80°C (NBR) -10°C to 120°C (EPDM) Sui...


Email WhatsApp

Product Detail

Product Tags

Related Video

Feedback (2)

Our company puts emphasis on the management, the introduction of talented personnel, and the construction of staff building, trying hard to improve the quality and liability consciousness of staff members. Our company successfully attained IS9001 Certification and European CE Certification of Penstock Manufacturers , Cast Iron Sluice Valve , Fully Welded Ball Ball Valve , With advantage of industry management, the business has generally been committed to supporting prospects to become the current market leader in their respective industries.
Excellent quality 3 Inch Check Valve - Handle lever replaceble seat butterfly valve – Jinbin Valve Detail:

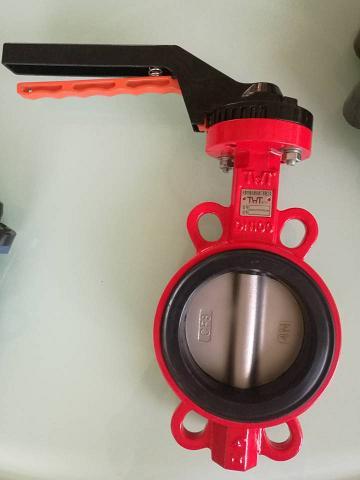

Handle soft back butterfly valve

Size: 2”-12”/ 50mm –300 mm

Design standard: API 609, BS EN 593.

Face-to-Face dimension: API 609, DIN 3202 k1, ISO 5752, BS 5155, MSS SP-67.

Flange Drilling: ANSI B 16.1, BS4504, DIN PN 10 / PN 16.

Test: API 598.

Epoxy fusion coating.

Different lever operator.

Wafer type butterfly valve

Working Pressure

10 bar / 16 bar

Testing Pressure

Shell: 1.5 times rated pressure,

Seat: 1.1 times rated pressure.

Working Temperature

-10°C to 80°C (NBR)

-10°C to 120°C (EPDM)

Suitable Media

Water, Oil and gas.

Wafer type butterfly valve

Parts

Materials

Body

Cast iron / Ductile iron

Disc

Nickel ductile iron / Al bronze / Stainless steel

Seat

EPDM / NBR / VITON / PTFE

Stem

Stainless steel / Carbon steel

Bushing

PTFE

“O” ring

PTFE

Pin

Stainless steel

Key

Stainless steel



Wafer type butterfly valve

The product is used for throttling or shutting off the flow of corrosive or non corrosive gases, liquids and semiliquid. It can be installed in any selected position in pipelines in the industries of petroleum processing, chemicals, food, medicine, textile, paper making, hydroelectricity engineering, building, water supply and sewage, metallurgy, energy engineering as well as light industry.

Wafer type butterfly valve

Product detail pictures:

Excellent quality 3 Inch Check Valve - Handle lever replaceble seat butterfly valve – Jinbin Valve detail pictures
