Short Description:

Grooved end fire protection butterfly valve Size: 2”-12”/ 50mm –300 mm Design standard: API 609, BS EN 593. Face-to-Face dimension: API 609, DIN 3202 k1, ISO 5752, BS 5155, MSS SP-67. Flange Drilling: ANSI B 16.1, BS4504, DIN PN 10 / PN 16. Test: API 598. Epoxy fusion coating. Different lever operator. Working Pressure 10 bar / 16 bar Testing Pressure Shell: 1.5 times rated pressure, Seat: 1.1 times rated pressure. Working Temperature -10°C to 80°C (NBR) -10°C to 120°C (EP...


Email WhatsApp

Product Detail

Product Tags

Related Video

Feedback (2)

Our organization promises all customers with the first-class products and solutions and the most satisfying post-sale service. We warmly welcome our regular and new clients to join us for 2pcs Ball Valve , Large Size Butterfly Valve , Open Cross Sliding Type Goggle Valve , In our efforts, we already have many shops in China and our products have won praise from customers worldwide. Welcome new and old customers to contact us for the future long term business relationships.
Factory directly Flange Spring No Return Check Valve - Grooved fire protection butterfly valve – Jinbin Valve Detail:

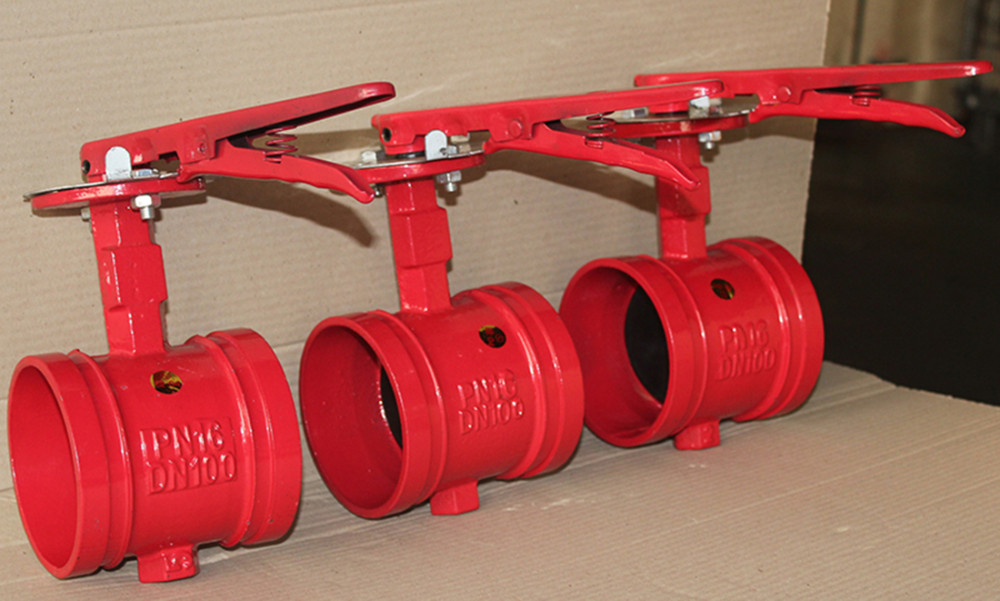

Grooved end fire protection butterfly valve

Grooved butterfly valve

Size: 2”-12”/ 50mm –300 mm

Design standard: API 609, BS EN 593.

Face-to-Face dimension: API 609, DIN 3202 k1, ISO 5752, BS 5155, MSS SP-67.

Flange Drilling: ANSI B 16.1, BS4504, DIN PN 10 / PN 16.

Test: API 598.

Epoxy fusion coating.

Different lever operator.

Grooved butterfly valve

Working Pressure

10 bar / 16 bar

Testing Pressure

Shell: 1.5 times rated pressure,

Seat: 1.1 times rated pressure.

Working Temperature

-10°C to 80°C (NBR)

-10°C to 120°C (EPDM)

Suitable Media

Water, Oil and gas.

Grooved butterfly valve

Parts

Materials

Body

Cast iron / Ductile iron

Disc

Nickel ductile iron / Al bronze / Stainless steel

Seat

EPDM / NBR / VITON / PTFE

Stem

Stainless steel / Carbon steel

Bushing

PTFE

“O” ring

PTFE

Pin

Stainless steel

Key

Stainless steel

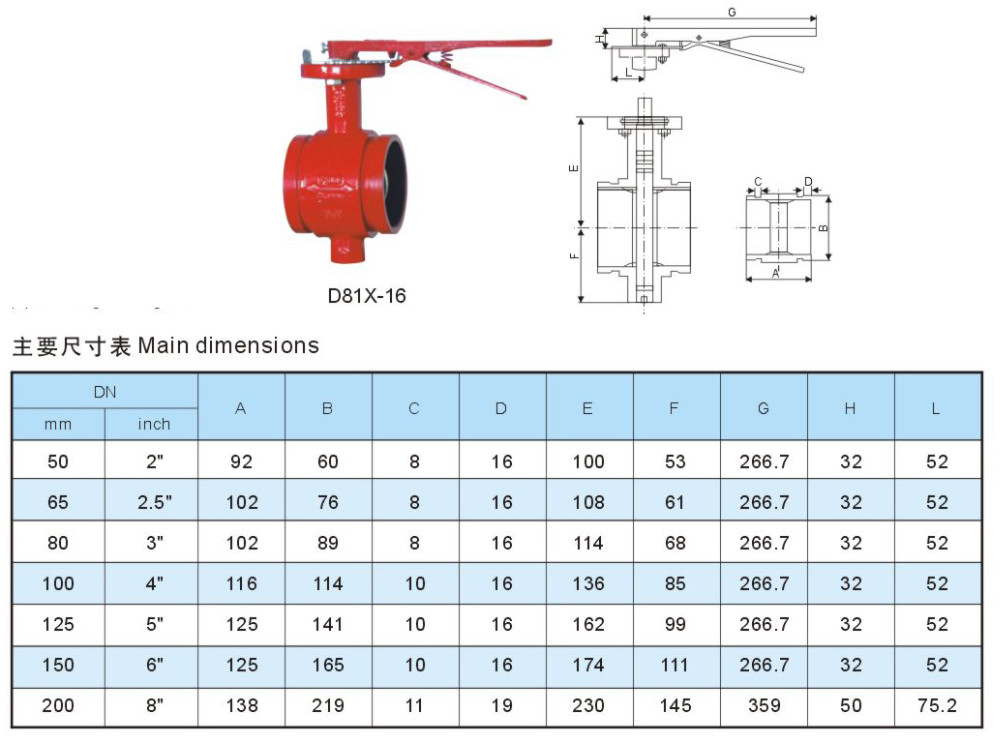

Technical data:Grooved butterfly valve

Grooved butterfly valve

Grooved butterfly valve

Grooved butterfly valveGrooved butterfly valve

Structure and application:

Fire butterfly groove between the United States and Germany are the introduction of similar design and manufacture of advanced products and a series of new connection valves.It has installed express,simple,simple,safe,reliable,not subject  to restrictions on the installation site,piping and valves to facilities maintenance,noise and vibration have a certain perspective of the scope has to overcome the pipelines to connect the different axis arising from poor imitation to solve the temperature difference have advantage.

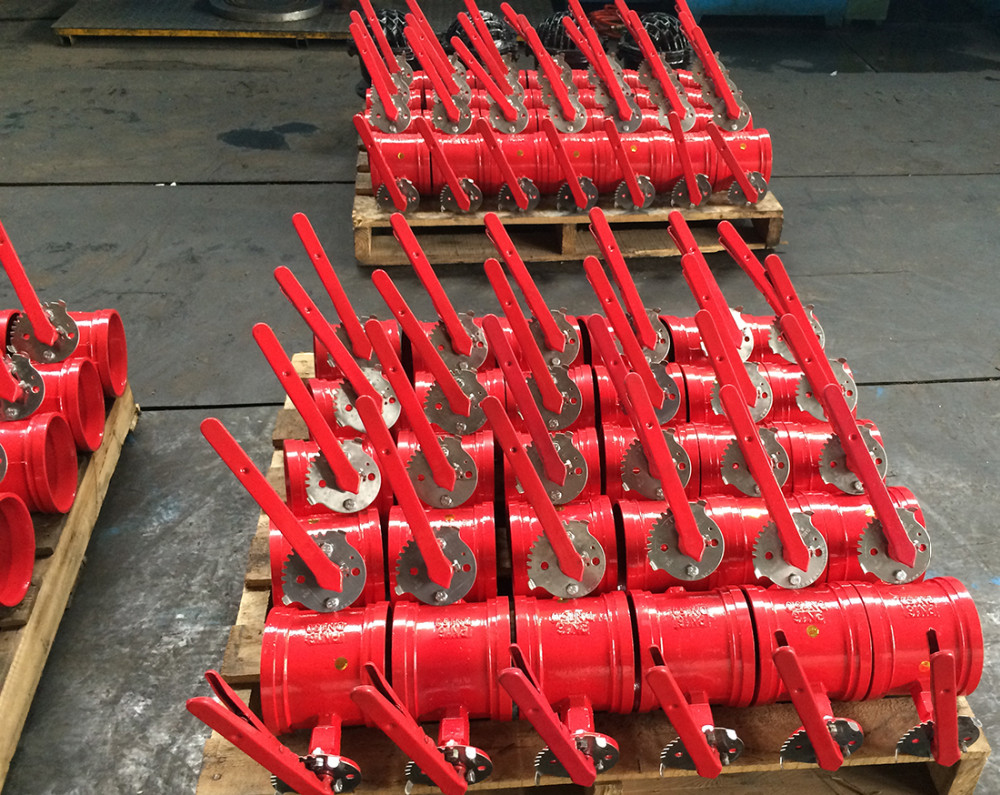

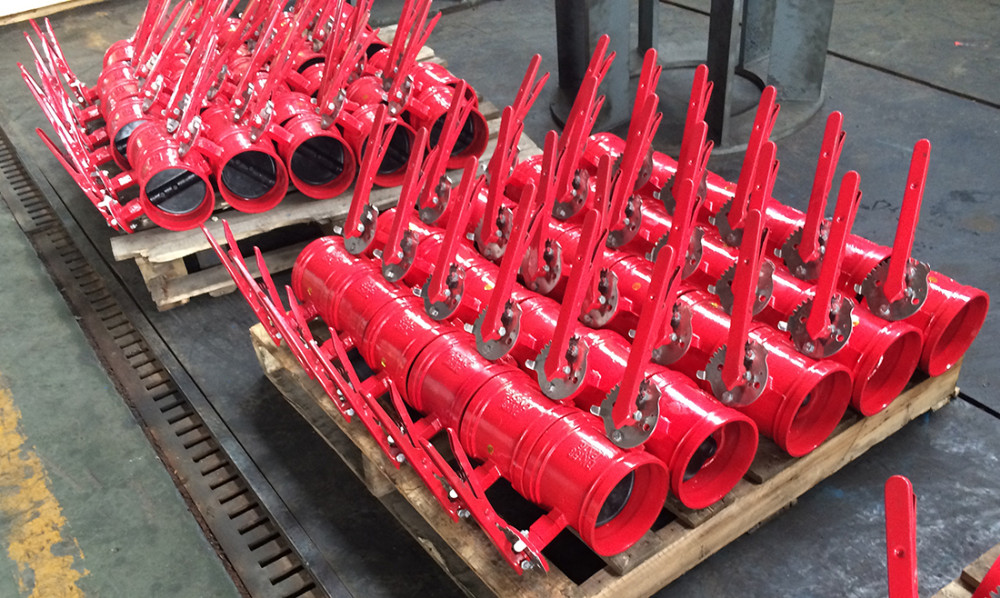

Product detail pictures:

Factory directly Flange Spring No Return Check Valve - Grooved fire protection butterfly valve – Jinbin Valve detail pictures

Factory directly Flange Spring No Return Check Valve - Grooved fire protection butterfly valve – Jinbin Valve detail pictures
