Factory Supply Sluice Gate Factory - aeration butterfly type electric exhaust valve – Jinbin Valve Detail:

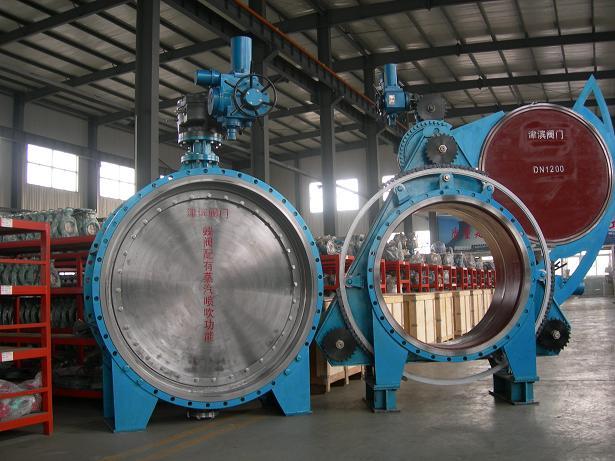

aeration butterfly type electric exhaust valve

Ventilation air damper

1. PN0.01Mpa DN100-3000mm

2. Tem: </=300C3.. Media: air, air with dust4. leakage: <1.5%5. manual, electric, pneumatic6. ISO

Welded butterfly valve

Norminal Pressure Mpa 0.05 0.10 0.15 0.25
Sealing Test 0.055 0.11 0.165 0.275
Sheel Test 0.075 0.15 0.225 0.375
Working Temperature -20-100oC -20-200 oC -20-300 oC -20-45 oC
Suitable Media Air, Coal gas, dusty gas
Supply Voltage 380V AC

Welded butterfly valve

Part Body/Disc Compensator
Material Stainless steel 304/316/316L Stainless steel

Technical Data:

Please fell free to contact us to get the technical drawing.

Ventilation air damper

Welded butterfly valve

This product is used for on-off and regulation in ventilating and environmental protection system. It is welded from high property casting steel with small shape, light in weight, large ventilating area, smart on-off performance, could adopt operating on site and remote-control!

This product is suitable to use in metallurgy, mining, electric station, building material, mechinical, medicine and light industry etc.
