High definition Wafer Check Valve - Pneumatic actuated flanged ball valve – Jinbin Valve Detail:

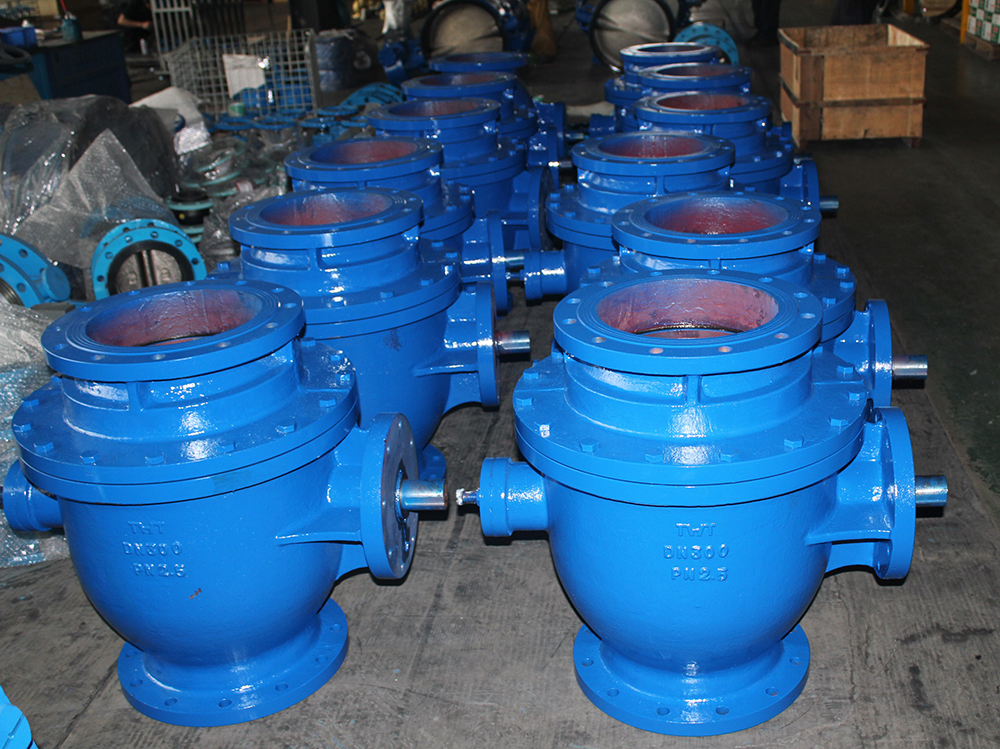

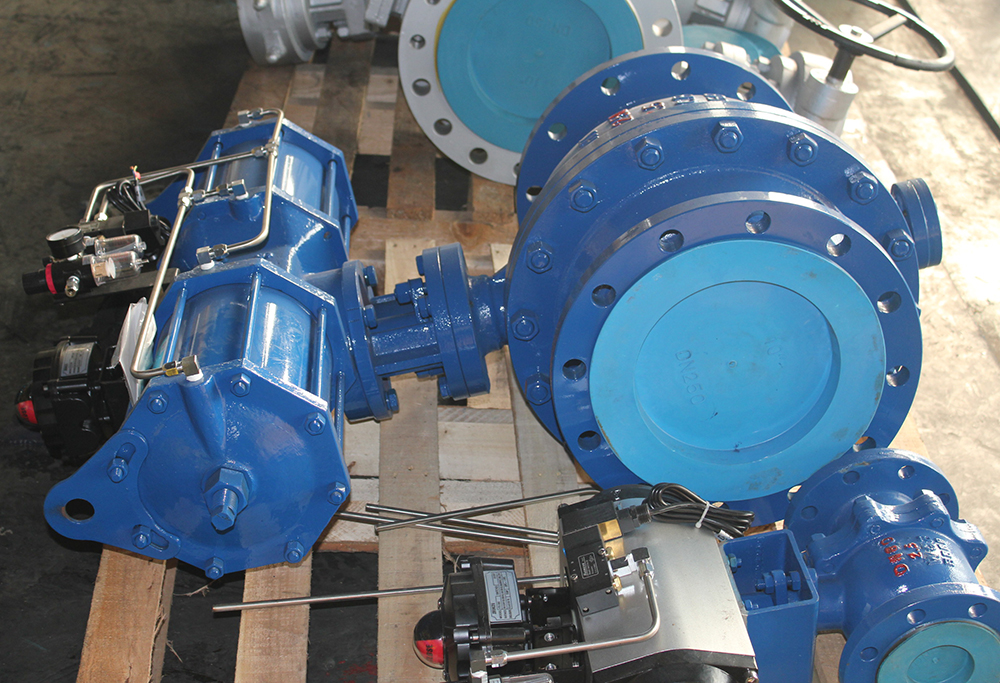

Pneumatic actuated Flange Ball valve

Pneumatic actuated flanged ball valve

Size: DN200-DN600

Design as API608.

Face-to-Face dimension conforms to ANSI B16.10.

Flange drilling is suitable for BS EN1092-2 PN10 / PN16 / PN25.

Temperature and pressure acc to ANSI B16.25.

Test as API598.

Pneumatic actuated flanged ball valve

Nominal Presesure

(MPA)

 Shell Test Water Seal Test
Mpa Mpa

0.25

 0.375 2.75

Pneumatic actuated flanged ball valve

No.

Part

Material

1

Body/Wedge

Carbon steel (WCB)

2

Stem

SS416 (2Cr13) / F304/F316

3

Seat

PTFE

4

Ball

SS

5

Packing

(2 Cr13) X20 Cr13

Pneumatic actuated flanged ball valve

Pneumatic actuated flanged ball valve

Pneumatic actuated flanged ball valve

Product detail pictures:

High definition Wafer Check Valve - Pneumatic actuated flanged ball valve – Jinbin Valve detail pictures
