High PerformanceHandle Manual Wafer Center Butterfly Valve - Full Fluorine-lined butterfly valve – Jinbin Valve Detail:

 Full Fluorine-lined butterfly valve



The The butterfly plated with the fluorine-matching butterfly valve is installed in the diameter direction of the pipe. The medium is completely lined with fluorine. In the cylindrical passage of the butterfly valve body, the disc-shaped disc rotates around the axis, and the rotation angle is between 0° and 90°. When the rotation is 90°, the valve is fully open.



Bare stem flanged butterfly valve



Working Pressure

10 bar / 16 bar

Testing Pressure

Shell: 1.5 times rated pressure,

Seat: 1.1 times rated pressure.

Working Temperature

-10°C to 80°C (NBR)

-10°C to 120°C (EPDM)

Suitable Media

Water, Oil and gas.



Bare stem flanged butterfly valve



Parts

Materials

Body

PTFE

Disc

Nickel ductile iron / Al bronze / Stainless steel

Seat

 PTFE

Stem

Stainless steel / Carbon steel

Bushing

PTFE

“O” ring

PTFE

Worm gearbox

Cast iron / Ductile iron





Bare stem flanged butterfly valve



The  butterfly valve can be widely used for regulating and intercepting fluid lines such as hydropower, sewage, construction, air conditioning, petroleum, chemical, food, medicine, textile, papermaking, water supply and drainage, etc.



Bare stem flanged butterfly valve

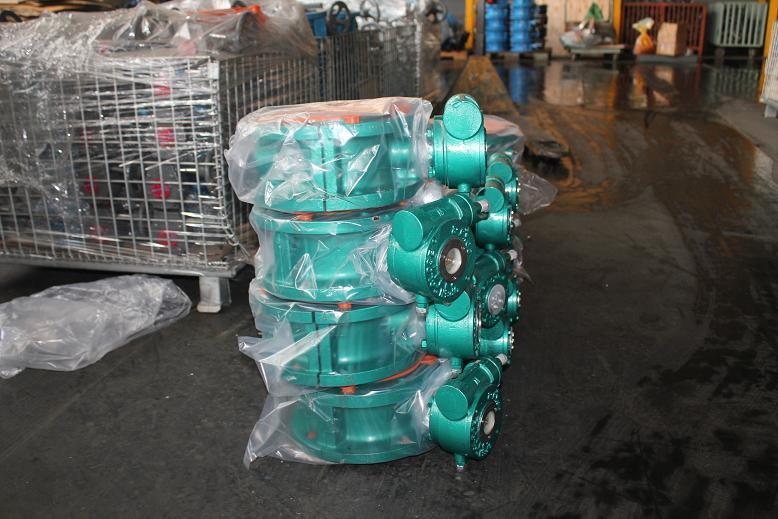

Product detail pictures:

High PerformanceHandle Manual Wafer Center Butterfly Valve - Full Fluorine-lined butterfly valve – Jinbin Valve detail pictures
