High temperature flue gas cement guillotine dampers
High temperature flue gas cement guillotine dampers
1. Manufacturing and design standard: JB / t8692-2013 flue butterfly valve
2. Structural length: gbt1221-2005 metal valve structural length
3. Flange standard: GB / t9199
4. Inspection standard: GB / t13927-2008 industrial valve pressure test:
5. After assembly, conduct trial opening and closing operation. Multiple times of opening and closing require flexible operation without jamming.
| 1 | Stem | 2520 |
| 2 | Packing | Graphite |

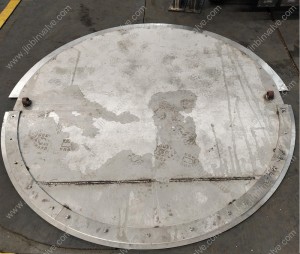

| 3 | Disc | 2520 |

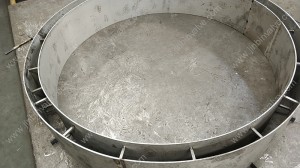

| 4 | Inner body | 2520 |
| 5 | Isolation | Refractory cement |
| 6 | Out body | 2520 |
| 7 | Flange | SS304 |
The pressure is 30KPa, working temperature is 850℃.

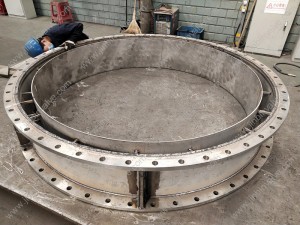

Filling insolation cement to the body
Blast furnace gas；Blast furnace gas
