Lowest Price for Goggle Valve - Fixed cone discharge valve – Jinbin Valve Detail:

Fixed cone valve

Fixed cone valve is called the inverted cone plunger valve. It is known as Howell-bunger valve with thres components: actuation mechanism, plug and body. It offen used in spillway of dams or power plants.

Nonimal size: DN100-DN3200;

Nonimal pressure: PN6, PN16.

Temperature: -10 ~ 120

Connection type: Flange.

Operator: Wormgear, motorized, pneumatic and hydraulic power.

Fixed cone discharge valve

Nominal pressure Test
PN6 / PN10/ PN16 Body: 1.5 times



Fixed cone discharge valve

Fixed cone discharge valve

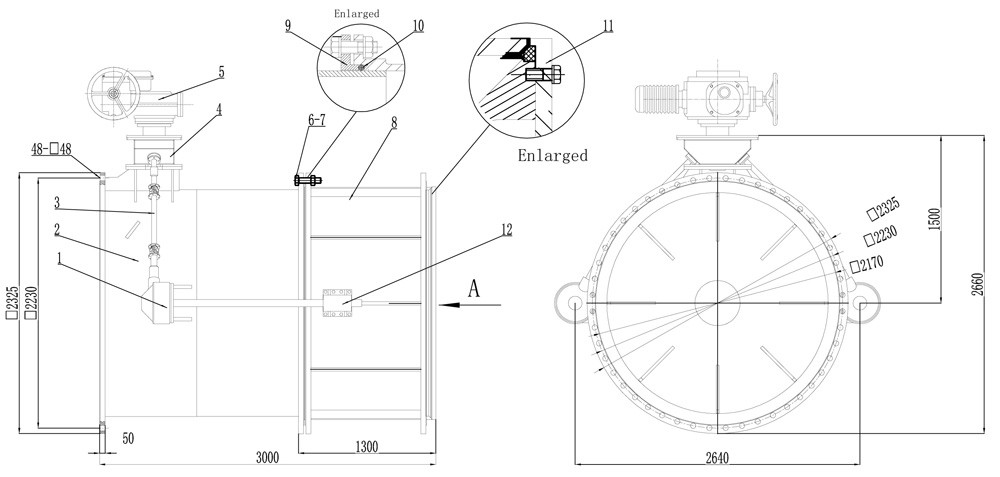

No. Pary Material
1 Wormgear WCB
2 Body S 235JR / AISI 304 / AISI 316
3 Cardan joint S 235JR / AISI 304 / AISI 316
4 Worgear WCB
5 Actuator Out-sourcing
6 Bolt Carbon steel / SS
7 But Carbon steel / SS
8 Sleeve S 235JR / AISI 304 / AISI 316
9 Press ring S 235JR / AISI 304 / AISI 316
10 O-ring NBR / EPDM
11 Flange cover S 235JR / AISI 304 / AISI 316
12 Stem SS420 / SS416

Please contact us for the drawing details.

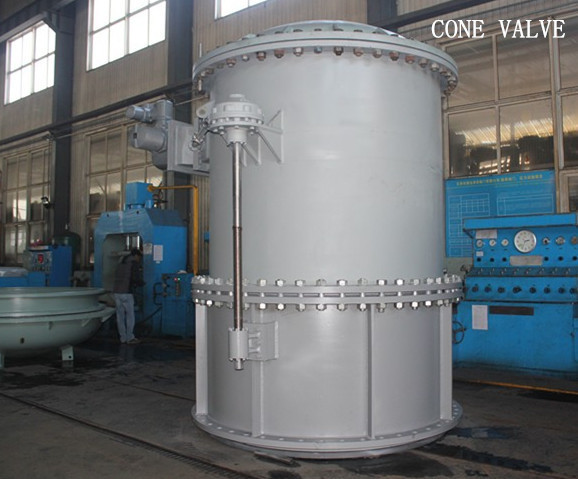

Fixed cone discharge valve

Fixed cone valve provide controlled discharge of water while protecting the downstream environment. It breaks up the water into a large, hollow, expanding spray and can be used in most situations, including sub-merged applications.
