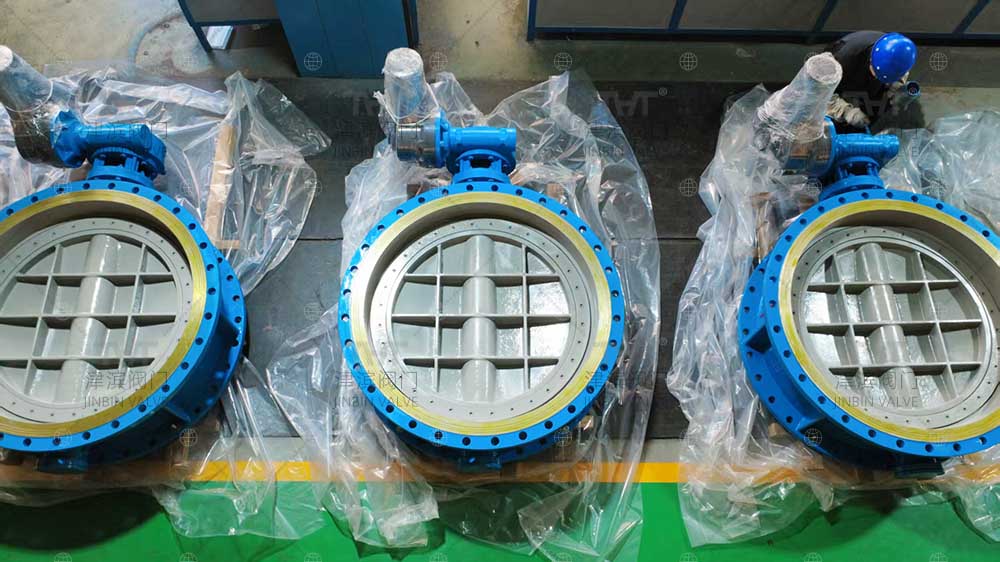

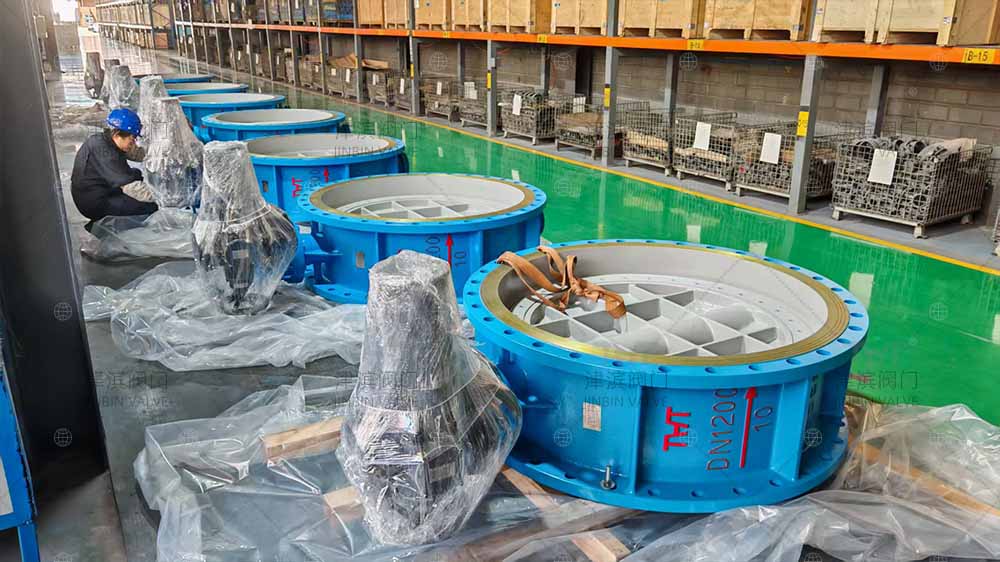

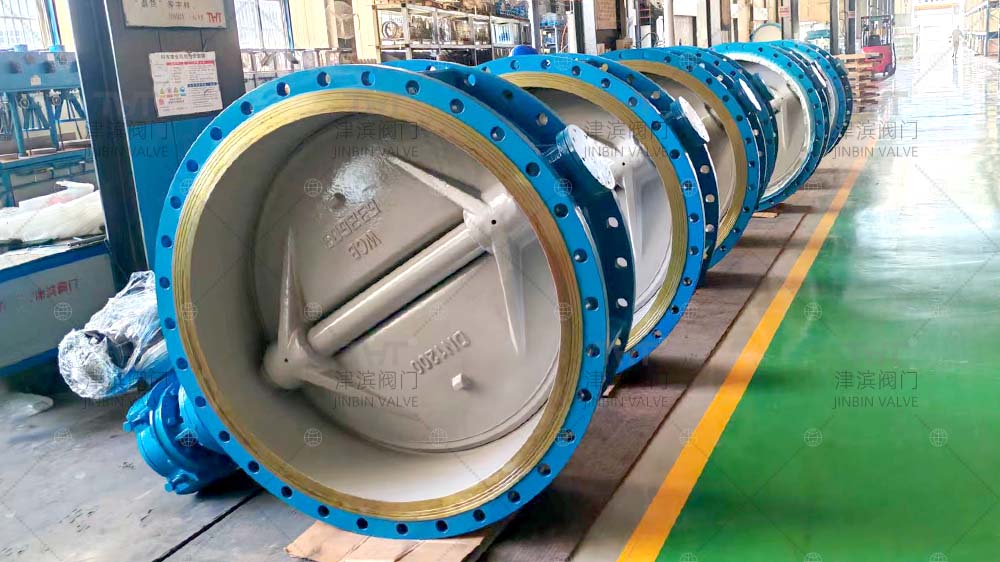

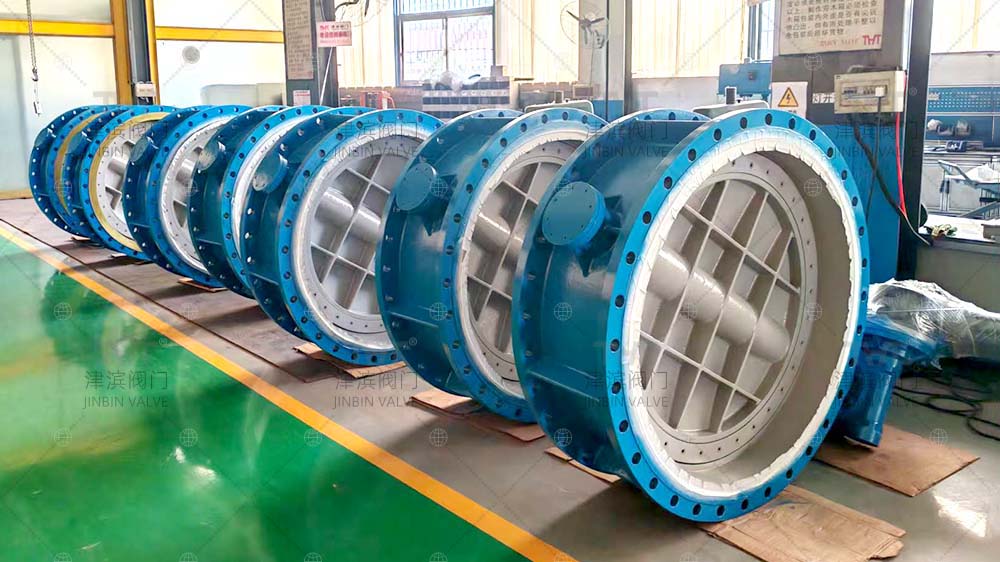

At Jinbin Valve’s workshop, final inspections are underway for a batch of DN1200 carbon steel metal seated butterfly valves, with matching flange expansion joints supplied for each unit.

A triple eccentric hard sealing butterfly valve opens and closes via a 90° rotation of the circular disc around the central shaft of the valve body. The disc rim is fitted with a solid metal sealing face while the valve seat is made of alloy metal. The disc connects or separates from the seat during rotation: fully open at 0° and fully shut off at 90°. Sealing tightness is achieved as medium pressure presses the disc against the seat; eccentric designs further wedge the disc onto the seat upon closure to eliminate clearance and deliver bubble-tight shutoff. Unlike rubber-lined soft-seated alternatives, it relies entirely on rigid metal-to-metal sealing for superior high-temperature and high-pressure resistance.

Core Advantages

1.Outstanding temperature and pressure resistance: Metallic sealing withstands working temperatures ranging from -40℃ to 600℃ for medium and high-pressure pipelines, avoiding high-temperature aging and damage common to soft rubber seals.

2.Superior wear resistance & extended service life: Hardfaced with cobalt or chromium-based alloys, sealing surfaces resist erosion from granular media and outlast soft-seated butterfly valves drastically in dusty and slurry service.

3.Reliable tight sealing: Triple-eccentric construction achieves zero leakage to meet strict shutoff standards for chemical and heating systems.

4.Compact and lightweight design: Small footprint and moderate operating torque, compatible with electric and pneumatic automated actuation.

Application Scope

Widely deployed in main heat supply pipelines for thermal power plants, blast furnace gas lines in metallurgy, high-temperature oil piping for petrochemical refining, municipal steam heating networks, coal slurry pipelines for coal chemical industry, mine tailings conveyance, power plant circulating water & flue gas desulfurization ducts, as well as high-temperature heat transfer oil and high-pressure compressed air pipelines. It is the preferred isolation valve for piping carrying high-temperature and solid-laden media.

Jinbin Valve undertakes custom metallurgical valve projects including blanking valves, penstocks, square & round sluice gates, sewage treatment valves and slide gate valves. Feel free to contact us for inquiries.
