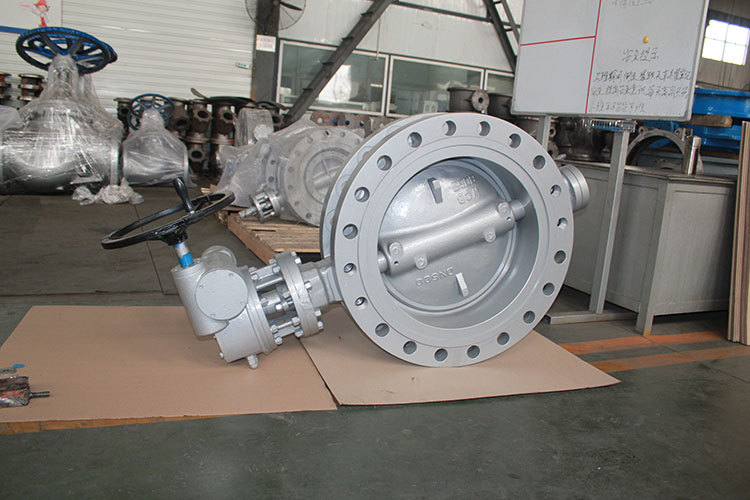

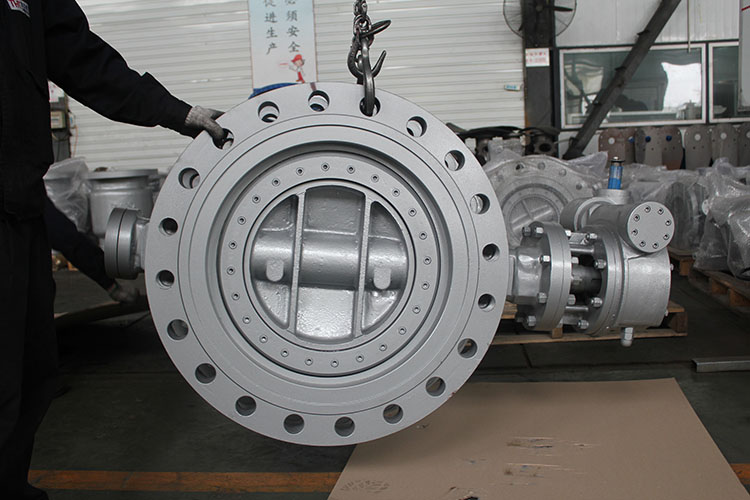

Triple eccentric hard sealing butterfly valve

Short Description:

  Wormgear operated double offset seat butterfly valve Size: 2”-80” / 40mm – 2000 mm Design standard: API 609, BS EN 593. Face-to-Face dimension: API 609, BS 5155, ISO 5752. Flange Drilling: ANSI B 16.1, BS4504, DIN PN 10 / PN 16, JIS 5K, 10K, 16K. Test: API 598. Working Pressure PN10 / PN16 Testing Pressure Shell: 1.5 times rated pressure, Seat: 1.1 times rated pressure. Working Temperature -10°C to 80°C (NBR) -10°C to 120°C (EPDM) Suitable Media Water, Oil ...


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Product Detail

    Product Tags



    Wormgear operated double offset seat butterfly valve

    Worm actuated eccentric flanged butterfly valve

    Size: 2”-80” / 40mm – 2000 mm

    Design standard: API 609, BS EN 593.

    Face-to-Face dimension: API 609, BS 5155, ISO 5752.

    Flange Drilling: ANSI B 16.1, BS4504, DIN PN 10 / PN 16, JIS 5K, 10K, 16K.

    Test: API 598.

    Worm actuated eccentric flanged butterfly valve

    Working Pressure

    PN10 / PN16

    Testing Pressure

    Shell: 1.5 times rated pressure,

    Seat: 1.1 times rated pressure.

    Working Temperature

    -10°C to 80°C (NBR)

    -10°C to 120°C (EPDM)

    Suitable Media

    Water, Oil and gas.

    Worm actuated eccentric flanged butterfly valve

    Parts

    Materials

    Body

    Cast iron, ductile iron, carbon steel, stainless steel

    Disc

    Nickel ductile iron / Al bronze / Stainless steel

    Seat

    EPDM / NBR / VITON / PTFE

    Stem

    Stainless steel / Carbon steel

    Bushing

    PTFE

    “O” ring

    PTFE

    Worm gearbox

    Cast iron / Ductile iron

    Worm actuated eccentric flanged butterfly valve

    The product is used for throttling or shutting off the flow of corrosive or non corrosive gased, liquids and semi liquid. It can be installed in any selected position in pipelines in the industries of petroleum processing, chemicals, food, medicine, textile, paper making, hydroelectricity engineering, building, water supply and sewage, metallurgy, energy engineering as well as light industry.

    Worm actuated eccentric flanged butterfly valve
