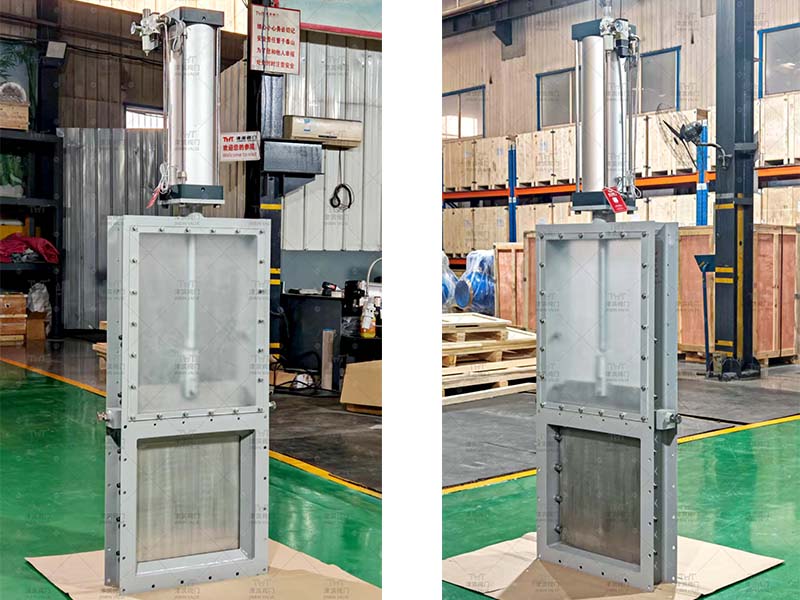

The stainless steel 304 pneumatic sliding gate valve uses a pneumatic actuator to drive the gate to move horizontally to achieve on-off. It is a core equipment for conveying and cutting off powder, granular and block materials, featuring high efficiency, reliability and strong adaptability. （Picture: Workers are conducting on-off debugging on the stainless steel pneumatic sliding gate control valve. The size of the stainless steel sliding gate valve is 480×480 and 330×300）

Its core advantages are prominent. It opens and closes quickly and is suitable for automation. The pneumatic actuator responds within ≤1 second, can quickly cut off the medium, achieve remote control and linkage, and is suitable for frequent start-stop scenarios. The seal is reliable and leak-proof. The soft seal can achieve zero leakage under normal temperature and pressure, while the hard seal can withstand high pressure and has excellent bidirectional cut-off performance.

Wear-resistant, stain-resistant and not prone to jamming, the 304 stainless steel slide gate valve body flow channel has no grooves, the gate plate can be hardened, and it is equipped with a dust-proof structure, suitable for long-term operation in dusty media. At the same time, it features a simple structure, convenient maintenance, no Angle restrictions for installation, low operating costs, and can be customized with explosion-proof and anti-corrosion models to adapt to various special working conditions.

Stainless steel pneumatic slide gate valves have a wide range of applications and are mainly used in industries such as metallurgy, mining, building materials, power, chemical engineering, grain, and food. They can be used for the transportation and shut-off of media such as cement, fly ash, coal powder, powder raw materials, granular materials, and sludge. They are suitable for various scenarios including bottom unloading, pipeline on-off, flow control, and emergency shut-off, meeting the working conditions of different industries.

Jinbin Valves has 20 years of experience in valve manufacturing. Our gate valves are exported to many countries and have received wide acclaim. If you also have related valve needs, please contact us below!
