OEM Manufacturer Globe Valve - DN200 Stainless steel eccentric flanged butterfly valve factory – Jinbin Valve Detail:

 Stainless steel eccentric flanged butterfly valve

Butterfly valve is mainly consisted of body, stem, disc, seat and driver(lever, gearbox, pneumatic and electric Actuator) and so on. On off and controlling flow of valve are made by turning stem and disc together.

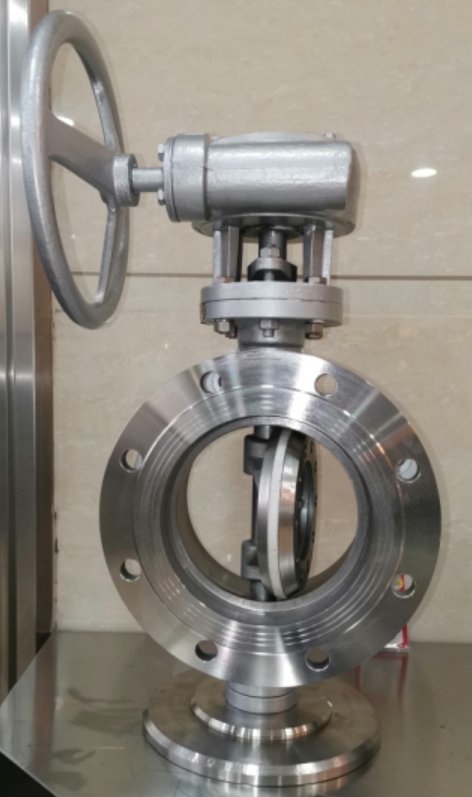

butterfly-valve12

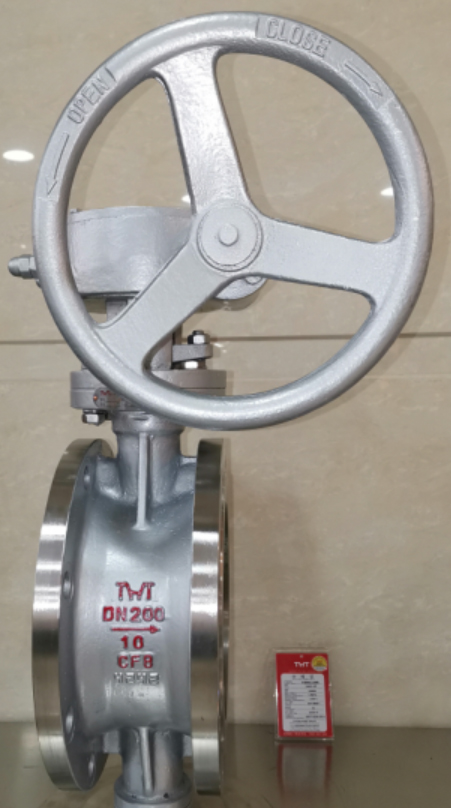

butterfly-valve11

Pressure and Temperature ratings

Size DN200
working pressure 1.0Mpa
shell test 1.5Mpa
seal test 1.1Mpa
END standard EN1092
Face to face EN558-1
Temperature -15-+150℃
Medium water/sewage/sea water/gas etc

Material

part material
body CF8
disc CF8
shaft CF8
Seat seal PTFE
Bolts&Nuts CF8

Specification and data sheet

Size 4″-120″
Pressure PN10/PN16/PN25
Design standard BS EN593/MSS SP67/API609/BS5155
End standard ANSI B16.1/ANSI B16.5/DIN2501/EN1092
Face to face ISO5272/EN558/MSS SP67/API609
Test standard API598/ ISO5208
Operation Handwheel/Worm gear/Electric/Penufactic/Hydraulic
Temperature -15-+150℃
Media Water/sewage/sea water/gas/etc
pressure test shell 1.5
pressure test sealing 1.1

Suitable material

Body Ductile iron/WCB/CF8/CF8M
Disc Ductile iron/WCB/CF8/CF8M
Bonnet Ductile iron/WCB/CF8/CF8M
Seat EPDM/NBR/VITON/PTFE
Shaft SS420/CF8/CF8M
Packing Flexible graphite
O ring Rubber
