Short Description:

 DN200 Stainless steel eccentric flanged butterfly valve factory Butterfly valve is mainly consisted of body, stem, disc, seat and driver(lever, gearbox, pneumatic and electric Actuator) and so on. On off and controlling flow of valve are made by turning stem and disc together.   Size DN200 working pressure 1.0Mpa shell test 1.5Mpa seal test 1.1Mpa END standard EN1092 Face to face EN558-1 Temperature -15-+150℃ Medium water/sewage/sea water/gas etc   pa...


Download as PDF

Product Detail

Product Tags

Related Video

Feedback (2)

We insist on the principle of development of 'High quality, Efficiency, Sincerity and Down-to-earth working approach' to deliver you with great provider of processing for Foot Valve , Double Flange Butterfly Valve , Ptfe Butterfly Valve , Currently, we are wanting ahead to even bigger cooperation with abroad customers according to mutual positive aspects. Be sure to sense free to contact us for more details.
PriceList for Forged Check Valve - DN200 Stainless steel eccentric flanged butterfly valve factory – Jinbin Valve Detail:

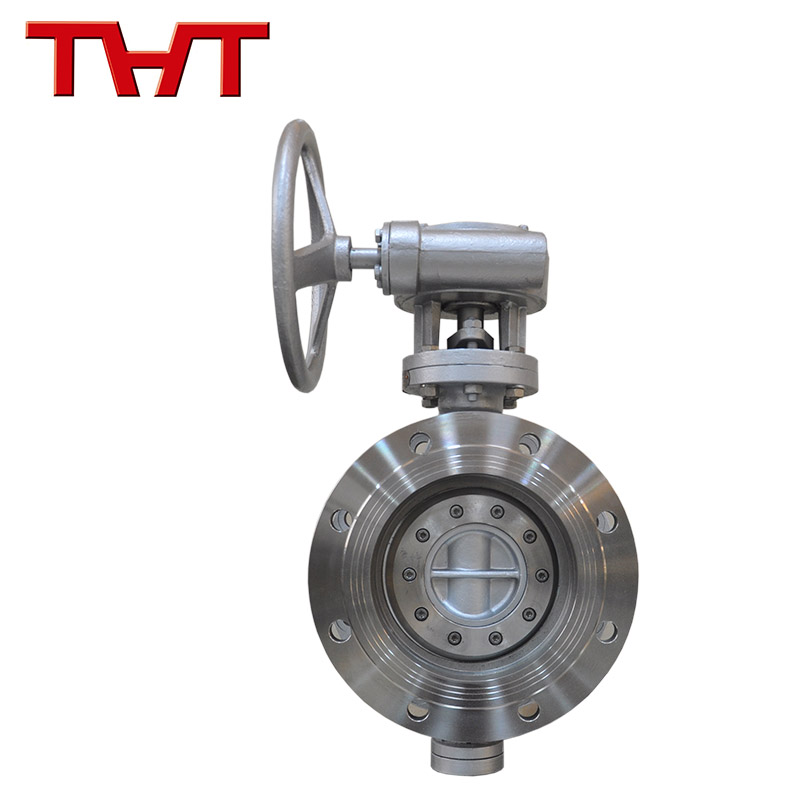

 DN200 Stainless steel eccentric flanged butterfly valve factory

Electric Blind valve Slide damper closed type

Butterfly valve is mainly consisted of body, stem, disc, seat and driver(lever, gearbox, pneumatic and electric Actuator) and so on. On off and controlling flow of valve are made by turning stem and disc together.



Electric Blind valve Slide damper closed type

Size DN200
working pressure 1.0Mpa
shell test 1.5Mpa
seal test 1.1Mpa
END standard EN1092
Face to face EN558-1
Temperature -15-+150℃
Medium water/sewage/sea water/gas etc



Electric Blind valve Slide damper closed type

part material
body CF8
disc CF8
shaft CF8
Seat seal PTFE
Bolts&Nuts CF8

Specification and data sheet

Size 4″-120″
Pressure PN10/PN16/PN25
Design standard BS EN593/MSS SP67/API609/BS5155
End standard ANSI B16.1/ANSI B16.5/DIN2501/EN1092
Face to face ISO5272/EN558/MSS SP67/API609
Test standard API598/ ISO5208
Operation Handwheel/Worm gear/Electric/Penufactic/Hydraulic
Temperature -15-+150℃
Media Water/sewage/sea water/gas/etc
pressure test shell 1.5
pressure test sealing 1.1

Suitable material

Body Ductile iron/WCB/CF8/CF8M
Disc Ductile iron/WCB/CF8/CF8M
Bonnet Ductile iron/WCB/CF8/CF8M
Seat EPDM/NBR/VITON/PTFE
Shaft SS420/CF8/CF8M
Packing Flexible graphite
O ring Rubber



Electric Blind valve Slide damper closed type

1 2 3
