Professional Design Cast Iron Strainer - Pneumatic triple offset metal seat butterfly valve – Jinbin Valve Detail:

Pneumatic triple offset metal seat butterfly valve

Pneumatic triple offset butterfly valve

Size: 40mm – 3600 mm

Design standard: API 609, BS EN 593 etc coudl be cutomized.

Face-to-Face dimension: API 609, BS 5155, ISO 5752.

Flange Drilling: ANSI B 16.1, BS4504, DIN PN2.5, 6, 10 / PN 16, JIS 5K, 10K, 16K.

Test: API 598.

Pneumatic triple offset butterfly valve

Working Pressure

PN2.5/6/10 / PN16

Testing Pressure

Shell: 1.5 times rated pressure,

Seat: 1.1 times rated pressure.

Working Temperature

-30°C to 400°C

Suitable Media

Water, Oil and gas.

Pneumatic triple offset butterfly valve

Parts

Materials

Body

WCB, carbon steel welding, stainless steel

Disc

Nickel ductile iron / Al bronze / Stainless steel

Seat

Stianless steel

Stem

Stainless steel / Carbon steel

Bushing

Grahpit


actuator

pneumatic

Pneumatic triple offset butterfly valve

The product is used for throttling or shutting off the flow of corrosive or non corrosive gased, liquids and semi liquid. It can be installed in any selected position in pipelines in the industries of petroleum processing, chemicals, food, medicine, textile, paper making, hydroelectricity engineering, building, water supply and sewage, metallurgy, energy engineering as well as light industry.

Pneumatic triple offset butterfly valvePneumatic triple offset butterfly valvePneumatic triple offset butterfly valve

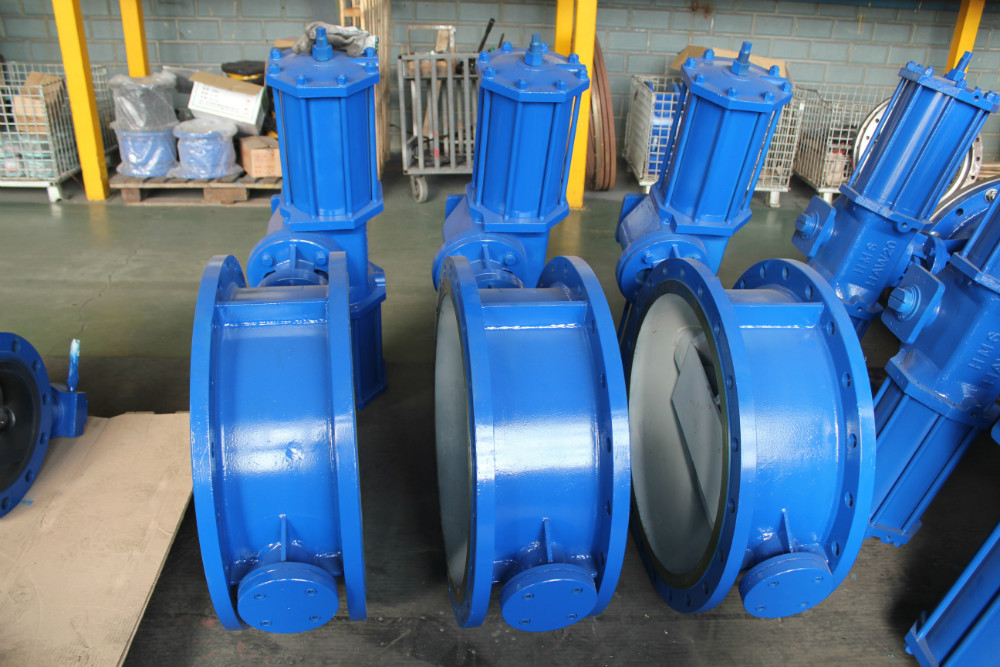

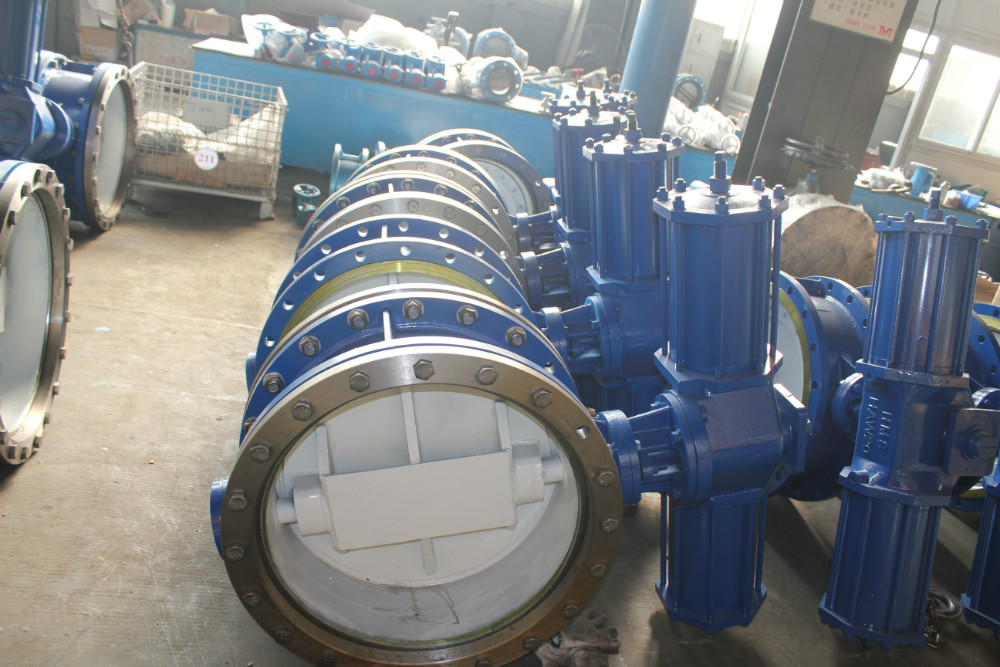

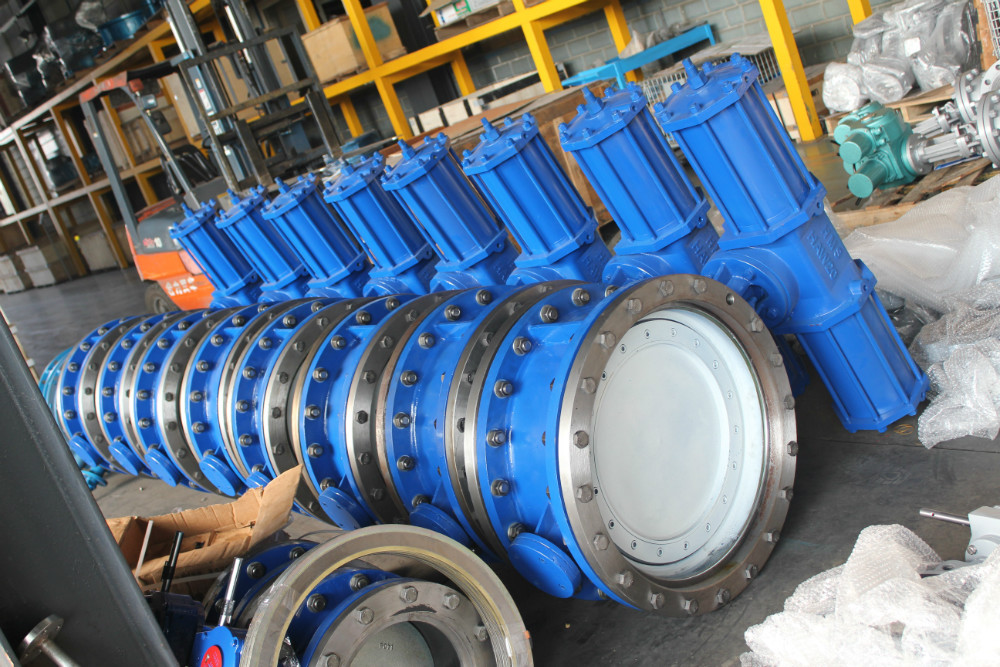

Product detail pictures:

Professional Design Cast Iron Strainer - Pneumatic triple offset metal seat butterfly valve – Jinbin Valve detail pictures

Professional Design Cast Iron Strainer - Pneumatic triple offset metal seat butterfly valve – Jinbin Valve detail pictures

Professional Design Cast Iron Strainer - Pneumatic triple offset metal seat butterfly valve – Jinbin Valve detail pictures
