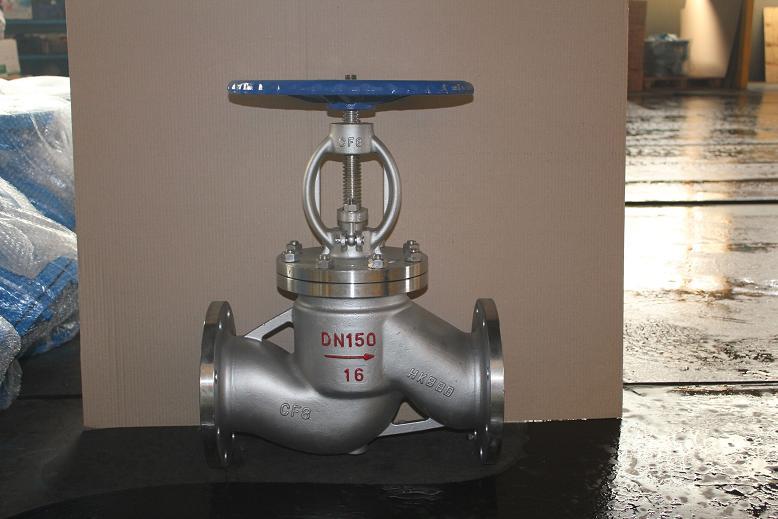

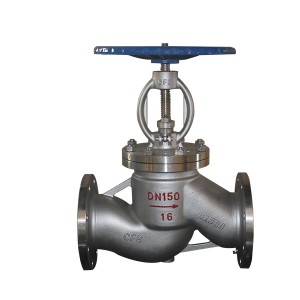

Stainless steel flanged globe valve

Short Description:

Stainless steel flange globe valve Size: DN:15-250mm PN:1.6/2.5/4.0Mpa Suitable medium: anti acid and anti soda3.Suitable Tem.:-10-250 celsius Size: 2”-32” or DN50-DN1000 Pressure:150LB-2500LB, PN16-PN250 or 10K-40K Material: WCB, WCC, LCB, LCC, WC6, C5, C12, CF8, CF8M, CF3, CF3M, CF8C, CN7M, etc. Design & Manufacture Std: API 608, ASME B16.34, API 6D, BS. Face to Face Std: ASME B16.10(JIS B2003), API 6D, DIN3202, ASME B16.25 End connection Std: ASME B16.5, ASME B16.47, JIS B2214, DIN...


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Product Detail

    Product Tags

    Stainless steel flange globe valve


    Size: DN:15-250mm

    PN:1.6/2.5/4.0Mpa

    Suitable medium: anti acid and anti soda3.Suitable Tem.:-10-250 celsius

    Size: 2”-32” or DN50-DN1000

    Pressure:150LB-2500LB, PN16-PN250 or 10K-40K

    Material: WCB, WCC, LCB, LCC, WC6, C5, C12, CF8, CF8M, CF3, CF3M, CF8C, CN7M, etc.

    Design & Manufacture Std: API 608, ASME B16.34, API 6D, BS.

    Face to Face Std: ASME B16.10(JIS B2003), API 6D, DIN3202, ASME B16.25

    End connection Std: ASME B16.5, ASME B16.47, JIS B2214, DIN 2543-2550, ASME B16.34

    Test standard: ISO5208, API598(JIS B2003), API 6D, BS 6775

    Structure Type: Short pattern, regular Pattern, Venturi Panttern, Full bure Pattern

    Operated way: Handwheel, Gear, Pneumatic, Electric Actuator

    Working Pressure

    10 bar / 16 bar/150lb

    Testing Pressure

    Shell: 1.5 times rated pressure,

    Seat: 1.1 times rated pressure.

    Working Temperature

    -10°C to 120°C (EPDM)

    -10°C to 150°C (PTFE)

    Suitable Media

    Water, Oil, and gas.




    Parts

    Materials

    Body

    cast steel

    Disc

    Stainless steel, ductile iron

    Seat

    EPDM / NBR / VITON / PTFE

    Stem

    Stainless steel,2Cr13

    Bushing

    PTFE

    “O” ring

    PTFE

    Pin

    Stainless steel

    Key

    Stainless steel
