China BS5163 RS Resilient wedge gate valve for water Manufacturer and Supplier

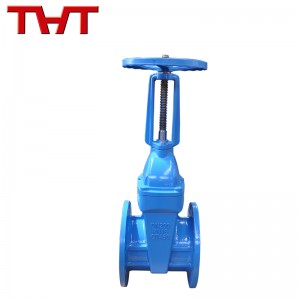

BS5163 RS Resilient wedge gate valve for water

Short Description:

Resilient wedge rising stem gate valve for water BS 5163 Rising stem resilient wedge gate valve is used the stem lifting the disc to control the open and close. It can see the open throught the stem. Rising stem gate valves require enough installation space. Valve Standard: BS EN 13789 BS 5163 Nominal diameter: 2″-48″/DN50–DN600 Working pressure: PN10/16Bar Face-to-face: EN558 Series10 Connection: BS EN1092-2 PN10 / PN16 flange drill. Tightness check: API 598 ISO ...

FOB Price: US $10 - 9,999 / Piece

Min.Order Quantity: 1 Piece/Pieces

Supply Ability: 10000 Piece/Pieces per Month

Send email to us Download as PDF

Product Detail

Product Tags

Resilient wedge rising stem gate valve for water

BS5163 RS Resilient wedge gate valve for water BS 5163 Rising stem resilient wedge gate valve is used the stem lifting the disc to control the open and close. It can see the open throught the stem. Rising stem gate valves require enough installation space.

Valve Standard: BS EN 13789 BS 5163

Nominal diameter: 2″-48″/DN50–DN600

Working pressure: PN10/16Bar

Face-to-face: EN558 Series10

Connection: BS EN1092-2 PN10 / PN16 flange drill.

Tightness check: API 598 ISO 5208 EN12226-2

Epoxy fusion coating.

BS5163 RS Resilient wedge gate valve for water

Working Pressure	PN10 / PN16
Testing Pressure	Shell: 1.5 times rated pressure, Seat: 1.1 times rated pressure.
Working Temperature	-10°C to 80°C (NBR) -10°C to 120°C (EPDM)
Suitable Media	Water, Oil and gas.
