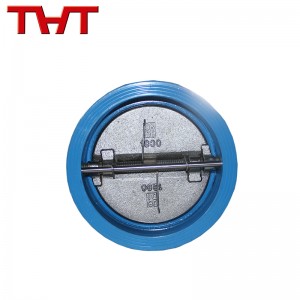

Double plate wafer check valve

Short Description:

Double plate wafer swing check valve For BS 4504 BS EN1092-2 PN10 / PN16/ PN25 flange mounting. Face-to-Face dimension conforms to ISO 5752 / BS EN558. Epoxy fusion coating. Working Pressure PN10 / PN16 / PN25 Testing Pressure Shell: 1.5 times rated pressure, Seat: 1.1 times rated pressure. Working Temperature -10°C to 80°C (NBR) -10°C to 120°C (EPDM) Suitable Media Water, Oil and gas. Part Material Body Ductile Iron / WCB Disc Ductile Iron / ...


  • FOB Price: US $10 - 9,999 / Piece
  • Min.Order Quantity: 1 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Product Detail

    Product Tags

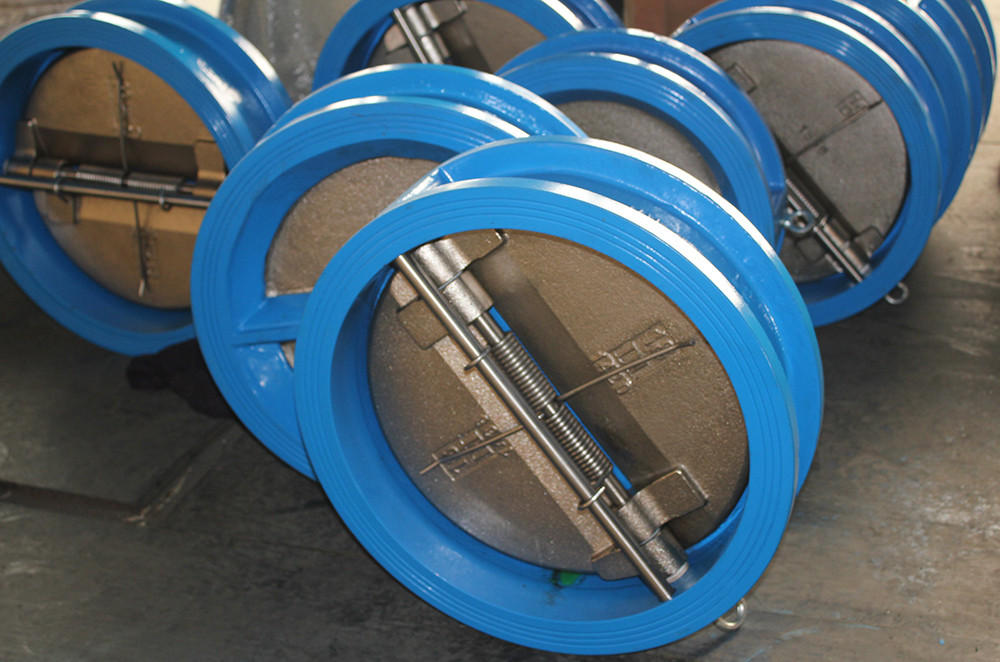

    Double plate wafer swing check valve

    Double plate wafer check valveFor BS 4504 BS EN1092-2 PN10 / PN16/ PN25 flange mounting.

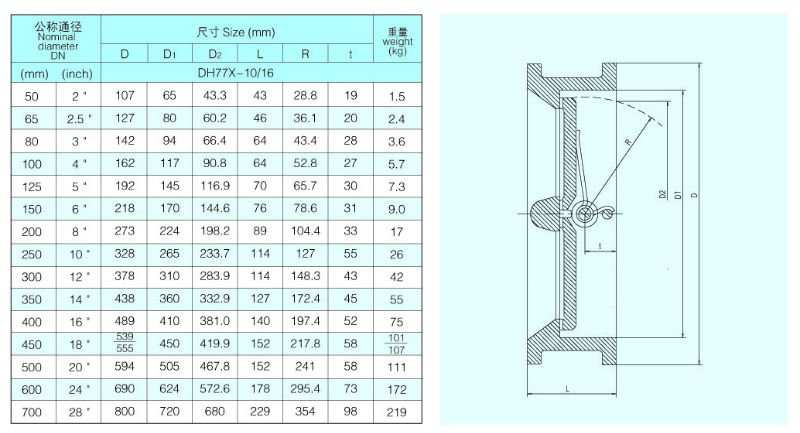

    Face-to-Face dimension conforms to ISO 5752 / BS EN558.

    Epoxy fusion coating.

    Double plate wafer check valve

    Working Pressure

    PN10 / PN16 / PN25

    Testing Pressure

    Shell: 1.5 times rated pressure,

    Seat: 1.1 times rated pressure.

    Working Temperature

    -10°C to 80°C (NBR)

    -10°C to 120°C (EPDM)

    Suitable Media

    Water, Oil and gas.

    Double plate wafer check valve

    Part

    Material

    Body

    Ductile Iron / WCB

    Disc

    Ductile Iron / Al Bronze / Stainless Steel

    Spring

    Stainless Steel

    Shaft

    Stainless Steel

    Seat Ring

    NBR / EPDM

    Double plate wafer check valve

    Double plate wafer check valve

    Double plate wafer check valve

    Double plate wafer check valveDouble plate wafer check valveDouble plate wafer check valve Wafer butterfly check valve is a save-energy product,is manufactured based on the foreign advanced technology and in accordance with relative international standards.This product is featured by excellent retaining performance,high safety and reliability and low flow resistance.It is suitable for systems in the industrials of petrochemicals,food processing,medcine,textitle,paper-making,water supply and drainage,metallurgy,energy and light industry.
