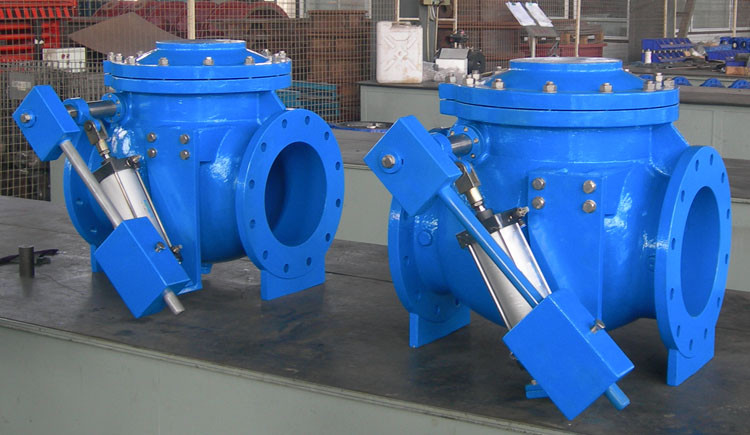

AWWA Pneumatic swing check valve with air cushioned cylinder

AWWA Pneumatic swing check valve with air cushioned cylinder Featured Image
  • AWWA Pneumatic swing check valve with air cushioned cylinder

Short Description:

AWWA swing check valve with air cushioned cylinder Design as AWWA  C-508 For class125/150Lb flange mounting. Epoxy fusion coating. Working Pressure Class 125 / 150 Testing Pressure Shell: 1.5 times rated pressure, Seat: 1.1 times rated pressure. Working Temperature -10°C to 80°C (NBR) -10°C to 120°C (EPDM) Suitable Media Water, sewage Part Material Body Ductile Iron / WCB Disc Ductile Iron +EPDM Spring Stainless Steel Shaft Stai...


  • FOB Price: US $10 - 9,999 / Piece
  • Min.Order Quantity: 1 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
    • Download as PDF

    Product Detail

    Product Tags

    AWWA swing check valve with air cushioned cylinder

    Swing check valve with air cushioned cylinder check valve

    Design as AWWA  C-508

    For class125/150Lb flange mounting.

    Epoxy fusion coating.

    Swing check valve with air cushioned cylinder check valve

    Working Pressure

    Class 125 / 150

    Testing Pressure

    Shell: 1.5 times rated pressure,

    Seat: 1.1 times rated pressure.

    Working Temperature

    -10°C to 80°C (NBR)

    -10°C to 120°C (EPDM)

    Suitable Media

    Water, sewage

    Swing check valve with air cushioned cylinder check valve

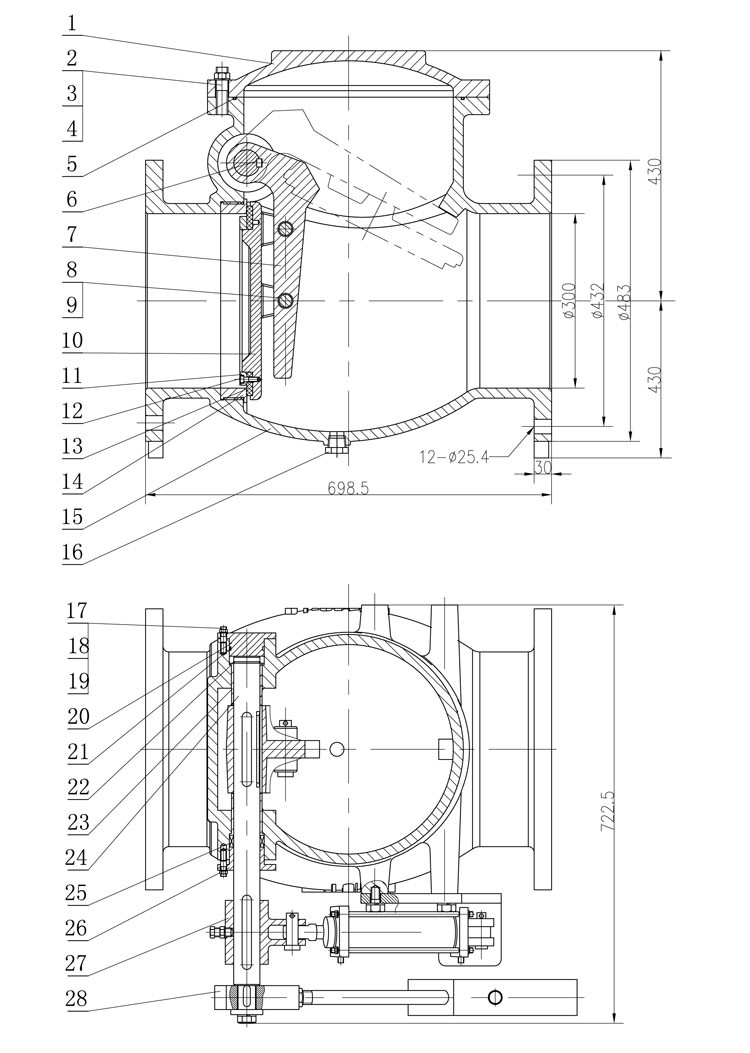

    Part

    Material

    Body

    Ductile Iron / WCB

    Disc

    Ductile Iron +EPDM

    Spring

    Stainless Steel

    Shaft

    Stainless Steel

    Seat Ring

    NBR / EPDM

    Swing check valve with air cushioned cylinder check valve

    NOTE: PLEASE CONTACT US FOR THE TECHNICAL DETAILS.
