Ductile iron foot valve

Short Description:

Size: DN 100 – DN600 Design standard: Manufature, Face-to-Face dimension: GB/T12221-2005 Flange Drilling: ANSI B 16.5, BS EN 1092, DIN 2501 PN 10/16, BS 10 Table E. Test: API 598, EN1266-1,GB/T13927-2008 Working Pressure PN10 Testing Pressure Shell: 1.5 times rated pressure, Seat: 1.1 times rated pressure. Working Temperature -10°C to 350°C Suitable Media Water, sewage Parts Materials Body  ductile iron Disc ductile ironl Seal ring EPD...


  • FOB Price: US $10 - 9,999 / Piece
  • Min.Order Quantity: 1 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Product Detail

    Product Tags

    Motorized Butterfly valve

    Size: DN 100 – DN600

    Design standard: Manufature,

    Face-to-Face dimension: GB/T12221-2005

    Flange Drilling: ANSI B 16.5, BS EN 1092, DIN 2501 PN 10/16, BS 10 Table E.

    Test: API 598, EN1266-1,GB/T13927-2008

    Motorized Butterfly valve

    Working Pressure

    PN10

    Testing Pressure

    Shell: 1.5 times rated pressure,

    Seat: 1.1 times rated pressure.

    Working Temperature

    -10°C to 350°C

    Suitable Media

    Water, sewage

    Motorized Butterfly valve

    Parts

    Materials

    Body

     ductile iron

    Disc

    ductile ironl

    Seal ring

    EPDM/NBR

    Stem

    20Cr13

    Spring

    SS304

    Screen

    SS304

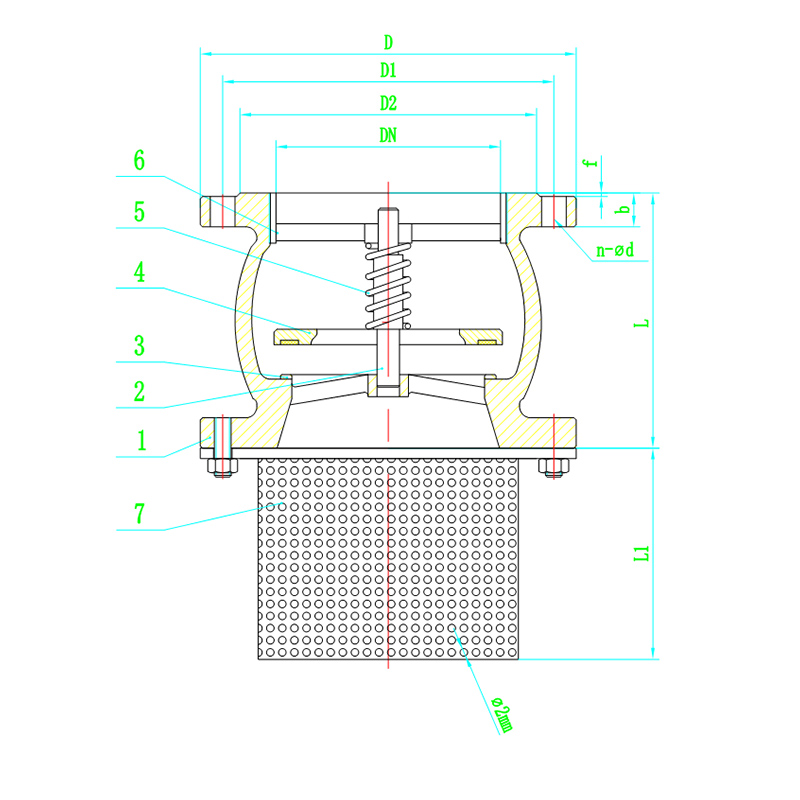

    Foot valve6

    It is widely used in purification equipment, petroleum, chemical industry, metallurgy,
    electric power, light textile and other production processes in the production process
    adjustment system. It is to control the unidirectional flow of the medium in the pipeline and
    prevent the medium from flowing back.It is a kind of energy-saving valve, which is generally
    installed at the bottom end of the underwater suction pipe of the water pump. It restricts the
    liquid in the water pump pipe to return to the water source, and plays a function of only
    entering and not leaving. There are many water inlets and ribs on the valve cover, which play
    a role. It is not easy to be blocked, and it is mainly used in pumping pipelines. The role of
    water channels and supports. The caliber has single, double, and multi-lobe types. There are
    flange connections and threaded connections.

    Motorized Butterfly valve

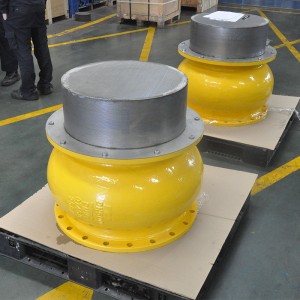

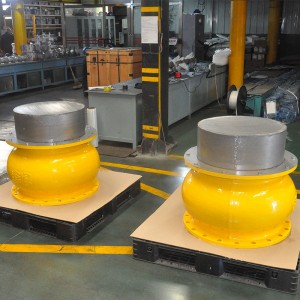

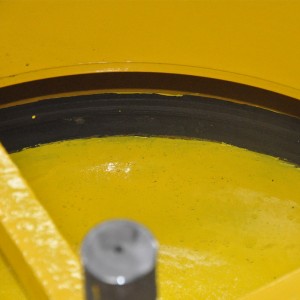

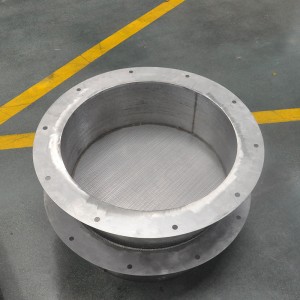

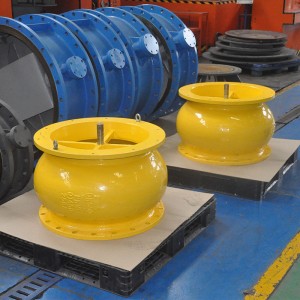

    Foot valve Foot valve1 Foot valve2 Foot valve3 Foot valve4 Foot valve5
