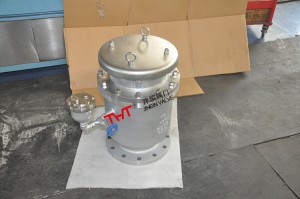

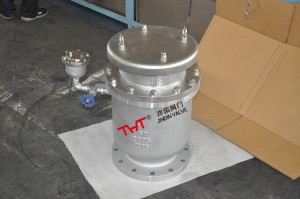

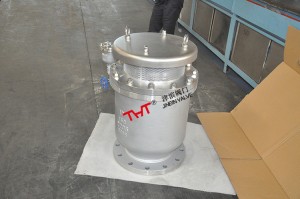

duplex steel dual orifice high speed compound air release valve
duplex steel dual orifice high speed compound air release valve
The high speed compound air release valve prevents the floating ball from being blown up in the high speed airflow and plugging the exhaust port, resulting in the failure of the exhaust valve. In order to prevent the valve mouth blocked, the traditional high-speed intake and exhaust valve in the entrance of the installation of barrels, so that the valve structure becomes complex.
|
Nominal Pressure |
150lb |
|
Testing Pressure |
Shell: 1.5 times rated pressure, Seat: 1.1 times rated pressure. |
|
Working Temperature |
≤80℃ |
|
Suitable Media |
water |
| Parts | Materials |
| Body | Duplex steel |
| Ball | Duplex steel |
| Sealing | EPDM, NBR |
| Gasket | PTFE |
Tianjin Tanggu Jinbin Valve Co., Ltd. was founded in 2004, with registered capital of 113 million yuan, 156 employees, 28 sales agents of China,covering an area of 20,000 square meters in total, and 15,100 square meters for factories and offices.It is a valve manufacturer engaged in professional R&D, production and sales,a joint-stock enterprise integrating science, industry and trade.
The company now has 3.5m vertical lathe, 2000mm * 4000mm boring and milling machine and other large processing equipment, multi-functional valve performance testing device and a series of perfect testing equipment
