Short Description:

Double Flange Butterfly Valve Size: 2”-48” / 40mm – 1200 mm Design standard: API 609, BS EN 593, GB T12238. Face-to-Face dimension: API 609, BS 5155, ISO 5752. Flange Drilling: ANSI B 16.1, BS4504, DIN PN 10 / PN 16, JIS 5K, 10K, 16K. Test: API 598. Material:material could DI, WCB, SS; flange could be EN1092/DIN/BS PN10/16  ANSI125/150LB; sealing could be NBR EPDM PTFE metal etc   Working Pressure 10 bar / 16 bar Testing Pressure Shell: 1.5 times rated pressure, Seat: 1.1 times...


Email WhatsApp

Product Detail

Product Tags

Related Video

Feedback (2)

It adheres on the tenet "Honest, industrious, enterprising, innovative" to develop new items frequently. It regards buyers, success as its very own success. Let us produce prosperous future hand in hand for Manual Slide Gate Valve , Open Cross Sliding Type Goggle Valve , Wide Range Butterfly Valve , It is our great honor to meet your demands.We sincerely hope we can cooperate with you in the near future.
factory low price High Pressure Relief Valves - ductile iron butterfly valve-double flange valve – Jinbin Valve Detail:

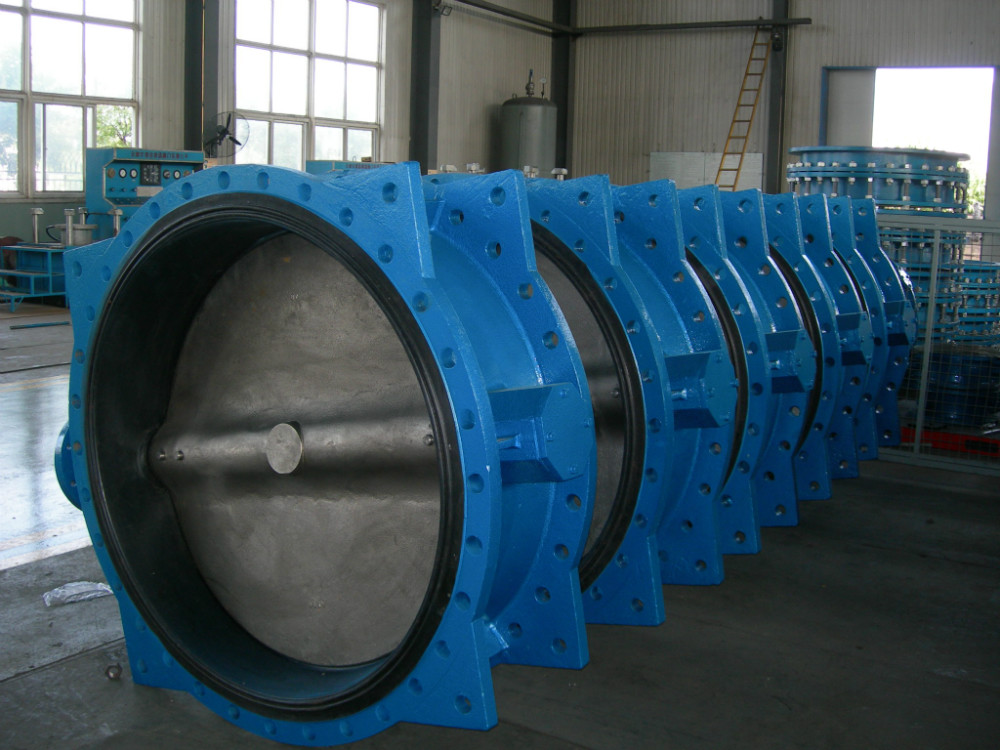

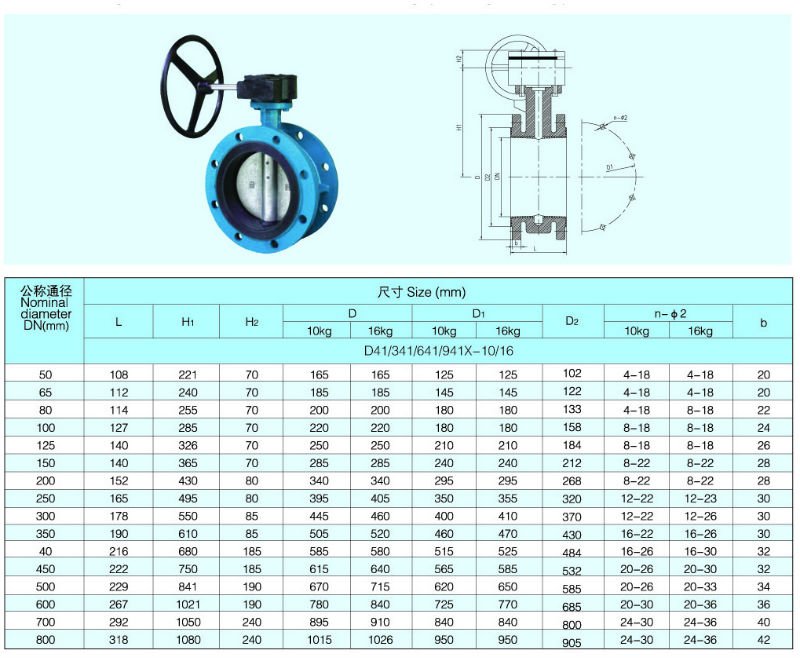

Double Flange Butterfly Valve

ductile iron butterfly valve-double flange valve

Size: 2”-48” / 40mm – 1200 mm

Design standard: API 609, BS EN 593, GB T12238.

Face-to-Face dimension: API 609, BS 5155, ISO 5752.

Flange Drilling: ANSI B 16.1, BS4504, DIN PN 10 / PN 16, JIS 5K, 10K, 16K.

Test: API 598.

Material:material could DI, WCB, SS; flange could be EN1092/DIN/BS PN10/16  ANSI125/150LB; sealing could be NBR EPDM PTFE metal etc

ductile iron butterfly valve-double flange valve

Working Pressure

10 bar / 16 bar

Testing Pressure

Shell: 1.5 times rated pressure,

Seat: 1.1 times rated pressure.

Working Temperature

-10°C to 80°C (NBR)

-10°C to 120°C (EPDM)

Suitable Media

Water, Oil and gas.

ductile iron butterfly valve-double flange valve

Parts

Materials

Body

Cast iron, ductile iron, carbon steel

Disc

Nickel ductile iron / Al bronze / Stainless steel

Seat

EPDM / NBR / VITON / PTFE

Stem

Stainless steel / Carbon steel

Bushing

PTFE

“O” ring

PTFE

Worm gearbox

Cast iron / Ductile iron

ductile iron butterfly valve-double flange valve

ductile iron butterfly valve-double flange valve

This kind of butterfly valve is widely utilized in foodstuff, pharmacy, chemical industry etc. and industrial environmental protection, water treatment, high building, water supply and drain tubing line open or close or adjusting medium.

ductile iron butterfly valve-double flange valve

Product detail pictures:

factory low price High Pressure Relief Valves - ductile iron butterfly valve-double flange valve – Jinbin Valve detail pictures

factory low price High Pressure Relief Valves - ductile iron butterfly valve-double flange valve – Jinbin Valve detail pictures

factory low price High Pressure Relief Valves - ductile iron butterfly valve-double flange valve – Jinbin Valve detail pictures
