Factory making Automatic Sluice Gate - Electric open type blind plate valve – Jinbin Valve Detail:

Electric open type blind plate valve

Electric Blind valve Slide damper closed type

Goggle valve contains body, disc, stem, left and right nut, srew, seat, equipment etc.

1. This kind of valve is made of right and left body, circulator sector gate, pin nut etc.

2. Rubber sealing is embeded in valve body and has the better seal. It is easy to change and has long term service.

Please fell free to contact us to get the technical drawing.

Pressure: 0.01-2.5 Mpa

Size: D400-DN2800

Media: Metallurgy, chemical, power etc.

Electric Blind valve Slide damper closed type

Norminal Pressure Mpa 0.05 0.10 0.15 0.25
Sealing Test 0.055 0.11 0.165 0.275
Sheel Test 0.075 0.15 0.225 0.375
Sealing Material NBR Silicone rubber Viton Metal
Working Temperature -20-100oC -20-200 oC -20-300 oC -20-45 oC
Suitable Media Air, Coal gas, dusty gas
Supply Voltage 380V AC

Electric Blind valve Slide damper closed type

Part Body/Disc Lead screw Nut Compensator Sealing
Material Carbon steel Alloy steel Mangain alloy Stainless steel Viton/NBR/Silicone rubber/Metal

Electric Blind valve Slide damper closed type

Electric Blind valve Slide damper closed typeElectric Blind valve Slide damper closed type



Electric Blind valve Slide damper closed type

It is widely used in the pipe system of metallurgical,chemical,electric power and other industries for the purpose of  cutting off or connecting.

Electric valve can allocated explosion-proof control cabinet to remote control. The longest distance can be 10 meters.

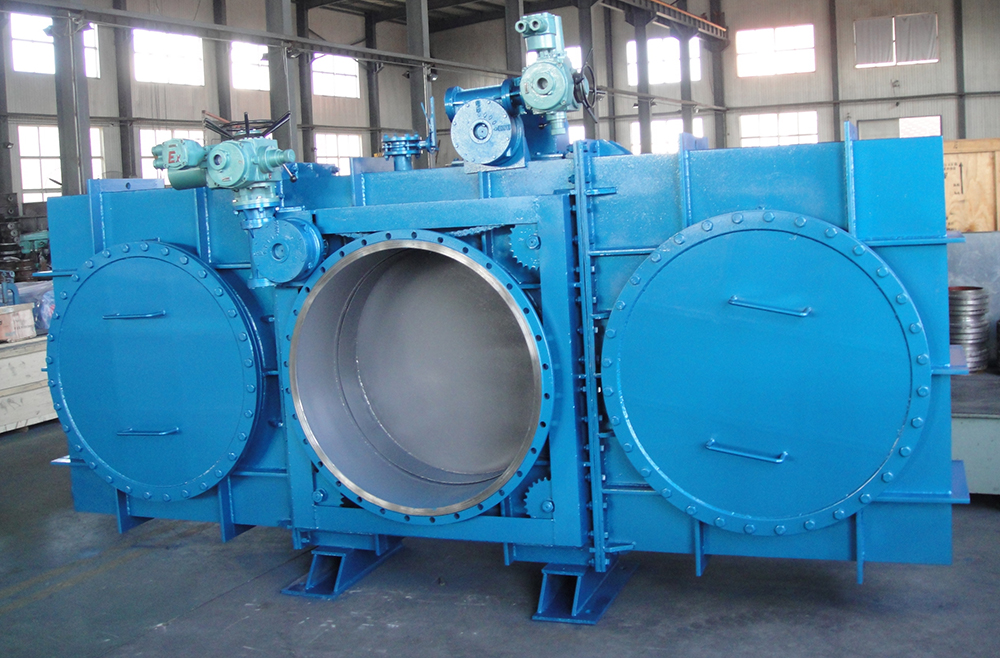

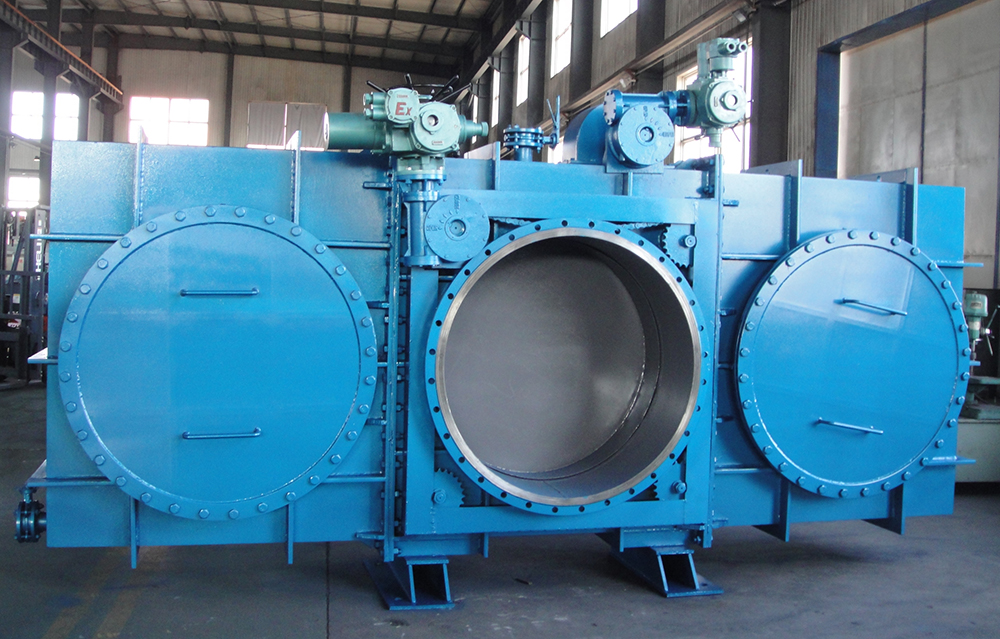

Product detail pictures:

Factory making Automatic Sluice Gate - Electric open type blind plate valve – Jinbin Valve detail pictures
