Factory wholesale Extended Stem Gate Valve - electric flanged Motorized butterfly valve – Jinbin Valve Detail:

Flange Butterfly Valve electric actuated

electric flanged Motorized butterfly valve

Size: 2”-48” / 40mm – 1200 mm

Design standard: API 609, BS EN 593.

Face-to-Face dimension: API 609, BS 5155, ISO 5752.

Flange Drilling: ANSI B 16.1, BS4504, DIN PN 10 / PN 16, JIS 5K, 10K, 16K.

Test: API 598.

electric flanged Motorized butterfly valve

Working Pressure

PN10 / PN16

Testing Pressure

Shell: 1.5 times rated pressure,

Seat: 1.1 times rated pressure.

Working Temperature

-10°C to 80°C (NBR)

-10°C to 120°C (EPDM)

Suitable Media

Water, Oil and gas.

electric flanged Motorized butterfly valve

Parts

Materials

Body

Cast iron, ductile iron, carbon steel, stainless steel

Disc

Nickel ductile iron / Al bronze / Stainless steel

Seat

EPDM / NBR / VITON / PTFE

Stem

Stainless steel / Carbon steel

Bushing

PTFE

“O” ring

PTFE

Worm gearbox

Cast iron / Ductile iron

The product is used for throttling or shutting off the flow of corrosive or non corrosive gas, liquids and semi liquid. It can be installed in any selected position in pipelines in the industries of petroleum processing, chemicals, food, medicine, textile, paper making, hydroelectricity engineering, building, water supply and sewage, metallurgy, energy engineering as well as light industry.

electric flanged Motorized butterfly valve

electric flanged Motorized butterfly valveelectric flanged Motorized butterfly valve

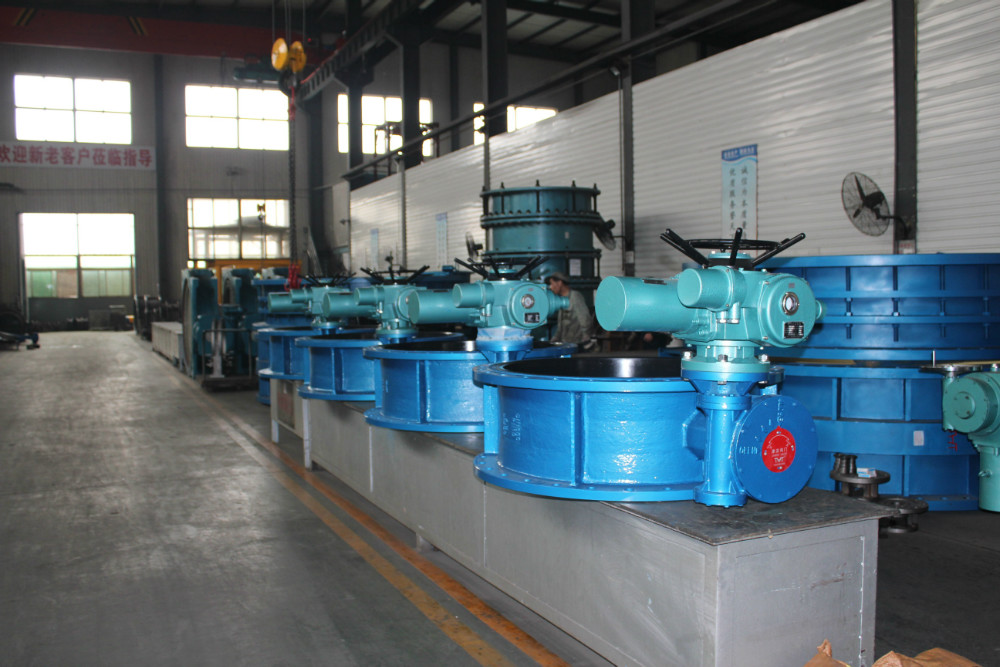

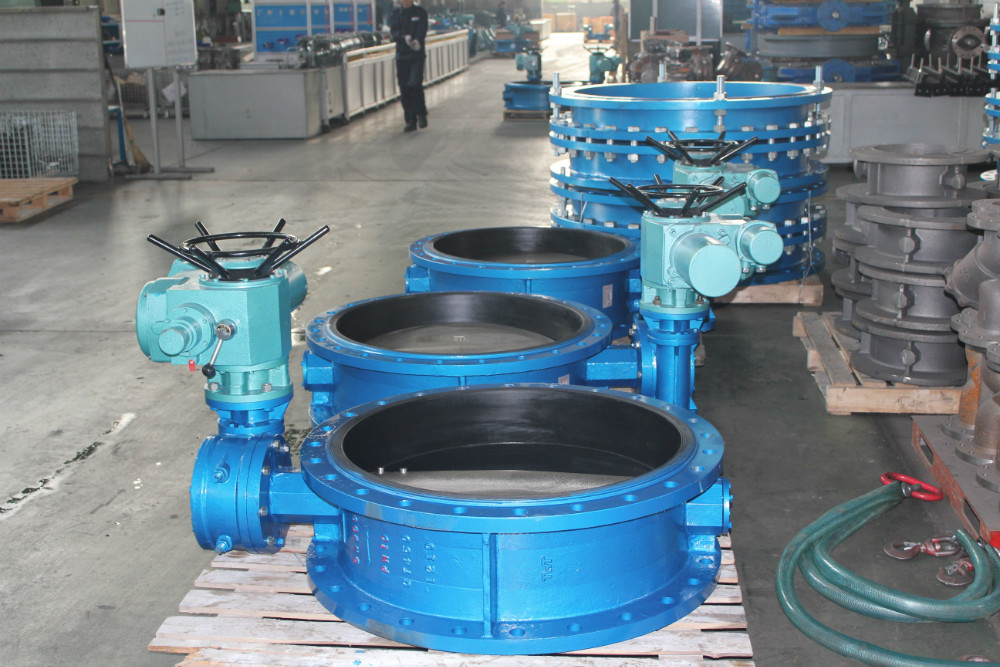

Product detail pictures:

Factory wholesale Extended Stem Gate Valve - electric flanged Motorized butterfly valve – Jinbin Valve detail pictures
