Low price for Ball Check Valve - FTFE Lined Lug butterfly valve – Jinbin Valve Detail:

Lug Type Butterfly Valve for acid or alkali etc corrosive fluid

FTFE Lined Lug butterfly valve

Size: 2”-12” / 50mm – 300 mm

Design standard: API 609, BS EN 593, MSS SP-67.

Face-to-Face dimension: API 609, ISO 5752, BS EN 558, BS 5155, MS SP-67.

Flange Drilling: ANSI B 16.1, BS EN 1092, DIN 2501 PN 10/16, BS 10 Table E, JIS B2212/2213 5K, 10K, 16K.

Test: API 598.

FTFE Lined Lug butterfly valve

Working Pressure

PN10 / PN16

Testing Pressure

Shell: 1.5 times rated pressure,

Seat: 1.1 times rated pressure.

Working Temperature

-10°C to 100°C

Suitable Media

Water, Oil and gas.

FTFE Lined Lug butterfly valve

Parts

Materials

Body

Cast iron, ductile iron, carbon steel, stainless steel

Disc

Nickel ductile iron / Al bronze / Stainless steel

Seat

PTFE

Stem

Stainless steel / Carbon steel

Bushing

PTFE

“O” ring

PTFE

Pin

Stainless steel

Key

Stainless steel

Technical data:

FTFE Lined Lug butterfly valve

FTFE Lined Lug butterfly valve

This kind of butterfly valve is widely utilized in foodstuff, pharmacy, chemical industry etc. and industrial environmental protection, water treatment, high building, water supply and draian tubing line open or close or adjusting medium.

Product detail pictures:

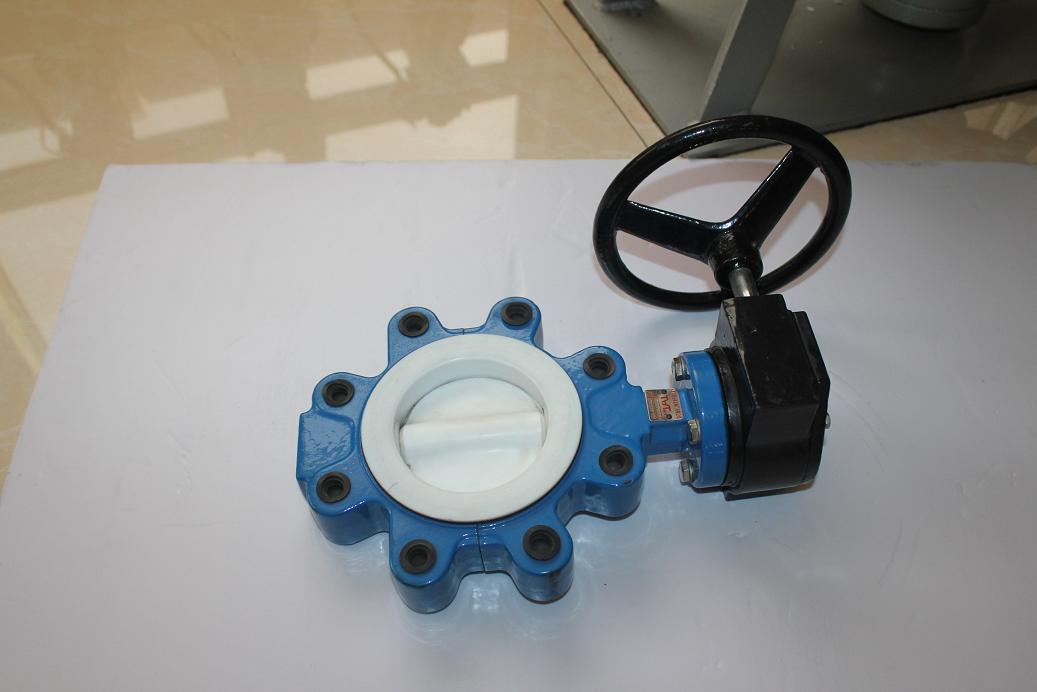

Low price for Ball Check Valve - FTFE Lined Lug butterfly valve – Jinbin Valve detail pictures
