Quality Inspection for Gate Valve Dn200 - Double offset Butterfly valve with rubber seat – Jinbin Valve Detail:

Resilient seat double Eccentric Flange Butterfly valve

Double offset Butterfly valve with rubber seat

Size: DN 100 – DN2800

Design standard: API 609, BS EN 593.

Face-to-Face dimension: API 609, ISO 5752, BS EN 558, BS 5155.

Flange Drilling: ANSI B 16.1, BS EN 1092, DIN 2501 PN 10/16, BS 10 Table E.

Test: API 598.

Double offset Butterfly valve with rubber seat

Working Pressure

PN10 / PN16

Testing Pressure

Shell: 1.5 times rated pressure,

Seat: 1.1 times rated pressure.

Working Temperature

-10°C to 80°C (NBR)

-10°C to 120°C (EPDM)

Suitable Media

Water, Oil and gas.

hell and seal tests for each valve is done and recorded before package to make sure the product quality. The test media is water in room conditions.

Double offset Butterfly valve with rubber seat

Double offset Butterfly valve with rubber seat

Parts

Materials

Body

Ductile iron, carbon steel, stainless steel

Disc

Nickel ductile iron / Al bronze / Stainless steel

Seat

EPDM / NBR / VITON / PTFE

Stem

Stainless steel / Carbon steel

Bushing

PTFE

“O” ring

PTFE

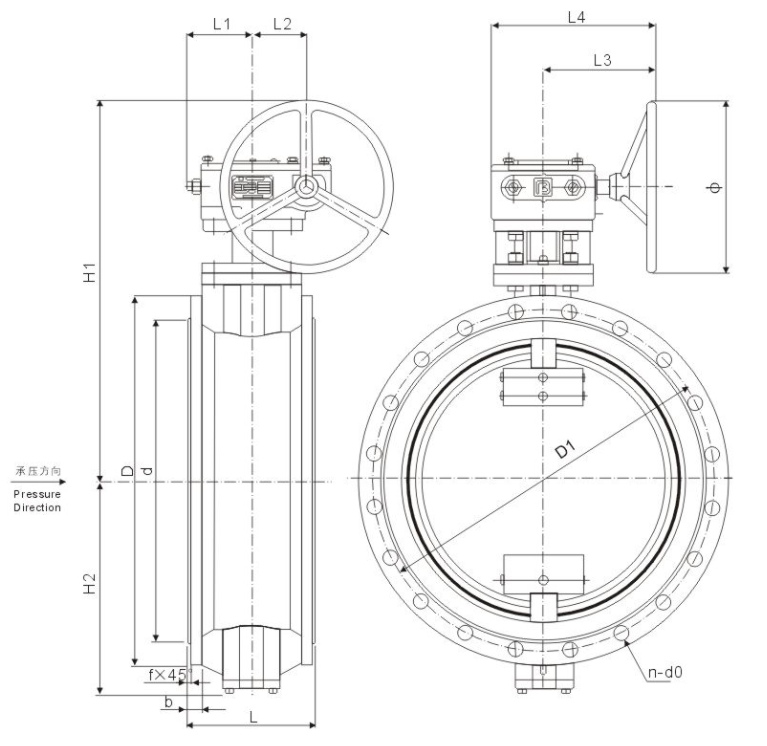

If need the drawing details, please feel free to contact.

Double offset Butterfly valve with rubber seat

The product is used for throttling or shutting off the flow of corrosive or non corrosive gased, liquids and semi liquid. It can be installed in any selected position in pipelines in the industries of petroleum processing, chemicals, food, medicine, textile, paper making, hydroelectricity engineering, building, water supply and sewage, metallurgy, energy engineering as well as light industry.
