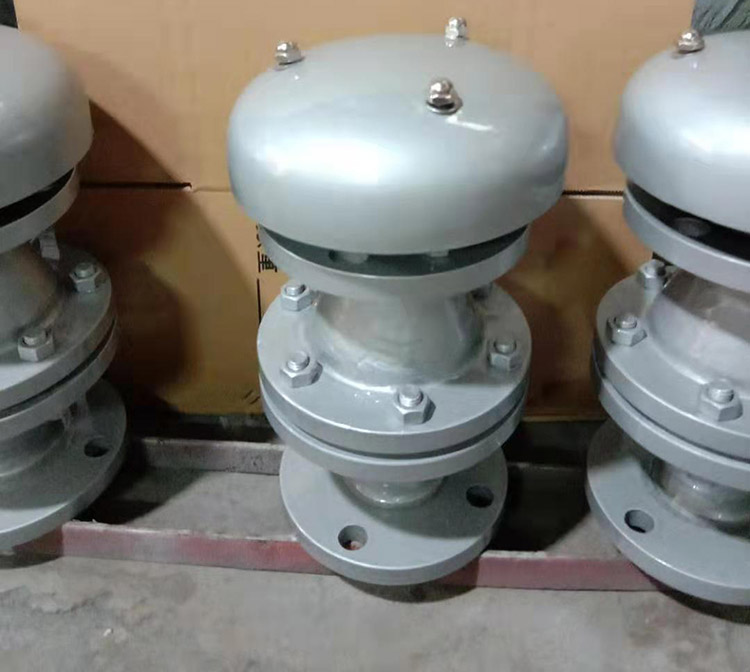

stainless steel flame arrestor
Stainless steel flame arrestor
Flame arrestor are safety devices used to prevent the spread of flammable gases and flammable liquid vapors. It is usually installed in a pipeline for conveying flammable gas, or a ventilated tank, and a device for preventing the propagation of flame (detonation or detonation), which is composed of a fire-resistant core, a flame arrester casing and an accessory.
Working Pressure |
PN10 PN16 PN25 |
Testing Pressure |
Shell: 1.5 times rated pressure, Seat: 1.1 times rated pressure. |
Working Temperature |
≤350℃ |
Suitable Media |
Gas |
Parts | Materials |
Body | WCB |
Fire Retardant Core | SS304 |
flange | WCB 150LB |
hat | WCB |
Flame arresters are also commonly used on pipes that transport flammable gases. If the flammable gas is ignited, the gas flame will propagate to the entire pipe network. In order to prevent this danger from happening, a flame arrester should also be used.
