100X Hydraulic float control valve for water level

Short Description:

Remote control float valve Size: DN 50 – DN 600 Flange drilling is suitable for BS EN1092-2 PN10/16. Epoxy fusion coating. Working Pressure 10 bar 16 bar Testing Pressure Shell: 15 bars; Seat: 11 bar. Shell: 24bars; Seat: 17.6 bar. Working Temperature 10°C to 120°C Suitable Media Water, oil & gas. The test media is water in room temperature. No. Part Material 1 Body Ductile iron 2 Bonnet Ductile iron 3 Seat Brass 4 ...


Product Detail

Product Tags

Remote control float valve

100X Hydraulic float control valve for water level

Size: DN 50 – DN 600

Flange drilling is suitable for BS EN1092-2 PN10/16.

Epoxy fusion coating.

100X Hydraulic float control valve for water level

Working Pressure

10 bar

16 bar

Testing Pressure

Shell: 15 bars; Seat: 11 bar.

Shell: 24bars; Seat: 17.6 bar.

Working Temperature

10°C to 120°C

Suitable Media

Water, oil & gas.

The test media is water in room temperature.

100X Hydraulic float control valve for water level

100X Hydraulic float control valve for water level

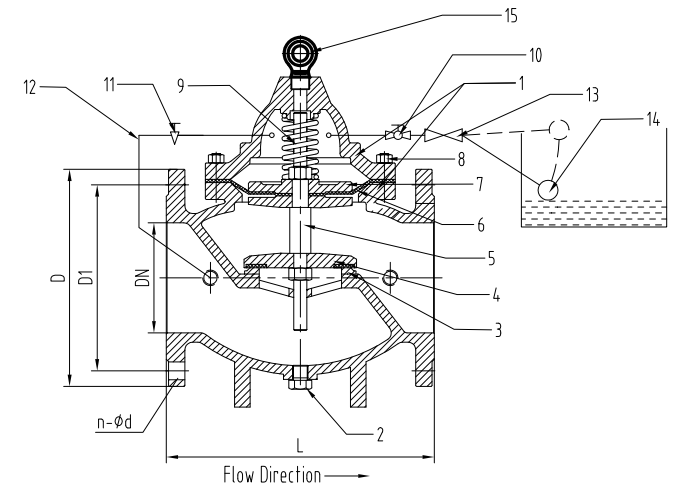

No.

Part

Material

1

Body

Ductile iron

2

Bonnet

Ductile iron

3

Seat

Brass

4

Wedge coating

EPDM / NBR

5

Disc

Ductile iron+NBR

6

Stem

(2 Cr13) /20 Cr13

7

Plug Nut

Brass

8

Pipe

Brass / Stainless steel

9

Ball/Needle/Pilot

Brass / Stainless steel

If need the drawing details, please feel free to contact.

Feature:

1. Work stable and reliable and big flow pass.

2.  Disc open quickly and close slowly without water hammer.

3. High precision reducing regulator with large range.

4. Sealing performance and long service life.

100X Hydraulic float control valve for water level

100X Hydraulic float control valve for water level

100X Hydraulic float control valve for water level

1. Recommend to install exhuast valve in pipe system to make sure the steady working.

2. Pressure of inlet should not less than 0.2Mpa. If it does, the performance will be worse. (Pressure tolerance of outlet will increase.)
