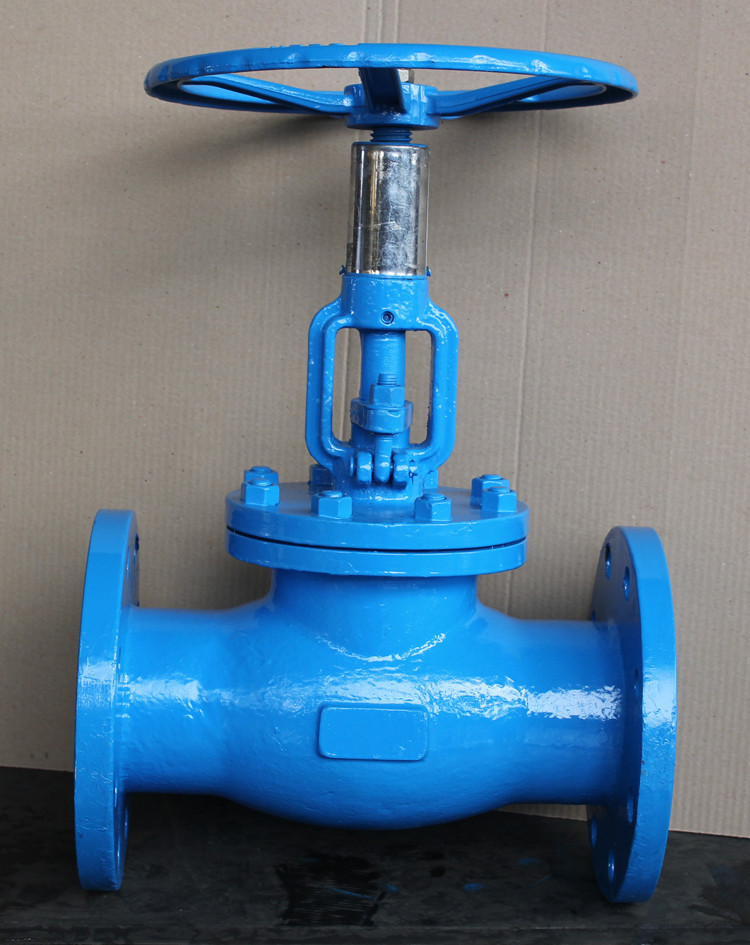

Balancing valve for flow pressure control

Balancing valve for flow

Size: DN 50 – DN 600

Flange drilling is suitable for BS EN1092-2 PN10/16.

Epoxy fusion coating.

Balancing valve for flow

Working Pressure

16 bar / 25 bar

Testing Pressure

24bars

Working Temperature

10°C to 90°C

Suitable Media

Water

Balancing valve for flow

No.

Part

Material

1

Body

Cast iron / Ductile iron

2

Bonnet

Cast iron / Ductile iron

3

Disc

Cast iron / Ductile iron

4

Packing

Graphite

Balancing valve for flow

Balancing valve for flow

Balancing valve for flow

This balancing valve is using the medium own pressure variation to maintain flow. It used for diifferential pressure control of double barrel heating system, to make sure the basic system, reduce the noise, blanced resistance and eliminate the imbalance of hot system and water power.
