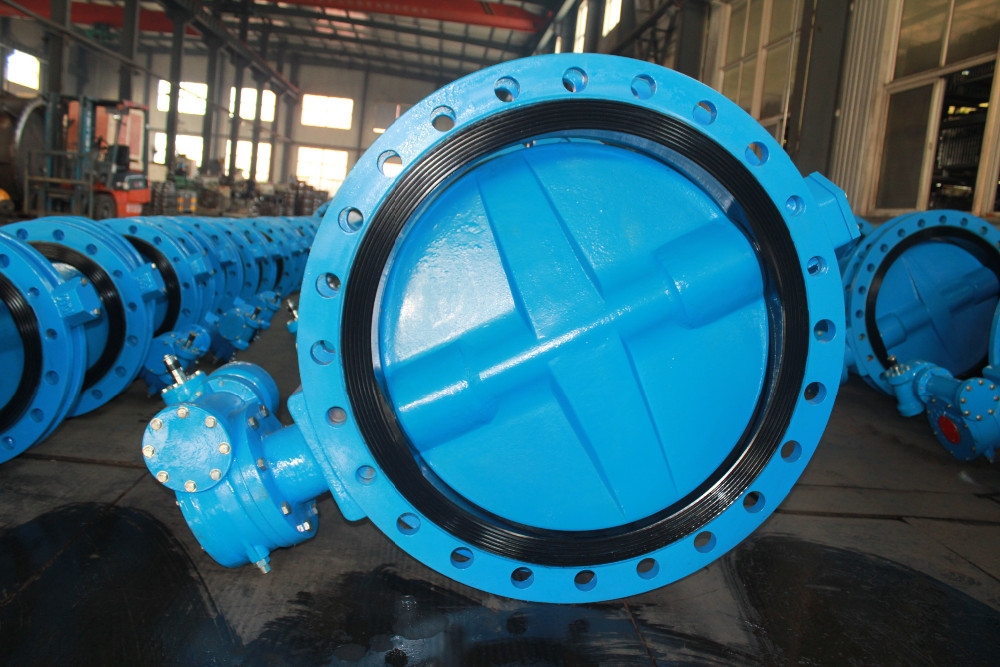

U type butterfly valve

Short Description:

U type butterfly valve rubber lining PN25 PN16 PN10   Pressure: PN25 PN16 PN10 Size: 2”-48” / 40mm – 1200 mm Design standard: API 609, BS EN 593, GB T12238. Face-to-Face dimension: API 609, BS 5155, ISO 5752. Flange Drilling: ANSI B 16.1, BS4504, DIN PN 10 / PN 16, JIS 5K, 10K, 16K. Test: API 598. Working Pressure 10 bar / 16 bar/25bar Testing Pressure Shell: 1.5 times rated pressure, Seat: 1.1 times rated pressure. Working Temperature -10°C to 80°C (NBR) -10°C to 120°...


  • FOB Price: US $10 - 9,999 / Piece
  • Min.Order Quantity: 1 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Product Detail

    Product Tags

    U type butterfly valve rubber lining PN25 PN16 PN10



    Pressure: PN25 PN16 PN10

    Size: 2”-48” / 40mm – 1200 mm

    Design standard: API 609, BS EN 593, GB T12238.

    Face-to-Face dimension: API 609, BS 5155, ISO 5752.

    Flange Drilling: ANSI B 16.1, BS4504, DIN PN 10 / PN 16, JIS 5K, 10K, 16K.

    Test: API 598.

    U type butterfly valve

    Working Pressure

    10 bar / 16 bar/25bar

    Testing Pressure

    Shell: 1.5 times rated pressure,

    Seat: 1.1 times rated pressure.

    Working Temperature

    -10°C to 80°C (NBR)

    -10°C to 120°C (EPDM)

    Suitable Media

    Water, Oil and gas.

    U type butterfly valve

    Parts

    Materials

    Body

    Cast iron, ductile iron, carbon steel

    Disc

    Nickel ductile iron / Al bronze / Stainless steel

    Seat

    EPDM / NBR / VITON / PTFE

    Stem

    Stainless steel / Carbon steel

    Bushing

    PTFE

    “O” ring

    PTFE

    Worm gearbox

    Cast iron / Ductile iron

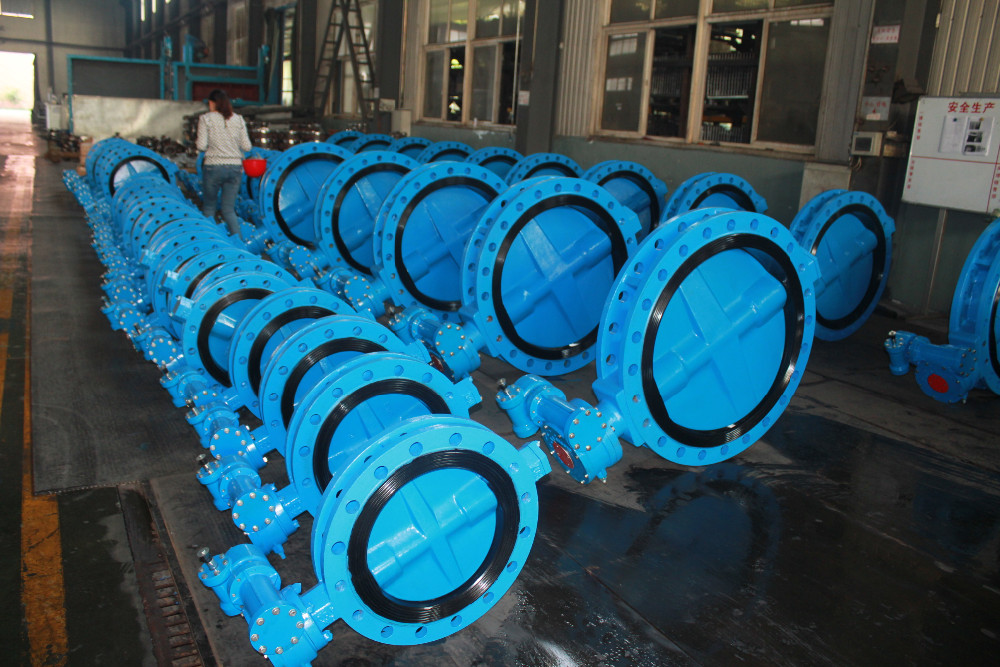

    U type butterfly valve

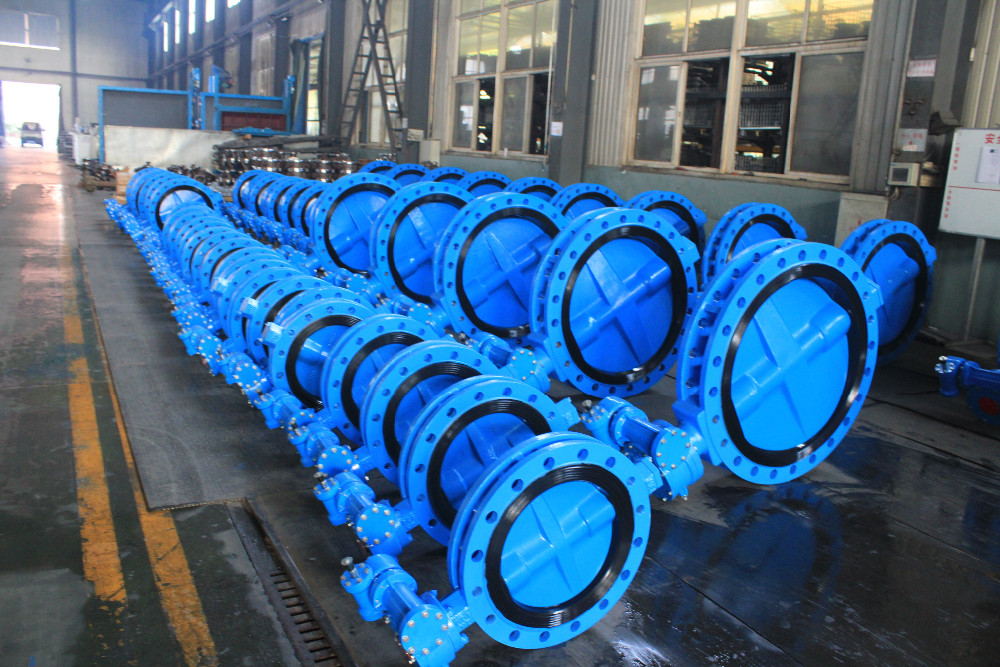

    U type butterfly valve

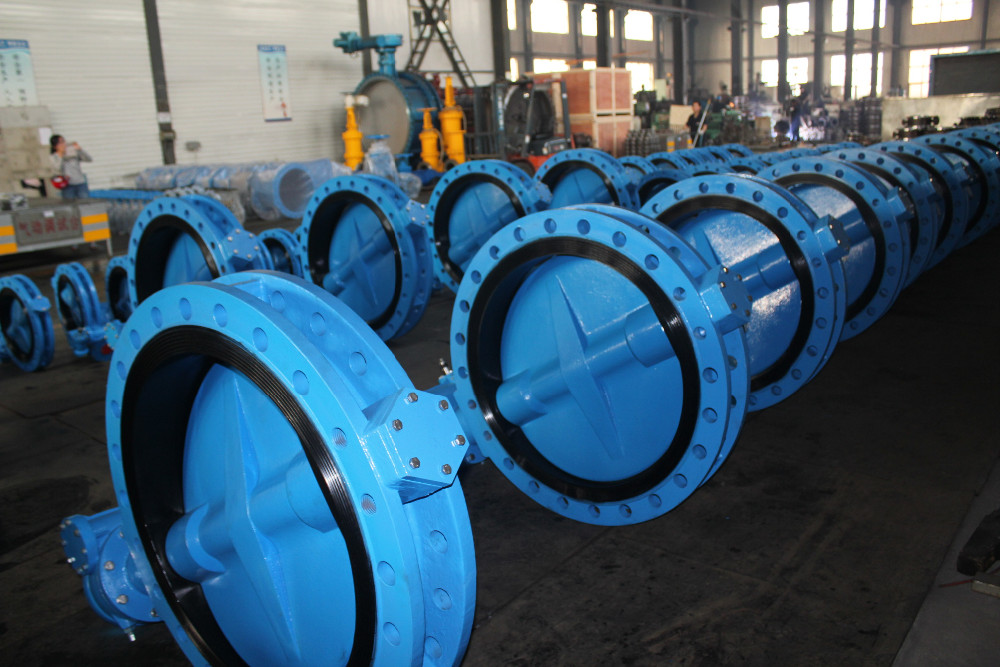

    U type butterfly valveU type butterfly valveU type butterfly valve
