Bi-Directional seal knife gate valve high performance industrial valve for water treatment wastewater management

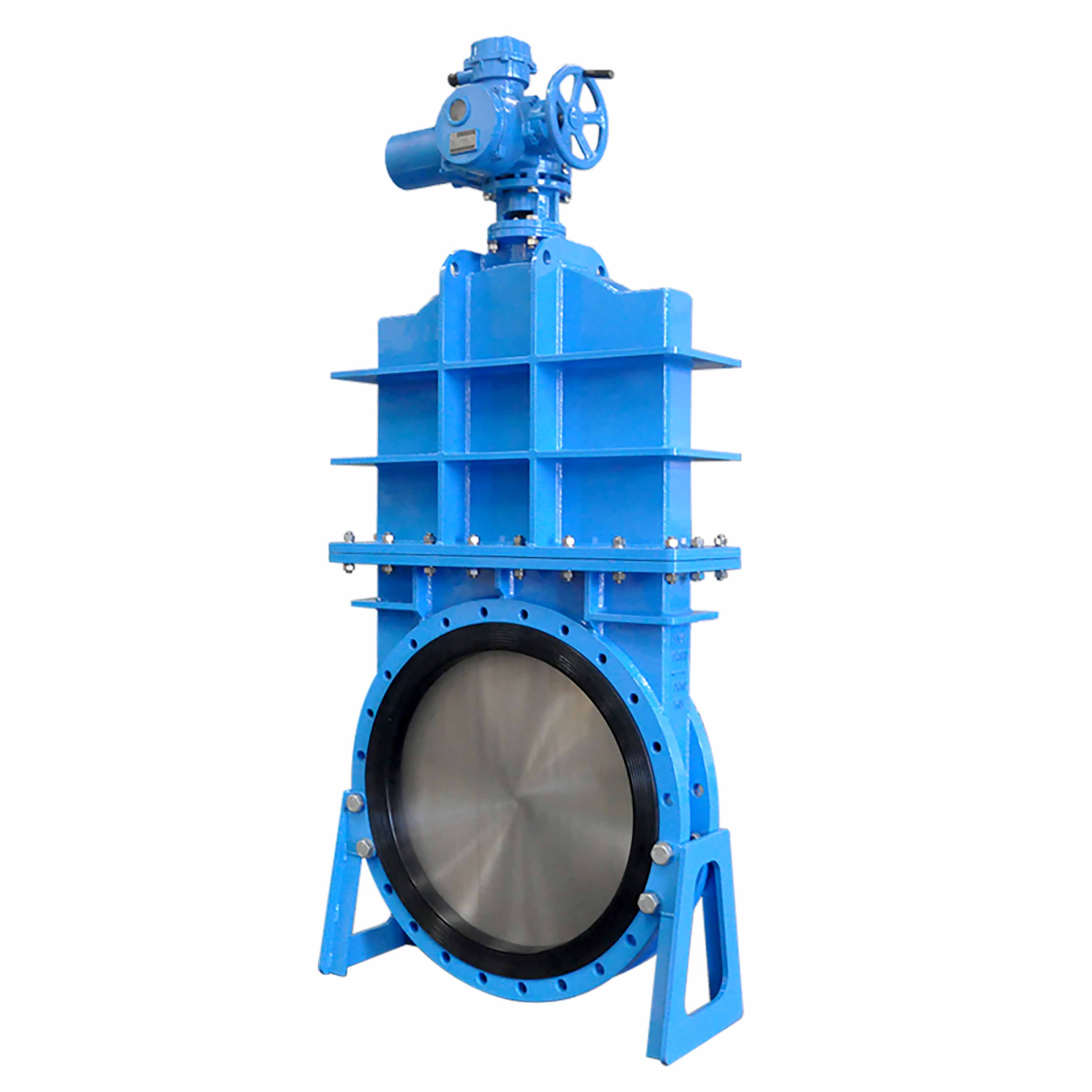

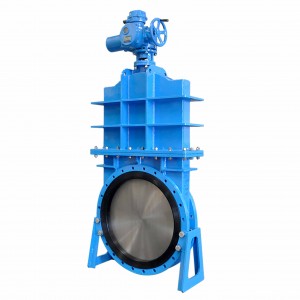

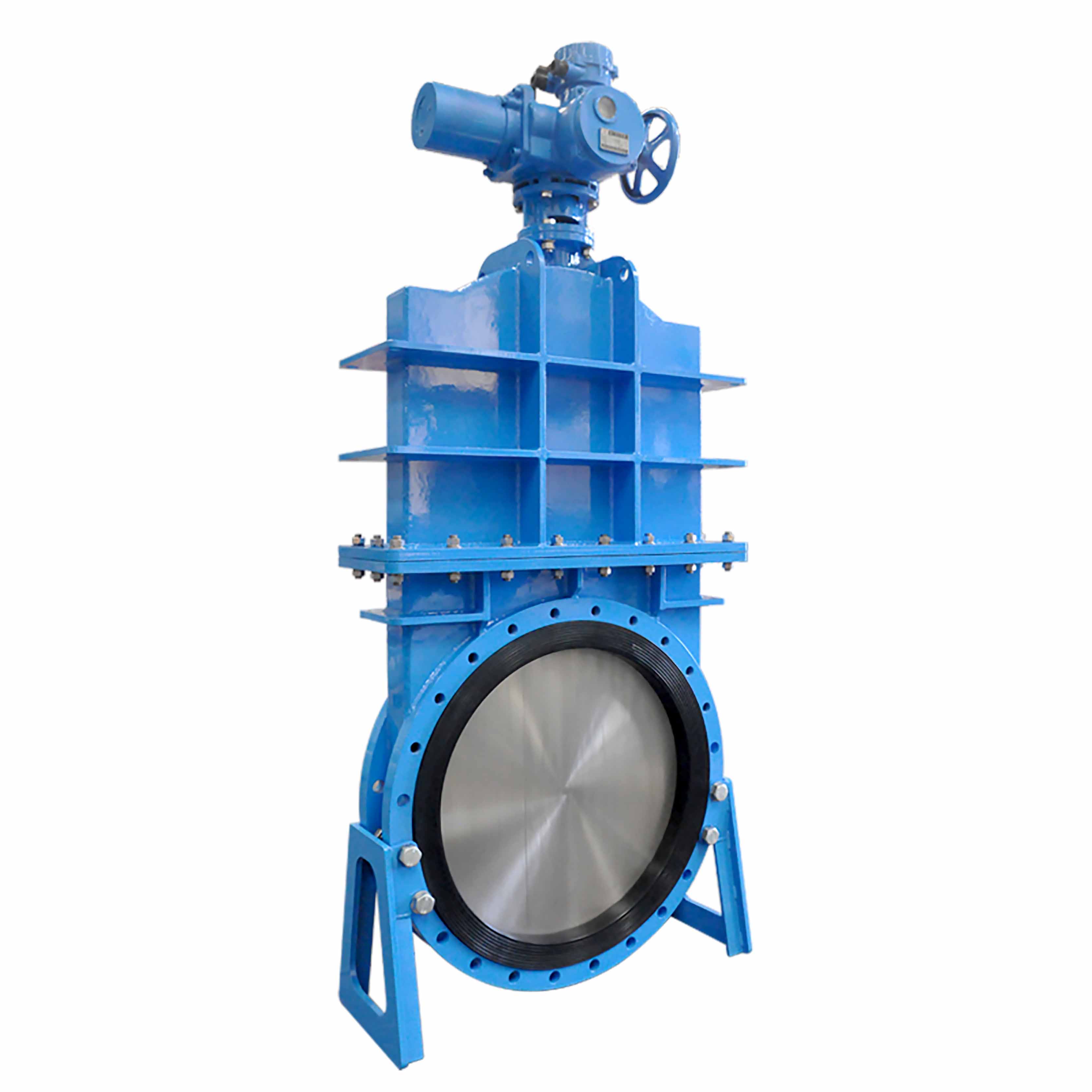

Bi-Directional seal knife gate valve high performance industrial valve for water treatment wastewater management Featured Image
  • Bi-Directional seal knife gate valve high performance industrial valve for water treatment wastewater management
  • Bi-Directional seal knife gate valve high performance industrial valve for water treatment wastewater management
  • Bi-Directional seal knife gate valve high performance industrial valve for water treatment wastewater management

Short Description:

Bi-DIRECTIONAL SEAL KNIFE GATE VALVE Suitable for tap water, sewage, water treatment Bi-directional sealing, improve sealing Easy to replace, long service life Achieve zero leaks! Bi-Directional seal knife gate valve / double sealing knife gate valve is mainly used in waterworks, sewage pipes, municipal drainage projects, fire pipeline projects, and industrial pipelines on the minor non-corrosive liquid, gas, used for media and prevent media backflow protection devices. ◆Innovative Se...


  • FOB Price: US $10 - 9,999 / Piece
  • Min.Order Quantity: 1 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
    • Email WhatsApp

    Product Detail

    Product Tags

    Bi-DIRECTIONAL

    SEAL KNIFE GATE VALVE

    Suitable for tap water, sewage, water treatment

    Bi-directional sealing, improve sealing

    Easy to replace, long service life

    Achieve zero leaks!

    Support customization

    3

    Bi-Directional seal knife gate valve / double sealing knife gate valve is mainly used in waterworks, sewage pipes, municipal drainage projects, fire pipeline projects, and industrial pipelines on the minor non-corrosive liquid, gas, used for media and prevent media backflow protection devices.

    -Product Display-

    Knife gate valve manufacturers & 20 years of production experience

    -Features-

    Electric knife gate valve factory & Strong technical support

    Bi-Directional seal knife gate valve1
    Bi-Directional seal knife gate valve3
    Bi-Directional seal knife gate valve2

    ◆Innovative Sealing Design
    Upgraded from traditional grooved rubber strips, the valve body now uses elastic rubber encapsulation instead of groove-mounted seals. This eliminates the difficulty of replacing worn-out seals by integrating the seal into the valve body structure.
    ◆Field-Replaceable Sealing System
    When seals wear out, on-site replacement is possible with tool-free installation/dismantling design. Easy maintenance minimizes production downtime and ensures quick turnaround.
    ◆Bi-Directional Double-Layer Sealing

    Upgraded from single-direction seals to dual bi-directional double-layer sealing strips, enabling:
    —Full pressure resistance in both flow directions
    —Zero leakage in reverse flow conditions
    —30% higher sealing durability than traditional single-seal designs

    ◆Compact Design & Stable Operation Across Pressures
    Small installation space, low working pressure, high pressure ram no vibration, no noise.
    ◆Straight-Through Channel with Minimal Flow Resistance



    Main performance specifications

    Nominal diameter DN200-2000
    Nominal Pressure 0.4~1.0
    Test Seal PNx1.1
    pressure Strength PNx1.5
    Working Pressure(MPa) ≤1.0xPN
    Medium temperature(°C) -23~100°C
    Applicable medium Water

    Main parts materials

    No. Name Material Quantity
    1 Body Ductile Iron 1
    2 Bolt Stainless steel 6-20
    3 Closures Ductile Iron 1
    4 Gate 304Stainless steel  1
    5 Shaft nut Copper 1
    6 Axis 2Cr13 1
    7 Seal NBR 1
    8 Bolts and nuts 20#Galvanization 20
    9 Body superstructure WCB Ductile Iron 1
    10 Packing Flexible graphite 1
    11 Gland WCB Ductile Iron 1
    12 Bracket WCB Ductile Iron 1
    13 Transmission bearings 25# 1
    14 Bearing gland WCB Ductile Iron 2
    15 Connecting bolts 304Stainless steel 1
    16 Electric devices Configuration according to site requirements 1

    Standard sizes

    DN L D D1 D2 Z-φN H H1 weight
    200 164 340 295 265 8-22 850 472 110
    250 164 395 350 320 12-22 930 680 130
    300 164 445 400 370 12-22 1010 877 162
    400 170 565 515 482 16-26 1187 927 274
    500 180 670 620 585 20-26 1450 1030 408
    600 180 780 725 685 20-30 1716 1080 535
    800 188 1015 950 905 24-34 2185 1432 833
    1000 198 1230 1160 1110 28-36 2705 1765 1460
    1200 218 1455 1380 1330 32-39 3180 2093 2259
    1600 254 1915 1820 1760 40-48 4037 2720 3400
    1800 276 2115 2020 1960 44-48 4550 3052 4500
    2000 320 2325 2230 2150 48-48 5010 3384 5700

    Drive mode

    Manual

    Electric

    Pneumatic

    Hydraulic

    Bevel gear

    Pneumatic and hydraulic

    Other drive

    Big size knife gate valve，accessibility control with remote control, remote location can also display and remote centralized control in accordance with the requirements of the user.
