DIN3352 F4 NRS resilient seated iron gate valve for water

Short Description:

DIN3352 F4 resilient seated non rising stem iron gate valve  THT has been in the business ofmanufacturing and supplying resilient gate valve compliant withDIN standard more than 10 years. THT resilient gate valves are non-rising stem(NRS) design, where the gate traverses a 416 stainless steel spindle. They aresuitable for use in either above ground or a below ground applications and canbe installed either in a horizontal or vertical aspect. They provide long term,trouble free performance cou...


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Product Detail

    Product Tags

    DIN3352 F4 resilient seated non rising stem iron gate valve

    THT has been in the business ofmanufacturing and supplying resilient gate valve compliant withDIN standard more than 10 years. THT resilient gate valves are non-rising stem(NRS) design, where the gate traverses a 416 stainless steel spindle. They aresuitable for use in either above ground or a below ground applications and canbe installed either in a horizontal or vertical aspect. They provide long term,trouble free performance coupled with minimal maintenance obligations onceinstalled. They are proven performers with a solid reputation.

    Jinbin valve’s Series Z45X ductile iron resilient wedge gate valves are suitable for use in potable water, sewage and fire protection systems. These valves have a rated working pressure of 25 bar with zero leakage. The waterway is clear and unobstructed.

    DIN3352 F4 NRS resilient seated iron gate valve for water

    Specification:

    Nominal diameter: 2″-48″/DN50–DN1200

    Working pressure: PN10/16Bar

    Standard:   DIN 3352

    Face-to-face:      DIN 3202 F4

    Connection:   DIN2501/ DIN2532/DIN2533

    Tightness check:  ISO 5208   EN12226-2

    Epoxy fusion coating.

    DIN3352 F4 NRS resilient seated iron gate valve for water

    Working Pressure

    PN10 / PN16

    Testing Pressure

    Shell: 1.5 times rated pressure,

    Seat: 1.1 times rated pressure.

    Working Temperature

    -10°C to 80°C (NBR)

    -10°C to 120°C (EPDM)

    Suitable Media

    Water, Oil and gas.

    DIN3352 F4 NRS resilient seated iron gate valve for water

    DIN3352 F4 resilient seated non rising stem iron gate valve

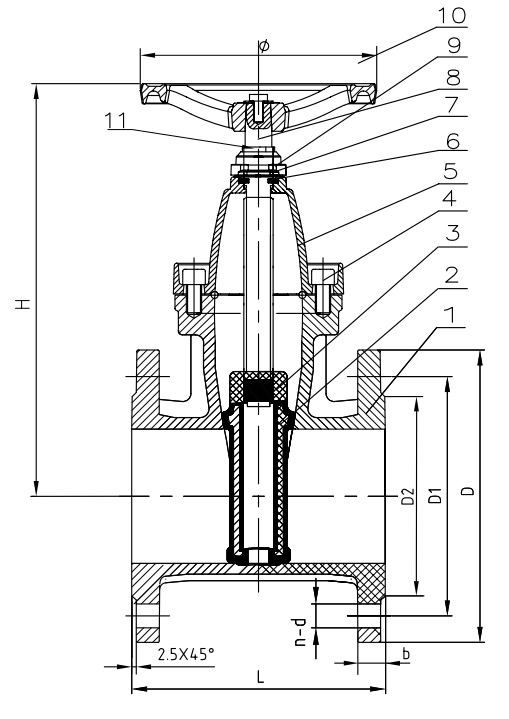

    No. Part Material
    1 Body Ductile iron GGG40/GGG50
    2 Wedge Ductile iron + EPDM / NBR
    3 Wedge lock nut Brass
    4 Bolt Carbon Steel
    5 Bonnet Ductile iron GGG40/GGG50
    6 Open ring Brass
    7 O Ring EPDM
    8 Shaft Stainless steel
    9 Gland flange Ductile iron
    10 Handwheel Ductile iron
    11 Dust cover EPDM

    DIN3352 F4 resilient seated non rising stem iron gate valve

    DIN3352 F4 resilient seated non rising stem iron gate valve

    DIN3352 F4 NRS resilient seated iron gate valve for water

    DIN3352 F4 NRS resilient seated iron gate valve for water
