Goggle valve open type Blind valve

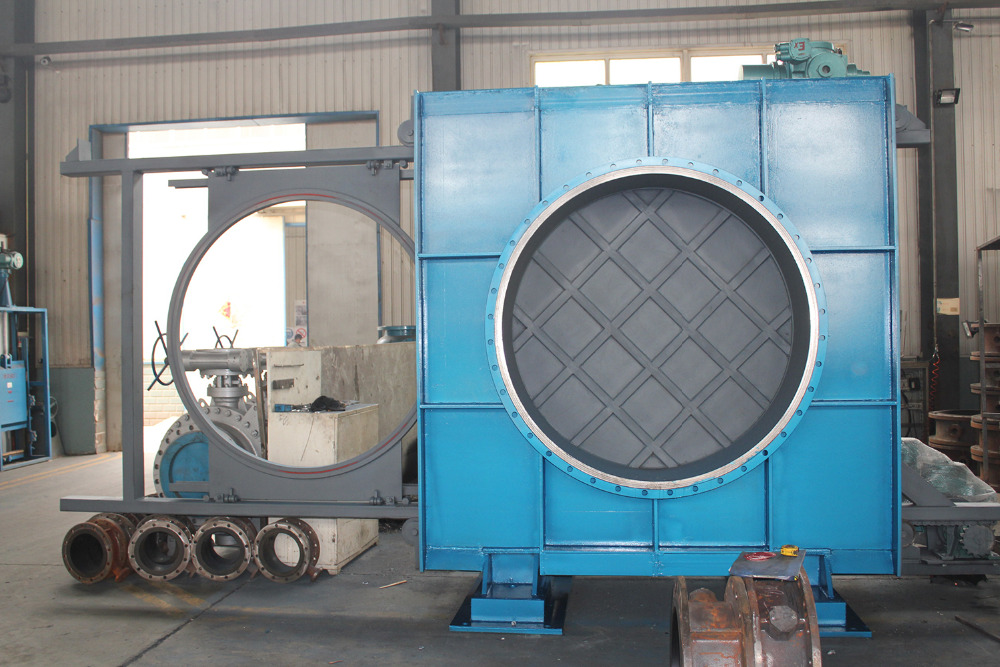

Open type Goggle Valve
Goggle valve contains body, disc, stem, left and right nut, srew, seat, equipment etc.
1. This kind of valve is made of right and left body, circulator sector gate, pin nut etc.
2. Rubber sealing is embeded in valve body and has the better seal. It is easy to change and has long term service.
Pressure: 0.01-2.5 Mpa
Size: D400-DN2800
Media: Metallurgy, chemical, power etc.
| Norminal Pressure Mpa | 0.05 | 0.10 | 0.15 | 0.25 |
| Sealing Test | 0.055 | 0.11 | 0.165 | 0.275 |
| Sheel Test | 0.075 | 0.15 | 0.225 | 0.375 |
| Sealing Material | NBR | Silicone rubber | Viton | Metal |
| Working Temperature | -20-100oC | -20-200 oC | -20-300 oC | -20-45 oC |
| Suitable Media | Air, Coal gas, dusty gas | |||
| Supply Voltage | 380V AC | |||
| Part | Body/Disc | Lead screw | Nut | Compensator | Sealing |
| Material | Carbon steel | Alloy steel | Mangain alloy | Stainless steel | Viton/NBR/Silicone rubber/Metal |
It is widely used in the pipe system of metallurgical,chemical,electric power and other industries for the purpose of cutting off or connecting.
Electric valve can allocated explosion-proof control cabinet to remote control. The longest distance can be 10 meters.
